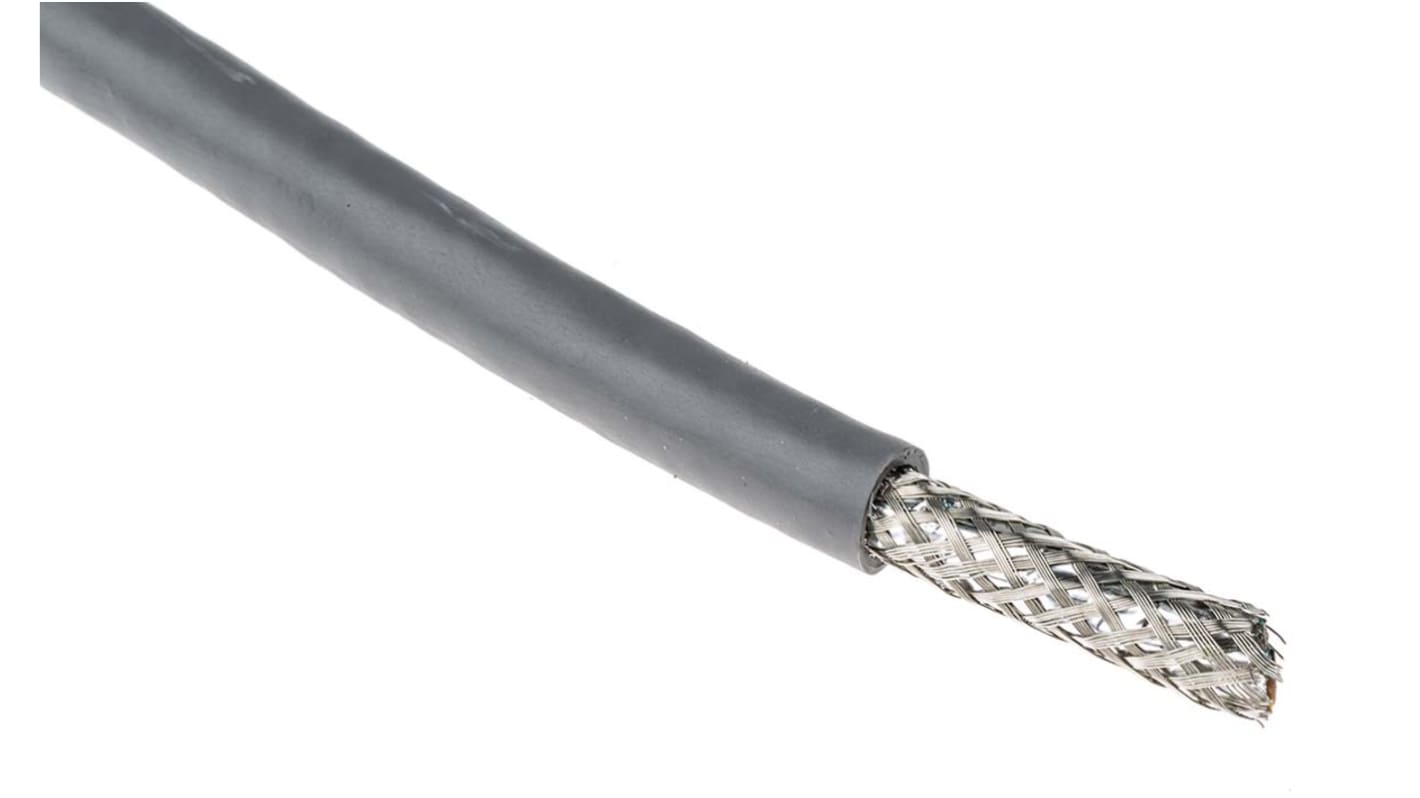

Alpha Wire Alpha Essentials Communication & Control Control Cable, 8 Cores, 0.35 mm², Screened, 30m, Grey PVC Sheath,

View all Control Cable

Subtotal (1 reel of 30 metres)*

£207.83

(exc. VAT)

£249.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 4 unit(s) shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£207.83£6.928

*price indicative

RS Stock No.:
828-2516
Mfr. Part No.:
6344 SL005
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Series

Alpha Essentials Communication & Control

Number of Cores

8

Cross Sectional Area

0.35 mm²

American Wire Gauge

22 AWG

Conductor Material

Tinned Copper

Sheath Material

PVC

Sheath Colour

Grey

Screen Type

Braid, Foil

Screened/Unscreened

Screened

Outer Diameter

6.5mm

Length

30m

Minimum Bend Radius

10 x Diameter

Voltage Rating

300 V

Standards Met

CE, CSA, UL

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-20°C

Core Strands

7/0.25 mm

Drain Wire

Yes

Insulation Material

PVC

Conductor Resistance

16.4 Ω/1000ft

Belden Alpha Wire Control Cable, 30m Length, 8 Cores - Alpha Essentials Series - 6344 SL005


Use this 8-core control cable from Belden's Alpha Wire range for reliable signal transmission in your industrial automation applications. The tinned copper conductors are corrosion-resistant and highly conductive, so they deliver a steady connection. They're protected by a PVC jacket and insulation for protection against impact and wear. As this cable's foil and braid screening minimises interference, you can achieve noiseless signal transmission.

Features & Benefits


• Length of 30m for installation in large spaces
• Wide operating temperature range between -20°C and +80°C for use in demanding environments
• Conductors are colour-coded to simplify connections

Applications


• Industrial control and automation
• Robotics
• Security systems
• Instrumentation and measurement

Is this control cable flexible?


Yes, a bend radius of 10 times the diameter means this control cable is flexible enough to route through conduits and around machines without cracking or fraying.
