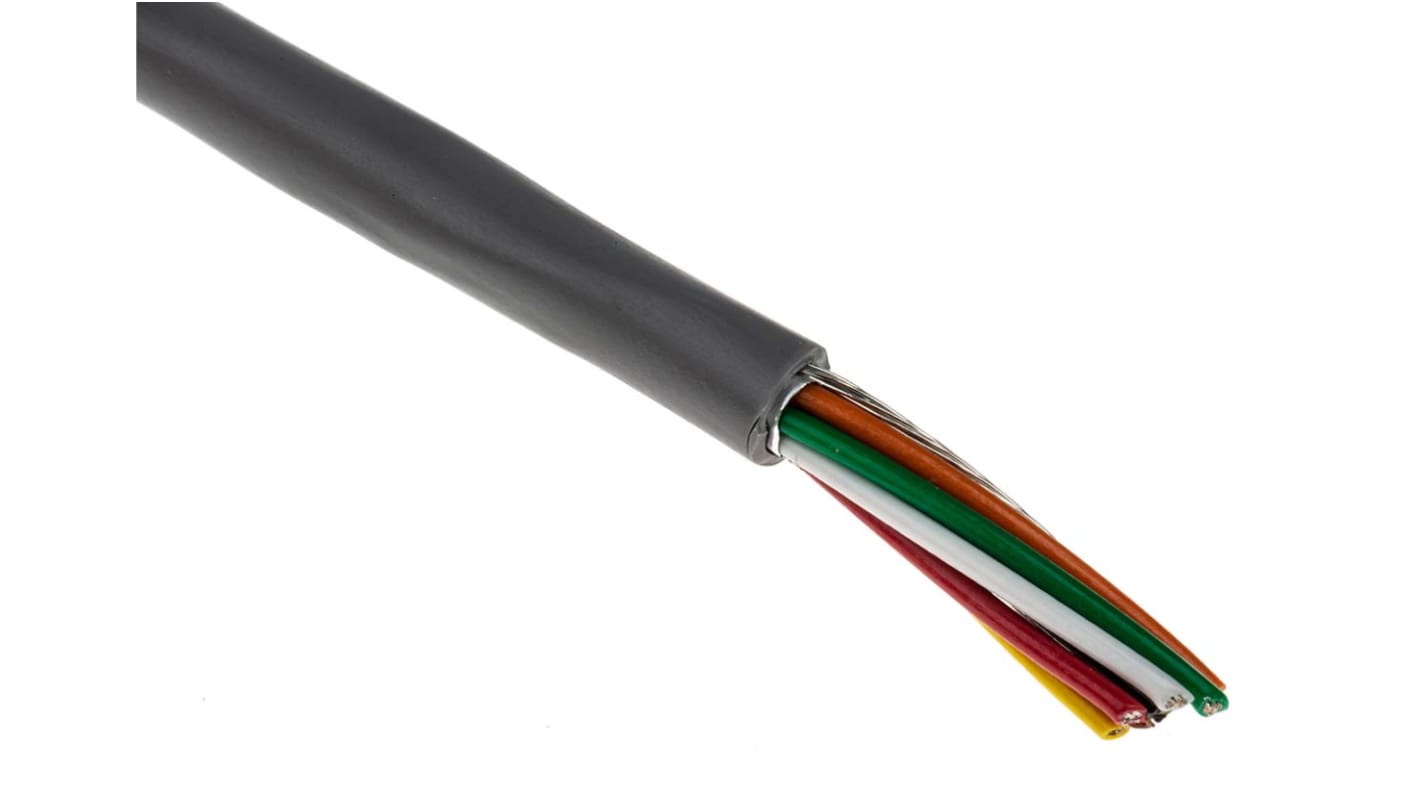

Alpha Wire Alpha Essentials Communication & Control Control Cable, 8 Cores, 0.35 mm², Screened, 30m, Grey PVC Sheath,

View all Control Cable

Subtotal (1 reel of 30 metres)*

£182.15

(exc. VAT)

£218.58

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 3 unit(s) shipping from 11 November 2025
  • Plus 24 unit(s) shipping from 25 November 2025
  • Plus 6 unit(s) shipping from 09 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£182.15£6.072

*price indicative

RS Stock No.:
828-2465
Distrelec Article No.:
301-32-846
Mfr. Part No.:
1298C SL005
Brand:
Alpha Wire
Find similar products by selecting one or more attributes.
Select all

Brand

Alpha Wire

Series

Alpha Essentials Communication & Control

Number of Cores

8

Cross Sectional Area

0.35 mm²

American Wire Gauge

22 AWG

Conductor Material

Tinned Copper

Sheath Material

PVC

Sheath Colour

Grey

Screen Type

Foil

Screened/Unscreened

Screened

Length

30m

Outer Diameter

5.94mm

Minimum Bend Radius

10 x Diameter

Voltage Rating

300 V

Standards Met

CE, CSA, UL

Maximum Operating Temperature

+80°C

Conductor Resistance

16.4 Ω/1000ft

Minimum Operating Temperature

-20°C

Insulation Material

PVC

Core Strands

7/0.25 mm

Drain Wire

Yes

RoHS Status: Exempt

300V Foil Shield Multi-conductor Cable


The foil shielded multi-conductor cable can be used where EMI levels are moderate. They offer good high frequency shielding.


Features and Benefits
• Stranded tinned copper conductors
• Aluminium/polyester foil shield offers additional strength and insulation
• PVC insulation
• Overall flame retardant PVC jacket

Approvals

ULAWM 2576 (150 V), VW-1, UL CM, CSA FT4
