Alpha Wire Alpha Essentials Communication & Control Control Cable, 3 Cores, 0.35 mm² 22 AWG, Screened, 30 m, Grey
- RS Stock No.:
- 168-1105
- Distrelec Article No.:
- 300-83-033
- Mfr. Part No.:
- 2403C SL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£41.91
(exc. VAT)
£50.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £41.91 | £1.397 |
*price indicative
- RS Stock No.:
- 168-1105
- Distrelec Article No.:
- 300-83-033
- Mfr. Part No.:
- 2403C SL005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Control Cable | |
| Series | Alpha Essentials Communication & Control | |
| Number of Cores | 3 | |
| Conductor Material | Tin Copper Wire | |
| Jacket Material | Polyethylene | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Screened | |
| Armoured | No | |
| Outside Diameter | 4.52 mm | |
| Cable Length | 30m | |
| Voltage | 300 V | |
| Minimum Operating Temperature | -20°C | |
| Standards/Approvals | UL, CSA, CE | |
| Maximum Operating Temperature | 75°C | |
| Hazardous Area Certification | No | |
| Cable CSA | 0.35 mm² | |
| American Wire Gauge | 22AWG | |
| Core Strands | 7 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Control Cable | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 3 | ||
Conductor Material Tin Copper Wire | ||
Jacket Material Polyethylene | ||
Jacket Colour Grey | ||
Screened/Unscreened Screened | ||
Armoured No | ||
Outside Diameter 4.52 mm | ||
Cable Length 30m | ||
Voltage 300 V | ||
Minimum Operating Temperature -20°C | ||
Standards/Approvals UL, CSA, CE | ||
Maximum Operating Temperature 75°C | ||
Hazardous Area Certification No | ||
Cable CSA 0.35 mm² | ||
American Wire Gauge 22AWG | ||
Core Strands 7 | ||
RoHS Status: Exempt

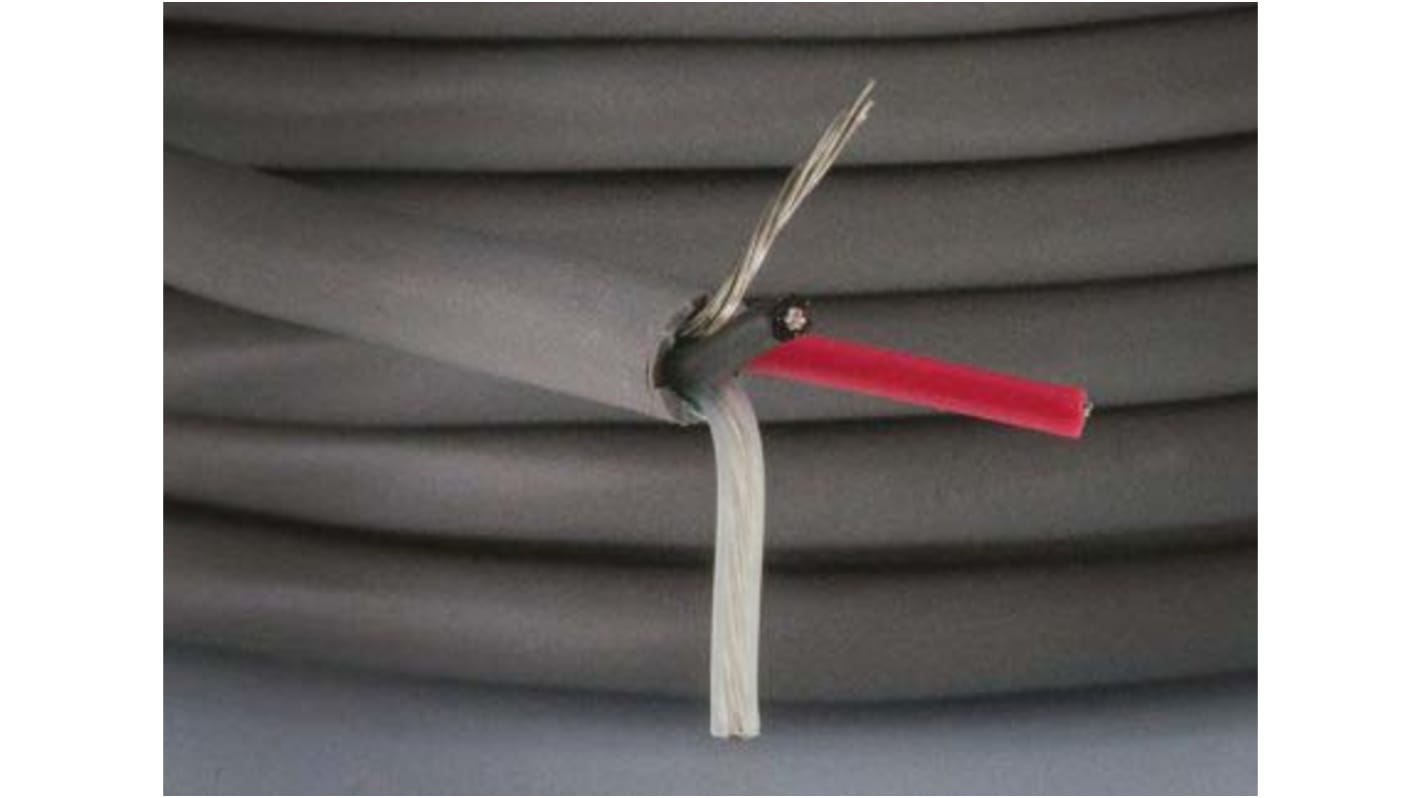

Belden Alpha Wire Control Cable, 300V Voltage Rating - Alpha Essentials Series - 2403C
Take charge of your communication network with this 3-core control cable from Belden Alpha Wire. It has EMI screening, so reliably transmits data over long distances. Thanks to an aluminium-mylar foil with a 25% overlap, your conductors are completely shielded. A 22AWG tinned copper drain wire grounds the foil so it performs well, even in noisy environments. The cable's low capacitance means you can count on it to stop signal distortion in its tracks, boosting the reliability of your setup.
Features & Benefits
• Colour-coded conductors for easy wiring
• PVE jacket and PE insulation keep it durable
• Operates at temperatures from -20°C to +75°C to handle harsh conditions
Applications
• Audio and broadcast equipment
• Security installations
• Telecommunications networks
• Point-of-sale systems
Is this control cable flexible?
Yes. The stranded wires and foil shield boost flexibility and give the cable a minimum bend radius of ten times the outer diameter of 4.5mm.
