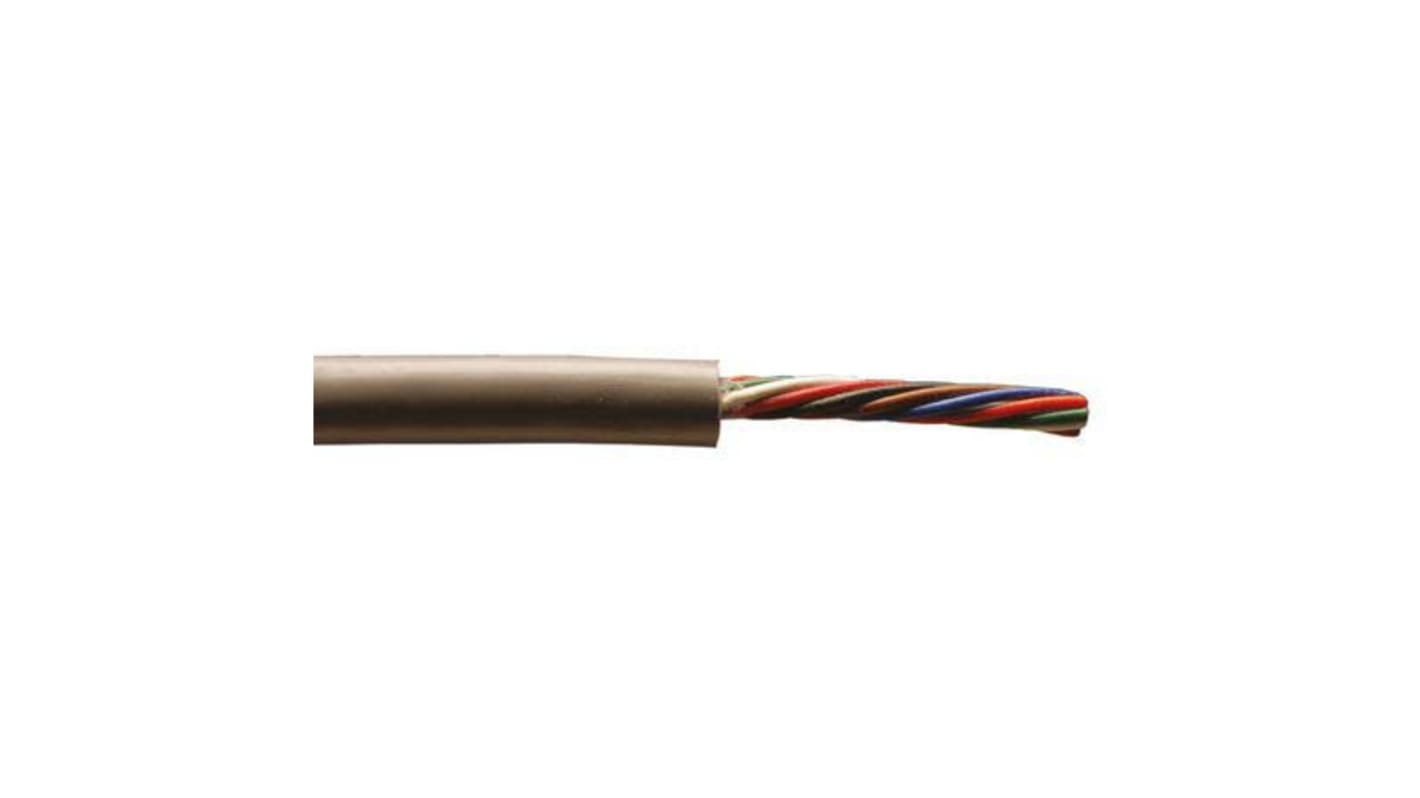

Alpha Wire Alpha Essentials Communication & Control Control Cable, 12 Cores, 0.35 mm², Unscreened, 30m, Grey PVC
- RS Stock No.:
- 828-2288
- Distrelec Article No.:
- 301-32-824
- Mfr. Part No.:
- 1181C SL005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£111.03
(exc. VAT)
£133.24
(inc. VAT)
FREE delivery for orders over £50.00
- 4 unit(s) ready to ship from another location
- Plus 2 unit(s) shipping from 28 October 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £111.03 | £3.701 |
*price indicative
- RS Stock No.:
- 828-2288
- Distrelec Article No.:
- 301-32-824
- Mfr. Part No.:
- 1181C SL005
- Brand:
- Alpha Wire
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Series | Alpha Essentials Communication & Control | |
Number of Cores | 12 | |
Cross Sectional Area | 0.35 mm² | |
American Wire Gauge | 22 AWG | |
Conductor Material | Tinned Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Screen Type | Unscreened | |
Screened/Unscreened | Unscreened | |
Length | 30m | |
Outer Diameter | 6.91mm | |
Minimum Bend Radius | 10 x Diameter | |
Voltage Rating | 300 V | |
Standards Met | CE, CSA, UL | |
Maximum Operating Temperature | +80°C | |
Insulation Material | PVC | |
Conductor Resistance | 16.4 Ω/1000ft | |
Core Strands | 7/0.25 mm | |
Drain Wire | No | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Series Alpha Essentials Communication & Control | ||
Number of Cores 12 | ||
Cross Sectional Area 0.35 mm² | ||
American Wire Gauge 22 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Length 30m | ||
Outer Diameter 6.91mm | ||
Minimum Bend Radius 10 x Diameter | ||
Voltage Rating 300 V | ||
Standards Met CE, CSA, UL | ||
Maximum Operating Temperature +80°C | ||
Insulation Material PVC | ||
Conductor Resistance 16.4 Ω/1000ft | ||
Core Strands 7/0.25 mm | ||
Drain Wire No | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Exempt
Belden Alpha Essentials Communication & Control Series Control Cable, 12 Core Count, 0.35mm² Conductor size - 1181C SL005
Features & Benefits
• 300V rated cable suitable for various applications
• Unscreened design ideal for low-noise environments
• Robust sheath material providing mechanical protection
• Operates efficiently between -20°C to +80°C
• Complies with major safety standards including CE and UL
Applications
• Suitable for instrumentation and data transmission needs
• Employed in business machines and telecom equipment
• Ideal for low-voltage circuit and intercom systems
How does the conductor material influence cable performance?
Can this cable be used in outdoor settings?
What is the significance of the cable's operating temperature range?
What kind of conductive paths does the cable support?
