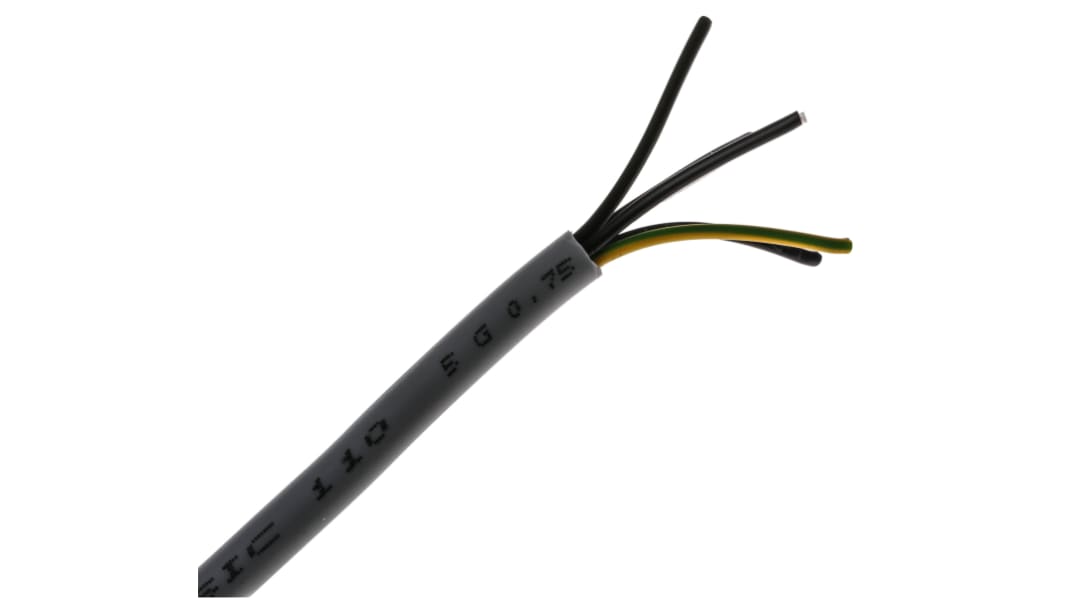

RS PRO Control Cable, 5 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 827-4278
- Distrelec Article No.:
- 304-20-037
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
£69.06
(exc. VAT)
£82.87
(inc. VAT)
FREE delivery for orders over £50.00
- 17 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 40 unit(s) shipping from 31 October 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £69.06 | £1.381 |
*price indicative
- RS Stock No.:
- 827-4278
- Distrelec Article No.:
- 304-20-037
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Series | ÖLFLEX® CLASSIC 110 | |
Number of Cores | 5 | |
Cross Sectional Area | 0.75 mm² | |
American Wire Gauge | 18 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Control Cable Type | YY | |
Screened/Unscreened | Unscreened | |
Length | 50m | |
Outer Diameter | 6.7mm | |
Minimum Bend Radius | Fixed - 4 x D, Occasional Flexing - 15 x D | |
Voltage Rating | 300/500 V | |
Current Rating | 12 A | |
CPR Certification | Eca | |
Standards Met | EN 50525-2-51 | |
Fire Behaviour | Flame Retardant | |
Maximum Operating Temperature | +80°C | |
Insulation Material | PVC | |
Core Strands | 24/0.2 mm | |
Oil Resistant | Yes | |
Cable Shape | Multicore | |
Conductor Resistance | 26 Ω/km | |
Filler Material | Non-Wicking Filler | |
Earth Cable | Yes | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Series ÖLFLEX® CLASSIC 110 | ||
Number of Cores 5 | ||
Cross Sectional Area 0.75 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Length 50m | ||
Outer Diameter 6.7mm | ||
Minimum Bend Radius Fixed - 4 x D, Occasional Flexing - 15 x D | ||
Voltage Rating 300/500 V | ||
Current Rating 12 A | ||
CPR Certification Eca | ||
Standards Met EN 50525-2-51 | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +80°C | ||
Insulation Material PVC | ||
Core Strands 24/0.2 mm | ||
Oil Resistant Yes | ||
Cable Shape Multicore | ||
Conductor Resistance 26 Ω/km | ||
Filler Material Non-Wicking Filler | ||
Earth Cable Yes | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
LAPP ÖLFLEX® CLASSIC 110 Series Control Cable, 0.75 mm² Cross Sectional Area, 50m Length - 1119105
Features & Benefits
• Grey PVC sheath provides good chemical resistance
• Operates effectively at temperatures from -40°C to +80°C
• Rated for 300/500 V, suitable for low voltage usage
• Flame retardant properties enhance safety during use
Applications
• Effective for conveyor and transport systems
• Suitable for heating and air-conditioning systems
• Used in both static and flexible installations
What is the minimum bend radius for this cable during installation?
Can this cable withstand exposure to oils?
What is the maximum conductor DC resistance of this cable?
How versatile is this cable in terms of installation?
