RS PRO Control Cable, 25 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath, 18 AWG

View all Control Cable

Subtotal (1 reel of 50 metres)*

£303.82

(exc. VAT)

£364.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
  • Plus 20 unit(s) shipping from 31 October 2025
  • Plus 15 unit(s) shipping from 12 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£303.82£6.076

*price indicative

RS Stock No.:
827-4313
Distrelec Article No.:
303-95-479
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Number of Cores

25

Cross Sectional Area

0.75 mm²

American Wire Gauge

18 AWG

Conductor Material

Bare Copper

Sheath Material

PVC

Control Cable Type

YY

Sheath Colour

Grey

Screened/Unscreened

Unscreened

Screen Type

Unscreened

Minimum Bend Radius

Fixed - 4 x D, Occasional Flexing - 15 x D

Length

50m

Outer Diameter

13.8mm

Voltage Rating

300/500 V

Current Rating

12 A

CPR Certification

Eca

Standards Met

IEC 60228

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+80°C

Earth Cable

Yes

Core Strands

24/0.2 mm

Insulation Material

PVC

Cable Shape

Multicore

Oil Resistant

Yes

Minimum Operating Temperature

-40°C

Filler Material

Non-Wicking Filler

Conductor Resistance

26 Ω/km

COO (Country of Origin):
DE

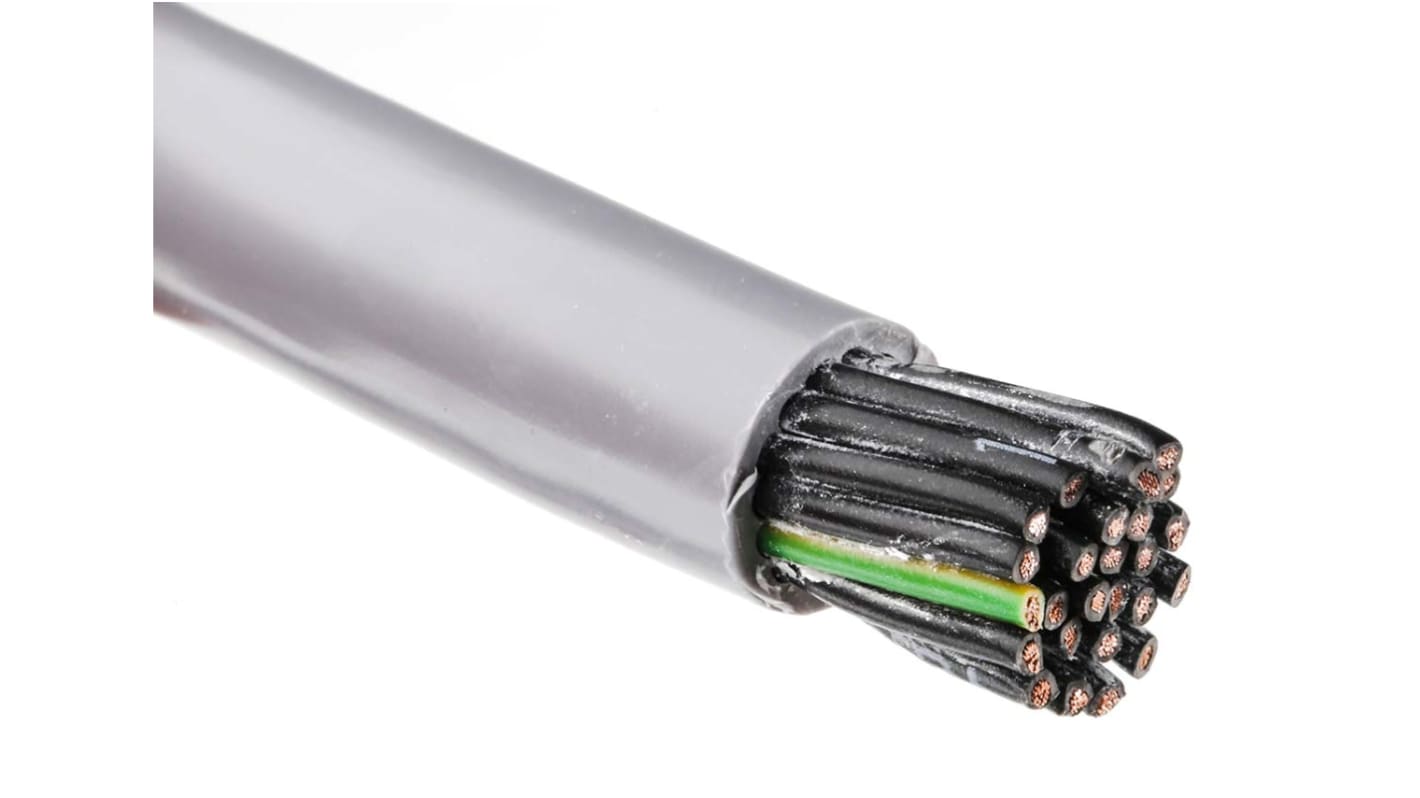

LAPP Control Cable, 25 Cores, 0.75 mm² Cross Sectional Area


This control cable, designed for various applications, features a versatile multicore construction with 25 cores, each measuring 0.75 mm². The cable has a grey PVC outer sheath, ensuring durability and safety in harsh environments. With a length of 50m and an outer diameter of 13.8mm, it is suitable for fixed installations where space is a premium.

Features & Benefits


• Flexible design allows for easy installation in tight spaces
• Unscreened construction avoids unwanted interference
• Flame retardant properties enhance safety in critical areas
• Bare copper conductors ensure efficient electrical conductivity
• Minimum operating temperature of -40°C facilitates usability in extreme environments

Applications


• Used for plant engineering in manufacturing facilities
• Suitable for conveyor and transport systems in logistics
• Effective in heating and air conditioning systems for control signals
• Ideal for installations requiring reliable power and data transmission

What is the significance of the cable's rating of 300/500 V?


The 300/500 V rating indicates that it is suitable for both low and medium voltage applications, providing flexibility for various electrical installations while ensuring safety under higher voltage conditions.

How does the cable's flame retardant feature enhance safety?


The flame retardant material minimises the risk of fire spreading in the event of insulation failure, protecting both equipment and personnel in potentially hazardous environments.

Can the control cable be used outdoors?


Yes, while it is primarily designed for fixed installations, its chemical resistance allows for outdoor use

however, it is advised to ensure it is not exposed directly to continuous sunlight or extreme weather conditions without additional protection.

Note

YY cable is not suitable for fixed wiring applications requiring compliance with the requirements set out in BS7671.
