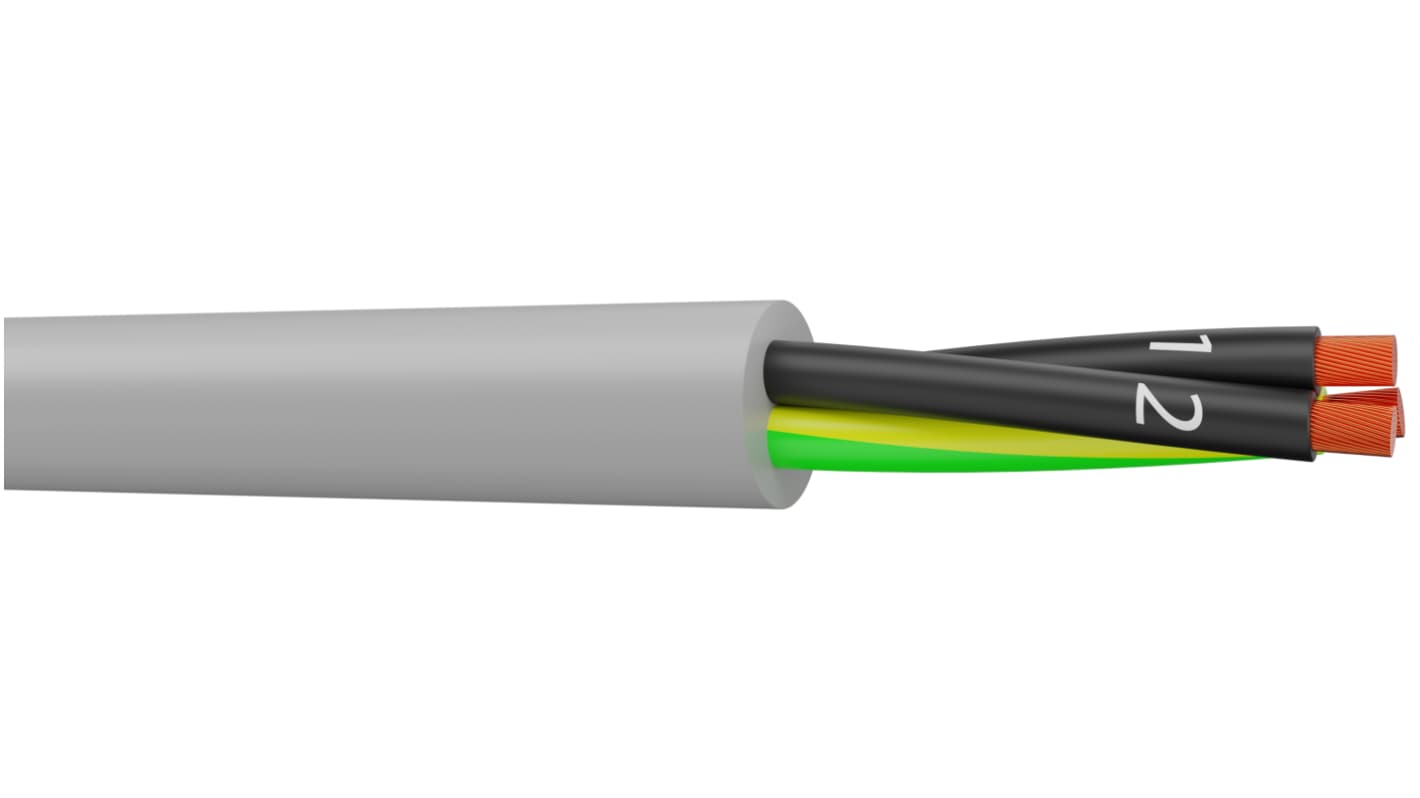

AXINDUS Harmoflex H05VV5-F Control Cable, 3 Cores, 0.75 mm², H05VV5F, Unscreened, 50m, Grey PVC, type TM5 Sheath, 18 AWG
- RS Stock No.:
- 797-0981
- Mfr. Part No.:
- H103.0075
- Brand:
- AXINDUS
2 In stock - FREE next working day delivery available
3 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 50 Metre(s)
£93.55
(exc. VAT)
£112.26
(inc. VAT)
Reel(s) | Per Reel | Per Metre* |
1 + | £93.55 | £1.871 |
*price indicative |
- RS Stock No.:
- 797-0981
- Mfr. Part No.:
- H103.0075
- Brand:
- AXINDUS
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TR
Product Details
Harmoflex H05VV5-F Cable
The H0VV5-F range of cables can be used in a number of applications including power, control, connecting cables in electrical facilities, for fixed laying and movement without tensile stress or without defined cable routing.
Features and Benefits
Suitable for use in dry, humid and wet rooms (also water-oil mixture)
Free from lacquer damaging substances and silicone (during production)
Outdoor use only with UV protection- no laying underground
Increased resistance to oil by special PVC outer sheath
Free from lacquer damaging substances and silicone (during production)
Outdoor use only with UV protection- no laying underground
Increased resistance to oil by special PVC outer sheath
Specifications
Attribute | Value |
---|---|
Series | Harmoflex H05VV5-F |
Number of Cores | 3 |
Cross Sectional Area | 0.75 mm² |
Screened/Unscreened | Unscreened |
Length | 50m |
Control Cable Type | H05VV5F |
Cable Shape | Multi-Conductor |
Sheath Colour | Grey |
CPR Certification | Eca |
American Wire Gauge | 18 AWG |
Outer Diameter | 7.6mm |
Sheath Material | PVC, type TM5 |
Standards Met | Euroclass Eca |
Minimum Operating Temperature | -5°C |
Screen Type | Unscreened |
Maximum Operating Temperature | +70°C |
Oil Resistant | Yes |
Conductor Material | Bare Copper |
Earth Cable | Yes |
Fire Behaviour | Flame Retardant NF C 32-070/C2, IEC 60332-1 |
Current Rating | 12A |
Insulation Material | PVC |
Voltage Rating | 300 V, 500 V |
Minimum Bend Radius | 8 x D |
