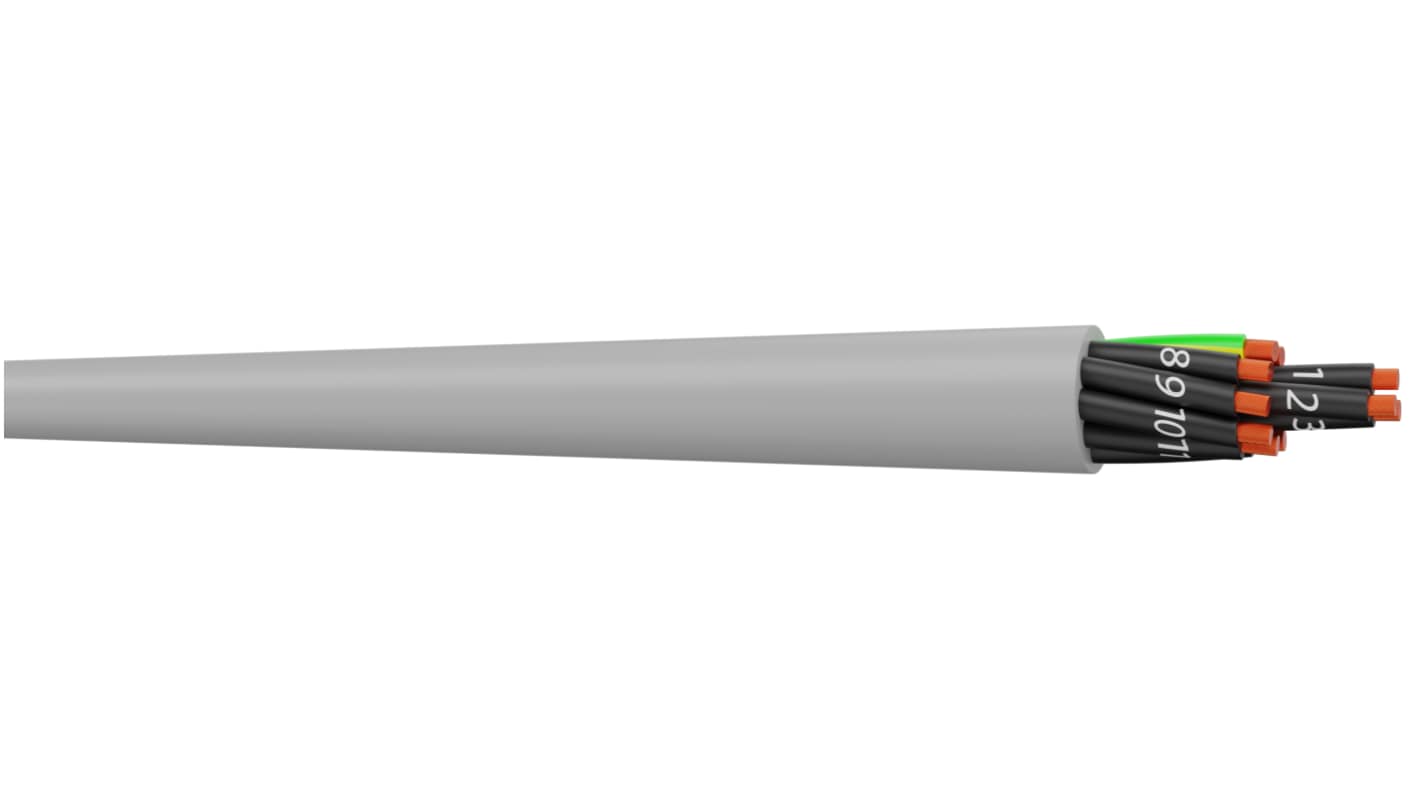

AXINDUS Harmoflex H05VV5-F Control Cable, 7 Cores, 1 mm², H05VV5F, Unscreened, 50m, Grey PVC, type TM5 Sheath, 17 AWG
- RS Stock No.:
- 797-1007
- Mfr. Part No.:
- H1070100C50
- Brand:
- AXINDUS
Image representative of range
Subtotal (1 reel of 50 metres)*
£233.22
(exc. VAT)
£279.86
(inc. VAT)
FREE delivery for orders over £50.00
- 5 unit(s) ready to ship from another location
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £233.22 | £4.664 |
*price indicative
- RS Stock No.:
- 797-1007
- Mfr. Part No.:
- H1070100C50
- Brand:
- AXINDUS
Select all | Attribute | Value |
---|---|---|
Brand | AXINDUS | |
Series | Harmoflex H05VV5-F | |
Number of Cores | 7 | |
Cross Sectional Area | 1 mm² | |
American Wire Gauge | 17 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | PVC, type TM5 | |
Sheath Colour | Grey | |
Control Cable Type | H05VV5F | |
Screen Type | Unscreened | |
Screened/Unscreened | Unscreened | |
Outer Diameter | 11.8mm | |
Length | 50m | |
Minimum Bend Radius | 8 x D | |
Voltage Rating | 300/500 V | |
Current Rating | 15 A | |
CPR Certification | Eca | |
Standards Met | Euroclass Eca | |
Maximum Operating Temperature | +70°C | |
Fire Behaviour | Flame Retardant NF C 32-070/C2, IEC 60332-1 | |
Insulation Material | PVC | |
Minimum Operating Temperature | -5°C | |
Oil Resistant | Yes | |
Cable Shape | Multi-Conductor | |
Earth Cable | Yes | |
Select all | ||
---|---|---|
Brand AXINDUS | ||
Series Harmoflex H05VV5-F | ||
Number of Cores 7 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC, type TM5 | ||
Sheath Colour Grey | ||
Control Cable Type H05VV5F | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Outer Diameter 11.8mm | ||
Length 50m | ||
Minimum Bend Radius 8 x D | ||
Voltage Rating 300/500 V | ||
Current Rating 15 A | ||
CPR Certification Eca | ||
Standards Met Euroclass Eca | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant NF C 32-070/C2, IEC 60332-1 | ||
Insulation Material PVC | ||
Minimum Operating Temperature -5°C | ||
Oil Resistant Yes | ||
Cable Shape Multi-Conductor | ||
Earth Cable Yes | ||
