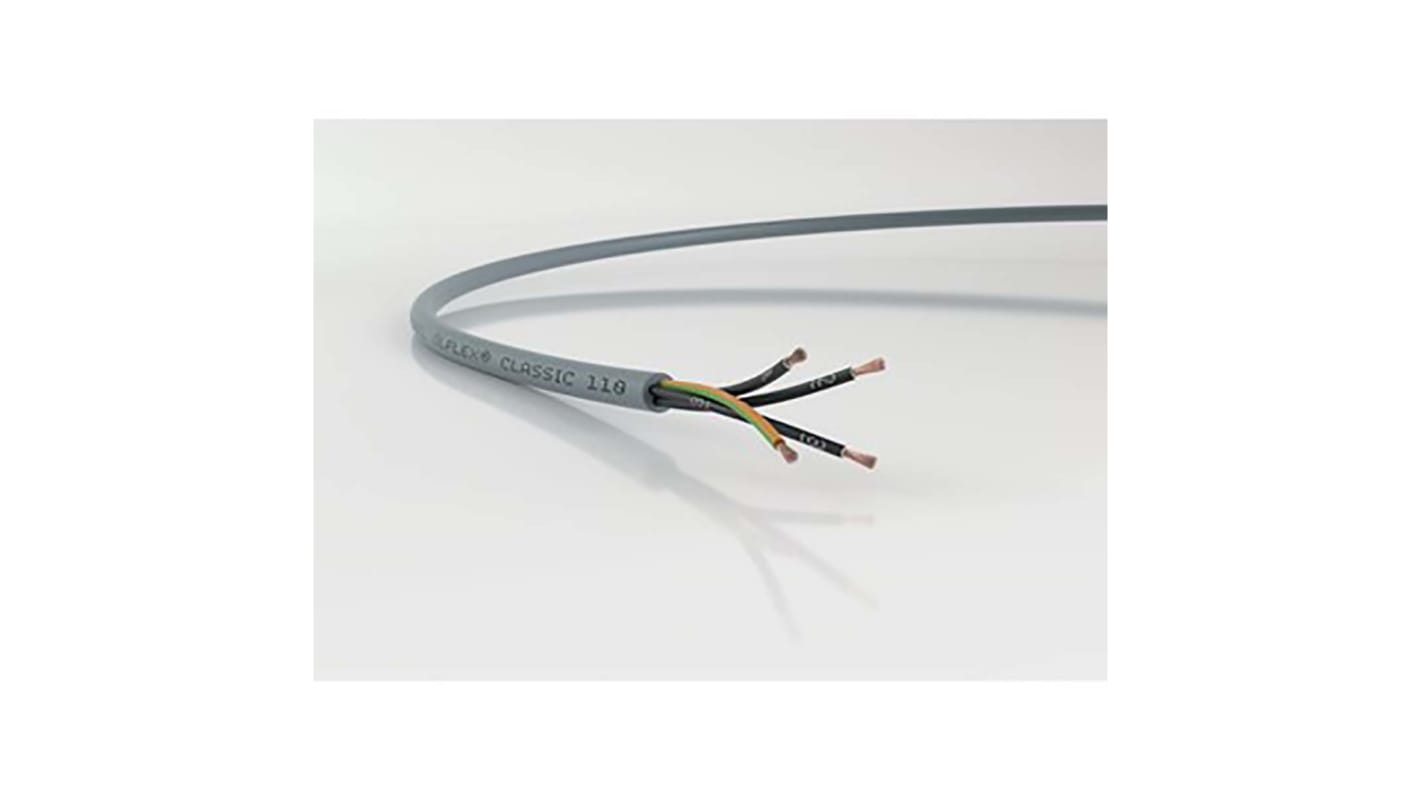

From Lapp, the Olflex Classic 110 YY Cable is a robust cable designed for use under medium mechanical stresses, such as power chain applications. The cable is suitable for fixed installation purposes, as well as those that require occasional flexing and movement.

This YY control cable consists of fine wire copper strands, with a special PVC conductor insulation and sheathing that is suitable for use in both dry and humid conditions. The cable also has a good resistance to chemicals and oils, making it ideal for challenging industrial environments.

YY cable is an excellent control cable solution for a variety of applications.

Features and Benefits

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Chemical resistance at room temperature
• Suitable for dry and humid applications
• Resistant to bending

Applications

Lapp Olflex Classic 110 YY cable is suitable for a wide range of uses, and is often used in control and measurement applications. It is suitable for some torsional applications, and as such is can be found in wind turbine generators. This unscreened YY cable has a robust and reliable nature makes it ideal for;

• Machine Tools
• Plant engineering
• Refrigeration plant sectors
• Construction Industries
• Transport
• Smart Homes

Accessories

Lapp cables should be used alongside accessories that match their capabilities. Lapp provides a variety of reliable and easy-to-fit cable glands, such as the Skintop Click series.

• 560-678 is an M12 IP68 Skintop Click Cable Gland
• 475-091 is an M16 IP68 Skintop Click Cable Gland
• 475-136 is an M20 IP68 Skintop Click Cable Gland
• 475-132 is an M25 IP68 Skintop Click Cable Gland
• 560-688 is an M32 IP68 Skintop Click Cable Gland

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

Choose this control cable from LAPP when you need a reliable power and signal connection for applications where space is at a premium. With a cross-sectional area of just 0.75mm², it offers an efficient balance between size and quality. The two cores are each made up of 24 copper strands, with an 18AWG rating for installations with a low or medium current. PVC insulation is on hand to provide protection against oil and chemicals for enhanced durability.

• Suitable for occasional flexing and movement, including use in power chain applications
• Wide operating temperature range between -40°C and +80°C for safety in challenging conditions
• YY control cable type so it can withstand dry or moist indoor environments

• Smart homes
• Bottling plants
• Refrigeration equipment

This cable is 50m long, so you can use it for extended runs or cut it down to size.
