Lapp ÖLFLEX CLASSIC 110 Control Cable, 5 Cores, 0.75 mm² CSA 18 AWG, Unscreened, 100 m, Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 787-4094
- Mfr. Part No.:
- 1119105
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£163.09
(exc. VAT)
£195.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £163.09 | £1.631 |
*price indicative
- RS Stock No.:
- 787-4094
- Mfr. Part No.:
- 1119105
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC 110 | |
| Product Type | Control Cable | |
| Number of Cores | 5 | |
| Cross Sectional Area | 0.75 mm² | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Outside Diameter | 6.7 mm | |
| Cable Length | 100m | |
| Voltage | 500 V | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Standards/Approvals | CE | |
| Maximum Operating Temperature | 80°C | |
| Fire Behaviour | Flame Retardant | |
| American Wire Gauge | 18AWG | |
| Core Strands | 24 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 110 | ||
Product Type Control Cable | ||
Number of Cores 5 | ||
Cross Sectional Area 0.75 mm² | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Outside Diameter 6.7 mm | ||
Cable Length 100m | ||
Voltage 500 V | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Standards/Approvals CE | ||
Maximum Operating Temperature 80°C | ||
Fire Behaviour Flame Retardant | ||
American Wire Gauge 18AWG | ||
Core Strands 24 | ||
- COO (Country of Origin):
- DE

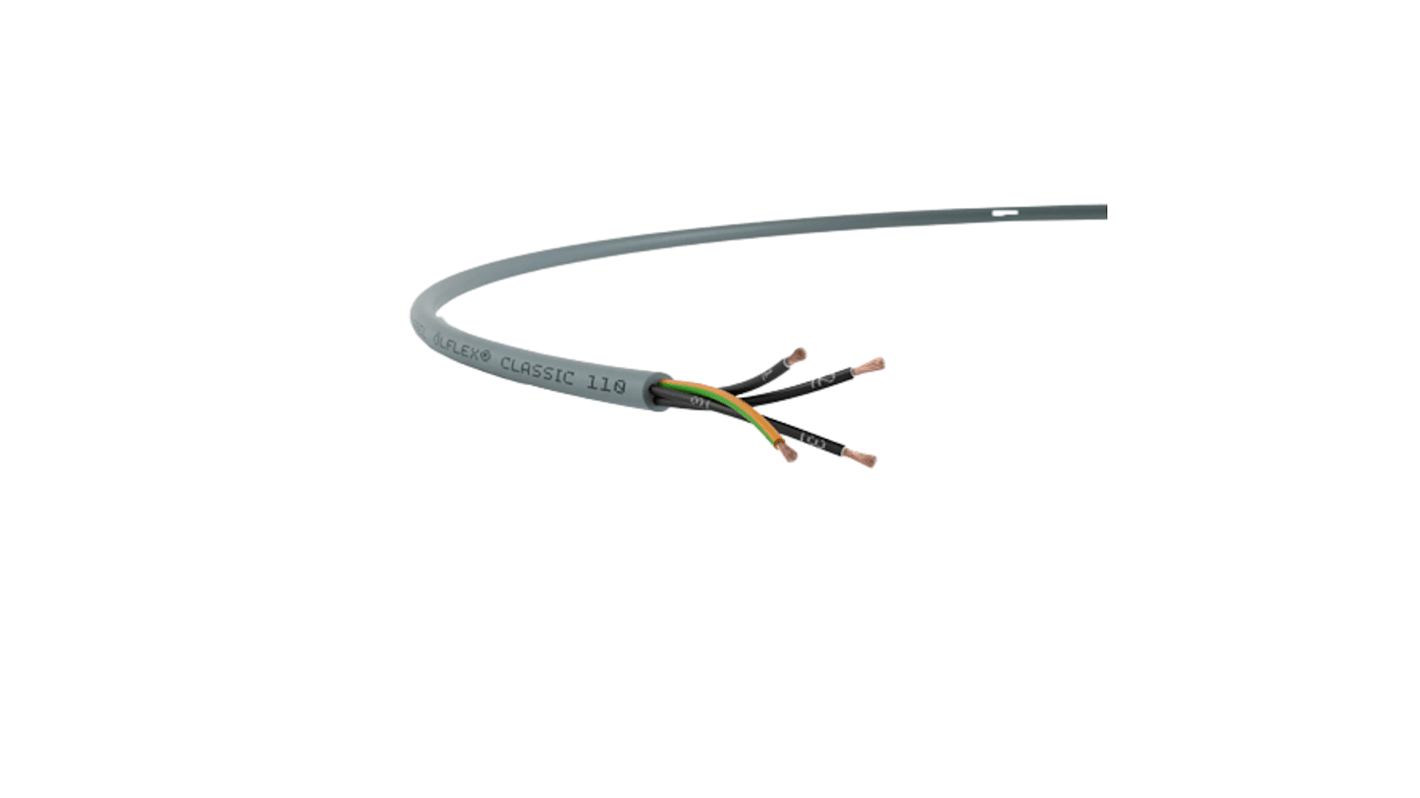

LAPP Control Cable, 5 Cores, 18AWG - ÖLFLEX Series - 1119105
Looking for a reliable connection link for your control and instrumentation equipment? Choose this robust cable from LAPP. It's a YY type component, which means that both its outer sheath and insulation are made of PVC. This material provides resistance to impact and abrasion, so delivers long-term performance. It also protects users from electric shocks and is safe to use in environments where oils and chemicals are present. As the cable has five cores, it's suitable for use as a power or auxiliary control cable in ducting and power networks.
Features & Benefits
• Compact outer diameter of 6.7mm for use in small enclosures
• Supplied on a 50m reel for use in a single run or to be cut to size
• Wide operating temperature range of -40°C to +80°C for use in demanding conditions
• Copper conductors for a reliable connection
Applications
• Wind turbine generators
• Robotics and automation
• Gas plants
What's the bending radius of this cable?
The bending radius of this cable is up to 15 times its outer diameter. This means that it's flexible enough for installation around corners.
Standards
VDE 0295, Part 5
