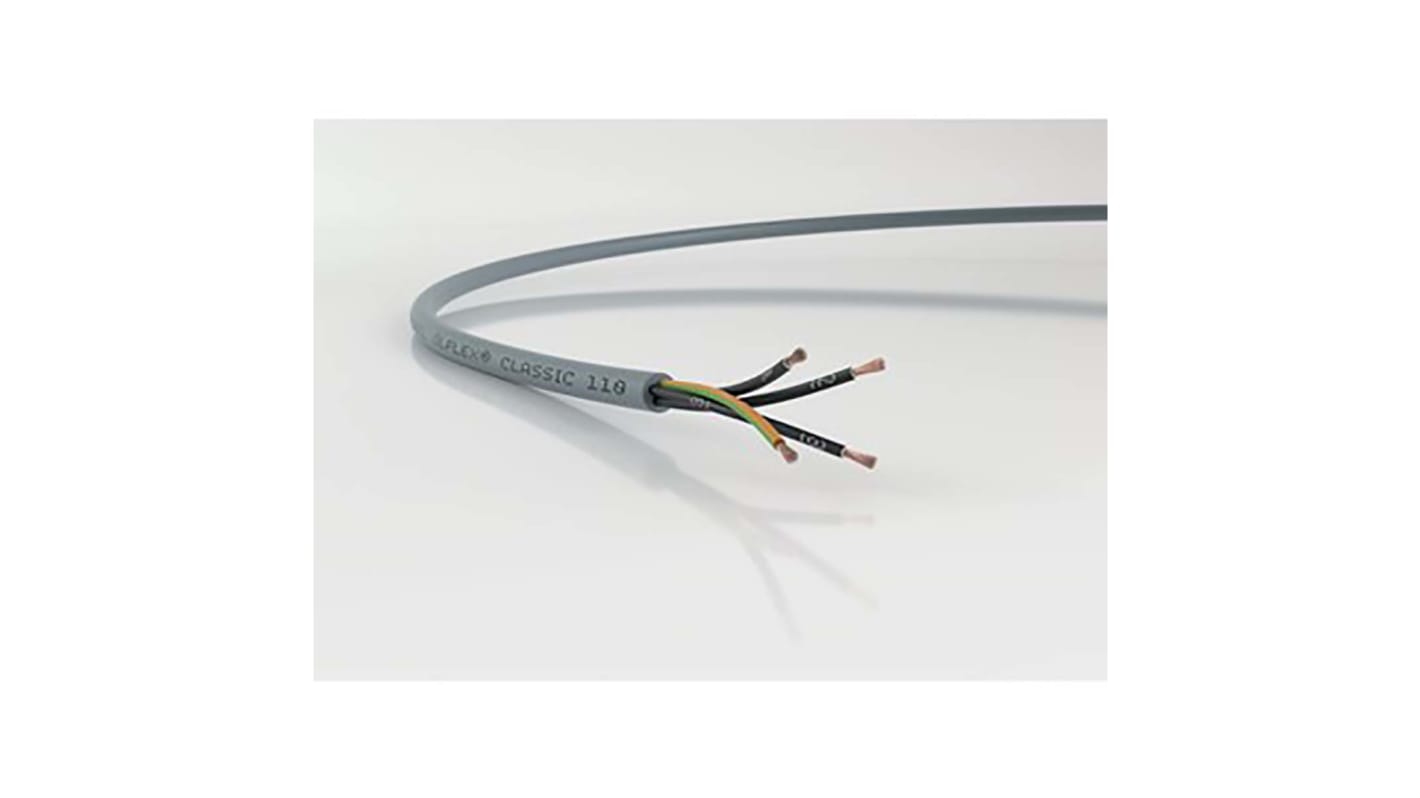

Lapp ÖLFLEX CLASSIC 110 Control Cable, 25 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 787-4035
- Mfr. Part No.:
- 1119125
- Brand:
- Lapp
10 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 50 Metre(s)
£371.49
(exc. VAT)
£445.79
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £371.49 | £7.43 |
| *price indicative | ||
- RS Stock No.:
- 787-4035
- Mfr. Part No.:
- 1119125
- Brand:
- Lapp
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
LAPP Multicore Control Cable, 25 Cores, 50m Length - ÖLFLEX Series - 1119125
Need to transfer data in an application where space is limited? Choose this control cable from LAPP. Its stranded conductor cores and unscreened design mean it's flexible enough for installation even in restricted setups. Copper conductor material supports efficient connections to boost system performance. Designed with 25 cores, the cable combines multiple connections into one component to minimise wiring clutter.
Features & Benefits
• PVC insulation protects against heat, chemical and oil damage, so is suited to demanding conditions
• High 12A current rating for efficient handling of large electrical loads
• Earth cable included for protection against electric shocks
• Length of 50m can be easily cut to length
• High 12A current rating for efficient handling of large electrical loads
• Earth cable included for protection against electric shocks
• Length of 50m can be easily cut to length
Applications
• Energy generation industry
• Vehicle manufacture
• Control panels
• Vehicle manufacture
• Control panels
Can I use this control cable in damp environments?
The cable's non-wicking filler material prevents moisture from corroding the internal wires, making it suitable for damp settings.
Specifications
Attribute | Value |
|---|---|
| Series | ÖLFLEX CLASSIC 110 |
| Number of Cores | 25 |
| Cross Sectional Area | 0.75 mm² |
| Screened/Unscreened | Unscreened |
| Length | 50m |
| Control Cable Type | YY |
| Sheath Colour | Grey |
| CPR Certification | Eca |
| American Wire Gauge | 18 AWG |
| Outer Diameter | 13.8mm |
| Sheath Material | PVC |
| Standards Met | CE |
| Filler Material | Non-Wicking Filler |
| Core Strands | 24/0.2 mm |
| Oil Resistant | Yes |
| Insulation Material | PVC |
| Conductor Resistance | 26 Ω/km |
| Maximum Operating Temperature | +80°C |
| Earth Cable | Yes |
| Voltage Rating | 300/500 V |
| Conductor Material | Copper |
| Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 10 x D |
| Minimum Operating Temperature | -40°C |
| Current Rating | 12 A |
