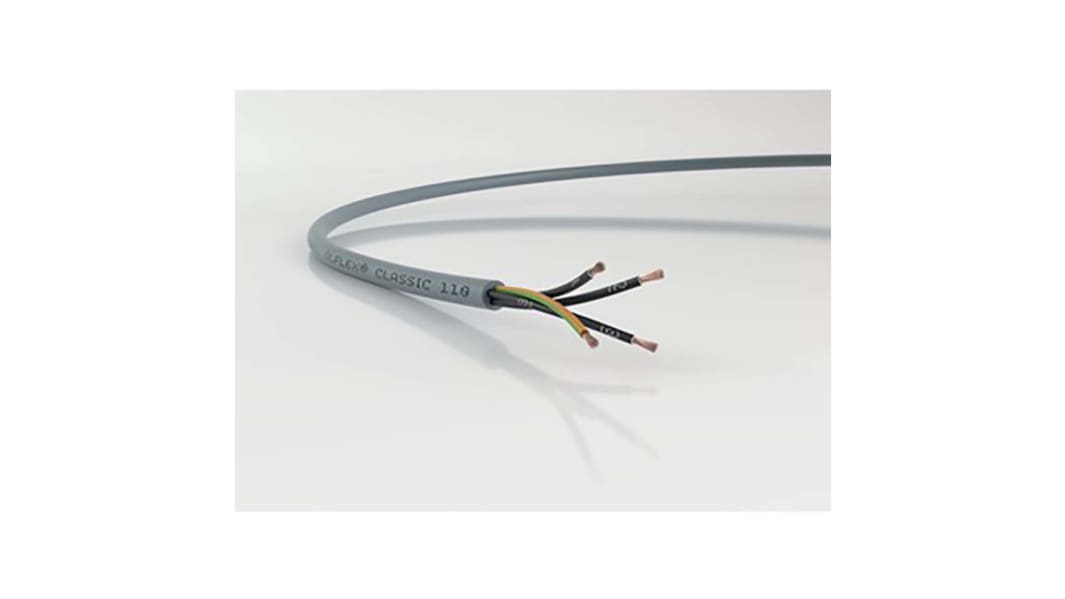

Lapp ÖLFLEX CLASSIC 110 Control Cable, 2 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG

RS Stock No.:: 812-4511
Distrelec Article No.:: 304-10-287
Mfr. Part No.:: 1119752
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 110 Control Cable, 2 Cores, 0.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 20 AWG

Subtotal (1 reel of 50 metres)*

£31.74

(exc. VAT)

£38.09

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

74 unit(s) ready to ship
Plus 12 unit(s) ready to ship from another location
Plus 18 unit(s) shipping from 18 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£31.74	£0.635

*price indicative

Shop our LAPP Glands

Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.

Shop here

RS Stock No.:: 812-4511
Distrelec Article No.:: 304-10-287
Mfr. Part No.:: 1119752
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 110
	Number of Cores	2
	Cross Sectional Area	0.5 mm²
	American Wire Gauge	20 AWG
	Conductor Material	Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	YY
	Screened/Unscreened	Unscreened
	Length	50m
	Outer Diameter	4.8mm
	Minimum Bend Radius	Fixed - 4 x D Occasional flexing - 10 x D
	Voltage Rating	300/500 V
	Current Rating	9 A
	Standards Met	CE
	CPR Certification	Eca
	Maximum Operating Temperature	+80°C
	Filler Material	Non-Wicking Filler
	Insulation Material	PVC
	Conductor Resistance	39 Ω/km
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C
	Earth Cable	No
	Core Strands	16/0.20 mm

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 110
	Number of Cores 2
	Cross Sectional Area 0.5 mm²
	American Wire Gauge 20 AWG
	Conductor Material Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type YY
	Screened/Unscreened Unscreened
	Length 50m
	Outer Diameter 4.8mm
	Minimum Bend Radius Fixed - 4 x D Occasional flexing - 10 x D
	Voltage Rating 300/500 V
	Current Rating 9 A
	Standards Met CE
	CPR Certification Eca
	Maximum Operating Temperature +80°C
	Filler Material Non-Wicking Filler
	Insulation Material PVC
	Conductor Resistance 39 Ω/km
	Oil Resistant Yes
	Minimum Operating Temperature -40°C
	Earth Cable No
	Core Strands 16/0.20 mm

COO (Country of Origin):: DE

LAPP Unscreened Control Cable, 2 Cores, 50m Length - ÖLFLEX Series - 1119752

Choose this control cable from LAPP to efficiently deliver instructions across your automated system. Its stranded cores are highly flexible, making installation easy even in busy cabinets. Thanks to its bare copper conductor material, the cable delivers the reliable connections needed for efficient system performance. Its PVC jacket is flame-retardant and resistant to oils and chemicals, meaning this an ideal choice for use in harsh industrial settings.

Features & Benefits

• Slim 4.8mm outer diameter easily fits into low-profile systems
• 4kV test voltage rating indicates protection against electrical surges
• Filler material is non-wicking to protect against corrosion from moisture in damp settings
• Length of 50m lets you cut exactly the size you need

Applications

• Positioning applications
• Motion-detection systems
• Packing plants
• IT industry

Is this control cable accessible for colour-blind operators?

The cable's conductors are labelled with numbers, making them easy to identify without relying on colours.
