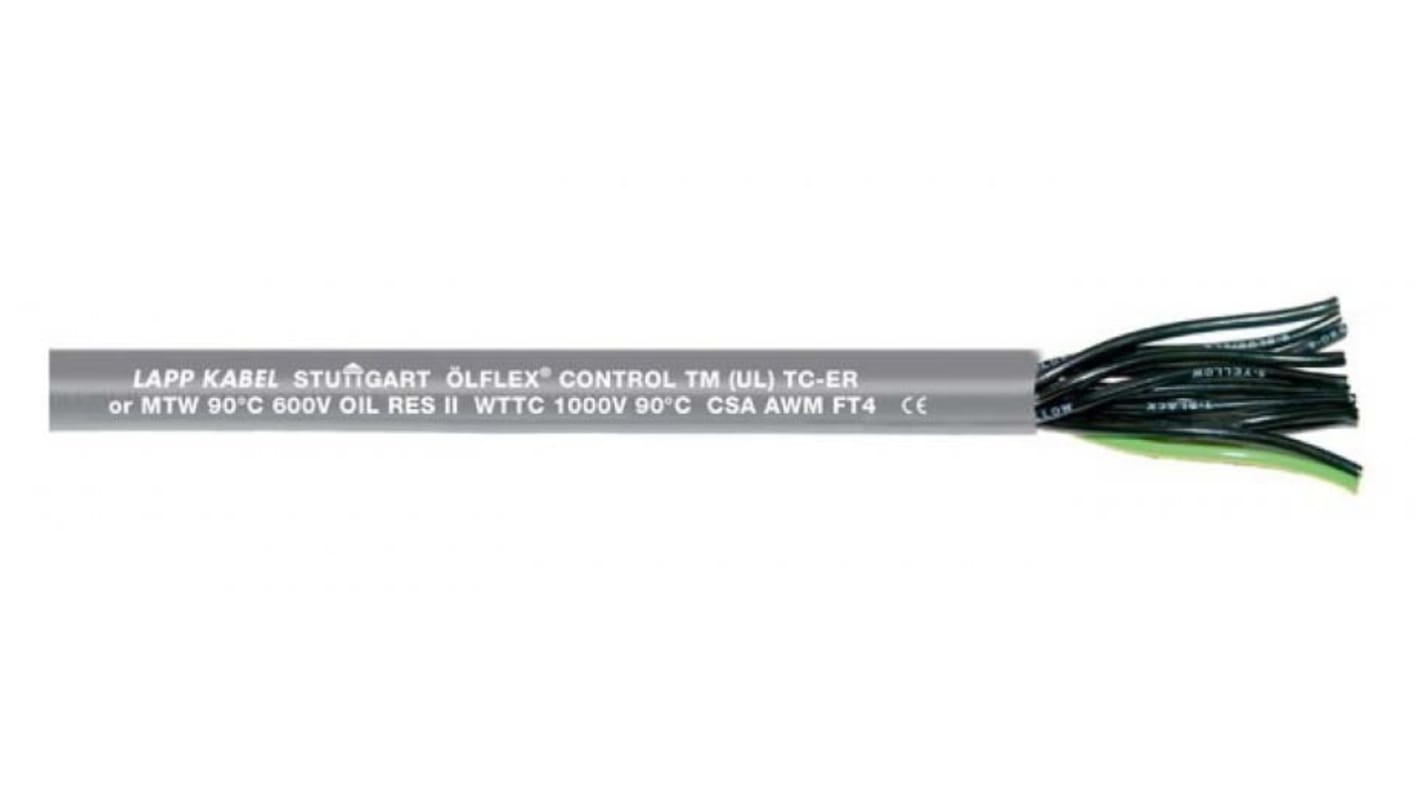

Lapp ÖLFLEX CONTROL TM Control Cable, 12 Cores, 1 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 17 AWG

RS Stock No.:: 807-9679
Mfr. Part No.:: 281812
Brand:: Lapp

Lapp ÖLFLEX CONTROL TM Control Cable, 12 Cores, 1 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 17 AWG

Subtotal (1 reel of 50 metres)*

£410.63

(exc. VAT)

£492.76

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 1 unit(s) shipping from 09 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£410.63	£8.213

*price indicative

RS Stock No.:: 807-9679
Mfr. Part No.:: 281812
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CONTROL TM
	Number of Cores	12
	Cross Sectional Area	1 mm²
	American Wire Gauge	17 AWG
	Conductor Material	Bare Copper
	Sheath Material	Thermoplastic Polymer
	Sheath Colour	Grey
	Control Cable Type	YY
	Screen Type	Unscreened
	Screened/Unscreened	Unscreened
	Minimum Bend Radius	5 x Diameter
	Length	50m
	Outer Diameter	12mm
	Voltage Rating	600 V
	Standards Met	CE, CSA, UL
	Maximum Operating Temperature	+90°C
	Fire Behaviour	Flame Retardant
	Minimum Operating Temperature	-40°C
	Oil Resistant	Yes
	Cable Shape	Multicore
	Insulation Material	PVC
	Drain Wire	Yes

	Select all
	Brand Lapp
	Series ÖLFLEX CONTROL TM
	Number of Cores 12
	Cross Sectional Area 1 mm²
	American Wire Gauge 17 AWG
	Conductor Material Bare Copper
	Sheath Material Thermoplastic Polymer
	Sheath Colour Grey
	Control Cable Type YY
	Screen Type Unscreened
	Screened/Unscreened Unscreened
	Minimum Bend Radius 5 x Diameter
	Length 50m
	Outer Diameter 12mm
	Voltage Rating 600 V
	Standards Met CE, CSA, UL
	Maximum Operating Temperature +90°C
	Fire Behaviour Flame Retardant
	Minimum Operating Temperature -40°C
	Oil Resistant Yes
	Cable Shape Multicore
	Insulation Material PVC
	Drain Wire Yes

COO (Country of Origin):: DE

LAPP ÖLFLEX CONTROL TM Series Control Cable, 12 Cores, 1mm² Cross Sectional Area - 281812

This control cable is designed for a multitude of applications in industrial machinery and plant engineering. It features 12 cores with a cross-sectional area of 1 mm², ensuring effective power and control transmission. With a robust outer diameter of 12mm, this unscreened cable is constructed from a thermoplastic polymer sheath with a grey finish, making it suitable for demanding operational environments.

Features & Benefits

• Oil-resistant, ensuring durability in harsh conditions
• Low minimum bending radius supports flexible installations
• Wide temperature range from -40°C to +90°C allows versatile usage
• PVC insulation further safeguards against environmental factors

Applications

• Ideal for use in industrial machinery and plant
• Suitable for unprotected operations on cable trays
• Can be utilised in wind turbine tray cable installations
• Appropriate for running exposed cable in UK settings

What is the significance of the cable's flame-retardant feature?

The flame-retardant feature helps prevent the spread of fire, making it suitable for environments where safety regulations are stringent, particularly in industrial applications.

How does the cable's torsion resistance benefit its functionality?

Torsion resistance is crucial for applications that involve movement or bending, such as in wind turbines, where cables are subject to dynamic twisting during operation.

What maintenance requirements should be followed for optimal performance?

Regular inspections for wear and damage are recommended, along with ensuring the cable is routed properly to maintain the minimum bending radius and prevent mechanical stress.
