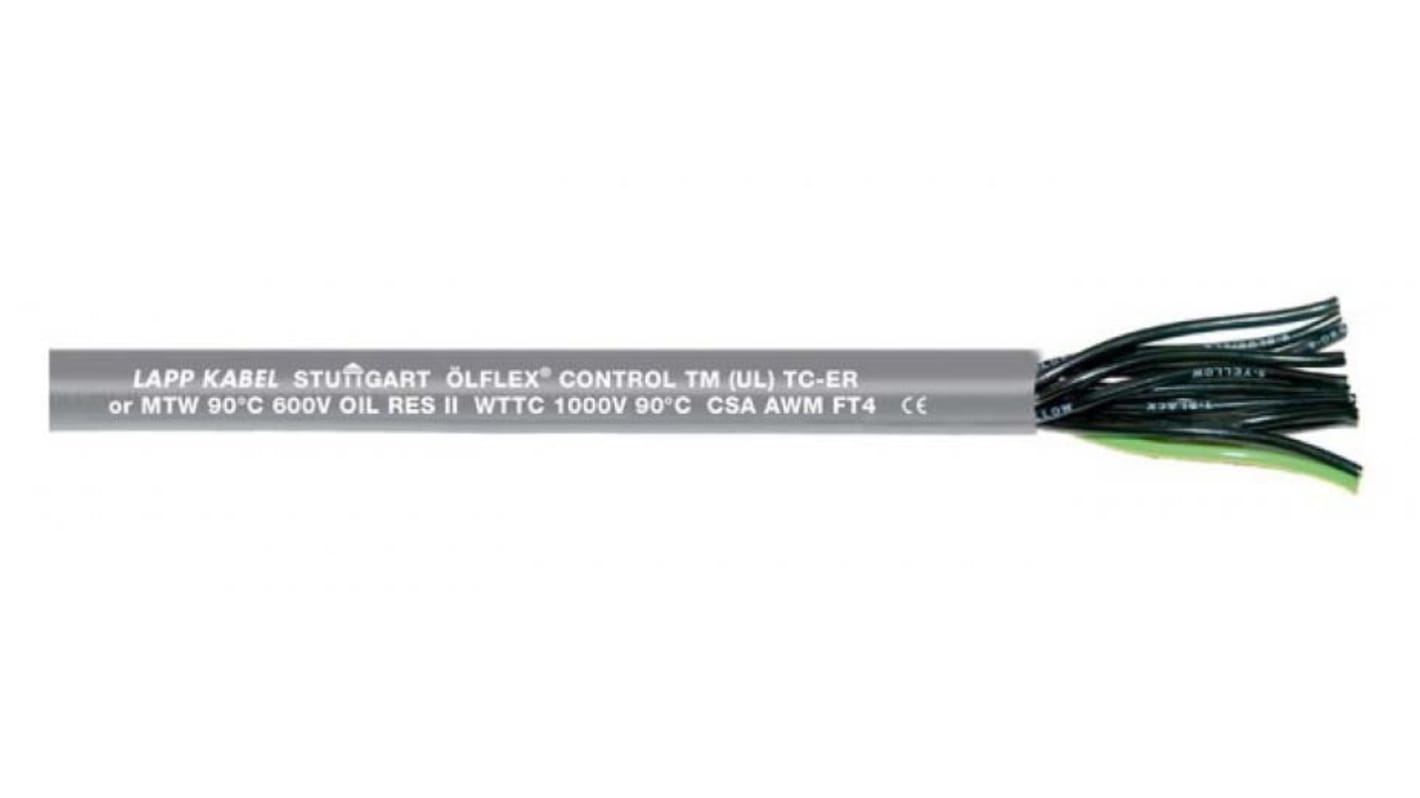

Lapp ÖLFLEX CONTROL TM Control Cable, 4 Cores, 1 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 17 AWG

RS Stock No.:: 807-9663
Mfr. Part No.:: 281804
Brand:: Lapp

Lapp ÖLFLEX CONTROL TM Control Cable, 4 Cores, 1 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 17 AWG

Subtotal (1 reel of 50 metres)*

£222.89

(exc. VAT)

£267.47

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

51 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£222.89	£4.458

*price indicative

RS Stock No.:: 807-9663
Mfr. Part No.:: 281804
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CONTROL TM
	Number of Cores	4
	Cross Sectional Area	1 mm²
	American Wire Gauge	17 AWG
	Conductor Material	Bare Copper
	Sheath Material	Thermoplastic Polymer
	Sheath Colour	Grey
	Control Cable Type	YY
	Screened/Unscreened	Unscreened
	Screen Type	Unscreened
	Minimum Bend Radius	5 x Diameter
	Length	50m
	Outer Diameter	8mm
	Voltage Rating	600 V
	Standards Met	CE, CSA, UL
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+90°C
	Drain Wire	Yes
	Insulation Material	PVC
	Cable Shape	Multicore
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C

	Select all
	Brand Lapp
	Series ÖLFLEX CONTROL TM
	Number of Cores 4
	Cross Sectional Area 1 mm²
	American Wire Gauge 17 AWG
	Conductor Material Bare Copper
	Sheath Material Thermoplastic Polymer
	Sheath Colour Grey
	Control Cable Type YY
	Screened/Unscreened Unscreened
	Screen Type Unscreened
	Minimum Bend Radius 5 x Diameter
	Length 50m
	Outer Diameter 8mm
	Voltage Rating 600 V
	Standards Met CE, CSA, UL
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +90°C
	Drain Wire Yes
	Insulation Material PVC
	Cable Shape Multicore
	Oil Resistant Yes
	Minimum Operating Temperature -40°C

COO (Country of Origin):: DE

LAPP ÖLFLEX CONTROL TM Series Control Cable, 4 Number Of Cores, 1mm² Cross Sectional Area - 281804

This control cable is designed for use in various industrial applications, featuring four cores with a cross-sectional area of 1mm². The cable consists of a thermoplastic polymer sheath in a grey finish, ensuring durability and flexibility in diverse environments.

Features & Benefits

• Constructed from bare copper conductors to enhance conductivity
• Flame-retardant properties ensure safety in operation
• Unscreened design suitable for numerous installation scenarios
• Mechanical resilience allows for effective use in torsional usage

Applications

• Utilised in industrial machinery and plant engineering
• Effective in unprotected 600V operation on cable trays
• Suitable for use in wind turbine generators
• Ideal for cable tray installations in various industrial settings

What type of environment can this cable withstand?

The cable is designed to operate effectively in environments with temperatures ranging from -40°C to +90°C, making it suitable for extreme conditions in both cold and hot climates.

How does the cable’s construction enhance its resistance to environmental factors?

The PVC insulation and thermoplastic polymer sheath provide excellent protection against oils and moisture, ensuring that it maintains performance even when exposed to harsh conditions.

What is the significance of the cable being unscreened?

The unscreened nature of the cable allows for versatile applications, simplifying installation where additional screening is not required, thereby reducing overall costs while maintaining functionality.
