Lapp ÖLFLEX CONTROL TM Control Cable, 7 Cores, 1 mm² CSA 17 AWG, Unscreened, 50 m, Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 807-9675
- Mfr. Part No.:
- 281807
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£292.54
(exc. VAT)
£351.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 1 unit(s) shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £292.54 | £5.851 |
*price indicative
- RS Stock No.:
- 807-9675
- Mfr. Part No.:
- 281807
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CONTROL TM | |
| Product Type | Control Cable | |
| Number of Cores | 7 | |
| Cross Sectional Area | 1 mm² | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 50m | |
| Outside Diameter | 9.3 mm | |
| Voltage | 600 V | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 90°C | |
| Standards/Approvals | UL, CSA, CE | |
| Fire Behaviour | Flame Retardant | |
| American Wire Gauge | 17AWG | |
| Core Strands | 7 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CONTROL TM | ||
Product Type Control Cable | ||
Number of Cores 7 | ||
Cross Sectional Area 1 mm² | ||
Conductor Material Bare Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Cable Length 50m | ||
Outside Diameter 9.3 mm | ||
Voltage 600 V | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 90°C | ||
Standards/Approvals UL, CSA, CE | ||
Fire Behaviour Flame Retardant | ||
American Wire Gauge 17AWG | ||
Core Strands 7 | ||
- COO (Country of Origin):
- DE

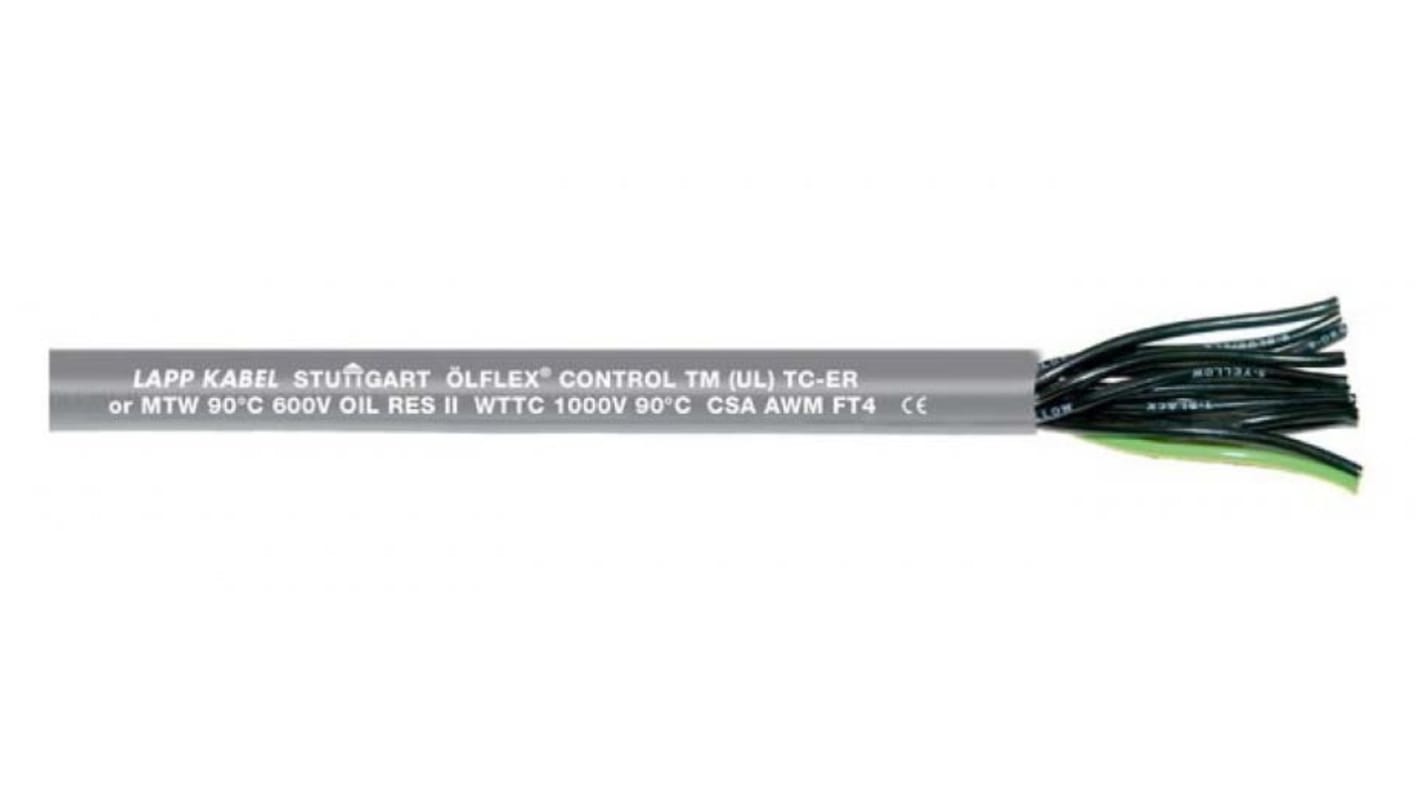

LAPP ÖLFLEX CONTROL TM Series Control Cable, 7 Cores, 1 mm² Cross Sectional Area - 281807
This control cable is designed for versatile applications in industrial settings. It features a multicore structure with 7 cores, each with a cross-sectional area of 1 mm². It is sheathed in durable thermoplastic polymer, providing robust protection against environmental factors, and has a grey outer jacket.
Features & Benefits
• Flame-retardant properties ensure enhanced safety measures
• Unscreened design offers flexibility for various installations
• Fine-wire copper conductors enhance conductivity and performance
• Durable PVC insulation provides reliable electrical protection
Applications
• Ideal for use in industrial machinery and plant engineering
• Suitable for torsion in wind turbine generators
• Facilitates control wiring in automation systems
• Can be used in cable trays for enhanced organisation
What are the temperature limits for operational use?
The cable can operate within a temperature range of -40°C when static and -25°C when occasionally moved, reaching up to +90°C.
How does the cable mitigate risks in environments with oil exposure?
Its oil-resistant formulation protects the electrical integrity of the conductors, making it safe for use in environments where oil contact is likely.
Can this cable be used for outdoor applications?
Yes, it is designed to withstand exposure to sunlight and ozone, ensuring longevity and reliability in outdoor settings.
What specific installation benefits does this cable offer?
Its torsion-resistant properties allow for easier installation in areas where bending and movement occur, reducing wear and tear during operation.
