Lapp ÖLFLEX CONTROL TM Control Cable, 4 Cores, 2.5 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 13 AWG

RS Stock No.:: 807-9629
Distrelec Article No.:: 304-01-854
Mfr. Part No.:: 281404
Brand:: Lapp

Lapp ÖLFLEX CONTROL TM Control Cable, 4 Cores, 2.5 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 13 AWG

Subtotal (1 reel of 50 metres)*

£279.89

(exc. VAT)

£335.87

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

3 unit(s) ready to ship
Plus 4 unit(s) ready to ship from another location
Plus 4 unit(s) shipping from 07 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£279.89	£5.598

*price indicative

RS Stock No.:: 807-9629
Distrelec Article No.:: 304-01-854
Mfr. Part No.:: 281404
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CONTROL TM
	Number of Cores	4
	Cross Sectional Area	2.5 mm²
	American Wire Gauge	13 AWG
	Conductor Material	Bare Copper
	Sheath Material	Thermoplastic Polymer
	Sheath Colour	Grey
	Control Cable Type	YY
	Screened/Unscreened	Unscreened
	Screen Type	Unscreened
	Minimum Bend Radius	5 x Diameter
	Length	50m
	Outer Diameter	9.8mm
	Voltage Rating	600 V
	Standards Met	CE, CSA, UL
	Maximum Operating Temperature	+90°C
	Fire Behaviour	Flame Retardant
	Minimum Operating Temperature	-40°C
	Insulation Material	PVC
	Oil Resistant	Yes
	Drain Wire	Yes
	Cable Shape	Multicore

	Select all
	Brand Lapp
	Series ÖLFLEX CONTROL TM
	Number of Cores 4
	Cross Sectional Area 2.5 mm²
	American Wire Gauge 13 AWG
	Conductor Material Bare Copper
	Sheath Material Thermoplastic Polymer
	Sheath Colour Grey
	Control Cable Type YY
	Screened/Unscreened Unscreened
	Screen Type Unscreened
	Minimum Bend Radius 5 x Diameter
	Length 50m
	Outer Diameter 9.8mm
	Voltage Rating 600 V
	Standards Met CE, CSA, UL
	Maximum Operating Temperature +90°C
	Fire Behaviour Flame Retardant
	Minimum Operating Temperature -40°C
	Insulation Material PVC
	Oil Resistant Yes
	Drain Wire Yes
	Cable Shape Multicore

COO (Country of Origin):: DE

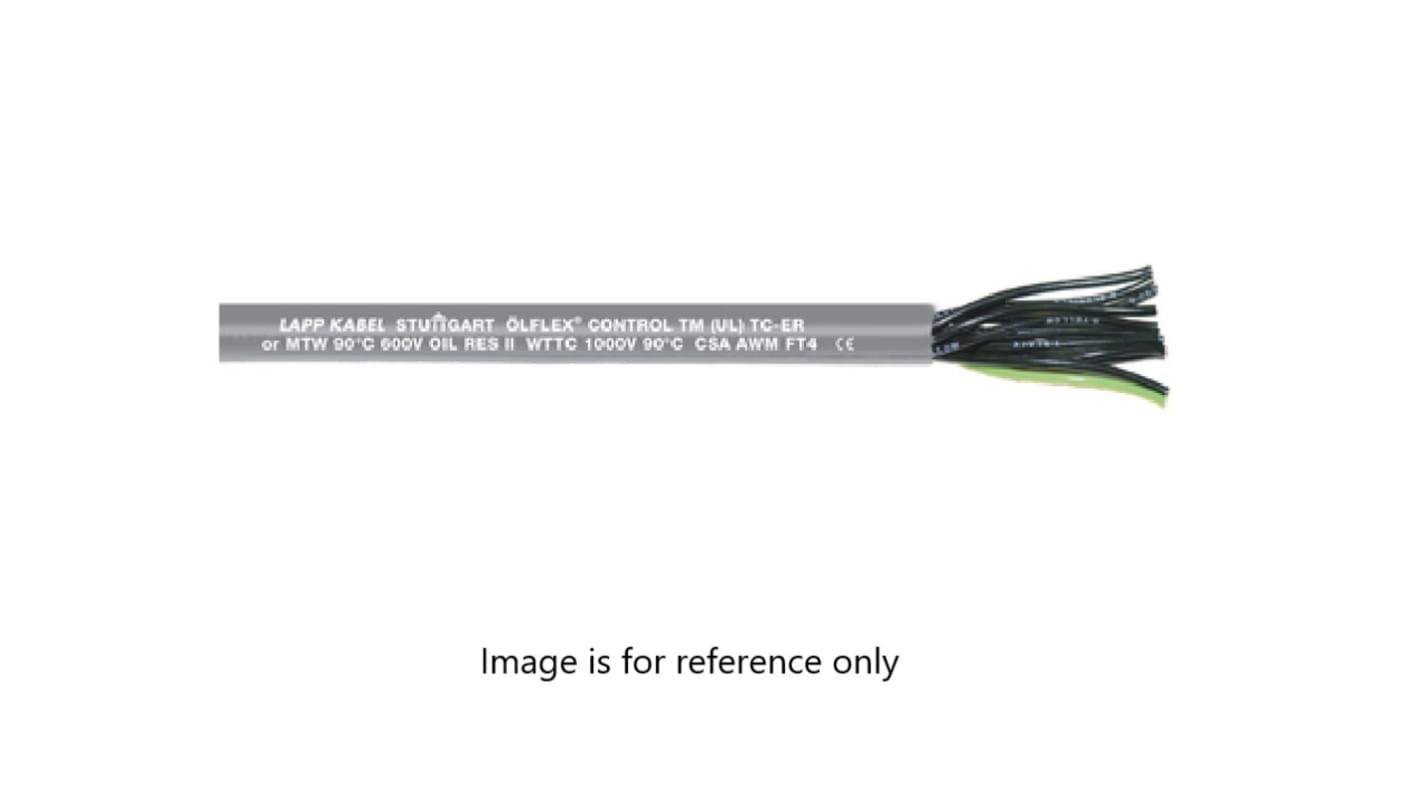

LAPP ÖLFLEX CONTROL TM Series Control Cable, 4 Cores, 2.5mm² Conductor Area - 281404

This control cable features a multicore construction with four cores and a cross-sectional area of 2.5 mm². Designed for heavy-duty applications, it has an outer diameter of 9.8mm and a length of 50m. The cable is made from bare copper conductors and is insulated with PVC, making it suitable for various industrial environments.

Features & Benefits

• Unscreened design facilitates flexibility in tight spaces
• Minimum bend radius allows for versatile installation options
• High voltage rating up to 600V supports demanding usage
• Temperature range from -40°C to +90°C suits diverse conditions

Applications

• Ideal for use in industrial machinery and plant engineering
• Suitable for unprotected 600V operation on cable trays
• Compatible with wind turbine tray cable systems for enhanced reliability
• Effective in torsion typical in wind turbine generators

What makes the cable suitable for harsh environmental conditions?

The cable's oil-resistant and flame-retardant properties allow it to withstand exposure to challenging environments, ensuring longevity and reliability during operation.

How does the cable's flexibility benefit installation?

Its unscreened design and minimum bend radius of 5 times the diameter enable easier handling and installation in confined spaces or complex configurations.

What is the significance of the torsion-resistant feature?

This feature is crucial for applications where the cable must endure twisting motions, particularly in wind turbine generators, thus ensuring consistent performance without damage.
