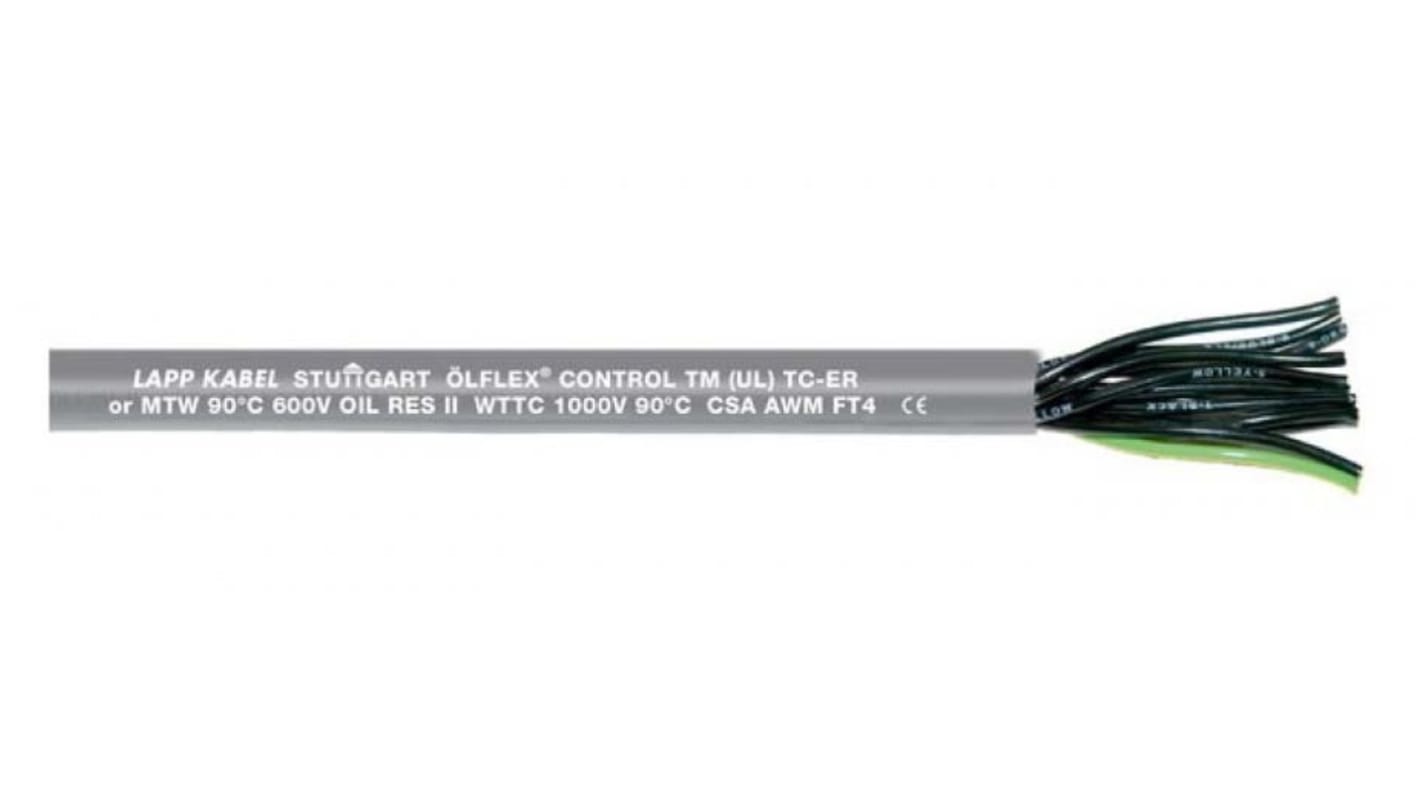

Lapp ÖLFLEX CONTROL TM Control Cable, 4 Cores, 10 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 7 AWG

RS Stock No.:: 807-9590
Mfr. Part No.:: 280804
Brand:: Lapp

Lapp ÖLFLEX CONTROL TM Control Cable, 4 Cores, 10 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 7 AWG

Subtotal (1 reel of 50 metres)*

£1,256.27

(exc. VAT)

£1,507.52

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship
Plus 1 unit(s) shipping from 09 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£1,256.27	£25.125

*price indicative

RS Stock No.:: 807-9590
Mfr. Part No.:: 280804
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CONTROL TM
	Number of Cores	4
	Cross Sectional Area	10 mm²
	American Wire Gauge	7 AWG
	Conductor Material	Bare Copper
	Sheath Material	Thermoplastic Polymer
	Sheath Colour	Grey
	Control Cable Type	YY
	Screened/Unscreened	Unscreened
	Screen Type	Unscreened
	Minimum Bend Radius	5 x Diameter
	Length	50m
	Outer Diameter	17.7mm
	Voltage Rating	600 V
	Standards Met	CE, CSA, UL
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+90°C
	Drain Wire	Yes
	Insulation Material	PVC
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C
	Cable Shape	Multicore

	Select all
	Brand Lapp
	Series ÖLFLEX CONTROL TM
	Number of Cores 4
	Cross Sectional Area 10 mm²
	American Wire Gauge 7 AWG
	Conductor Material Bare Copper
	Sheath Material Thermoplastic Polymer
	Sheath Colour Grey
	Control Cable Type YY
	Screened/Unscreened Unscreened
	Screen Type Unscreened
	Minimum Bend Radius 5 x Diameter
	Length 50m
	Outer Diameter 17.7mm
	Voltage Rating 600 V
	Standards Met CE, CSA, UL
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +90°C
	Drain Wire Yes
	Insulation Material PVC
	Oil Resistant Yes
	Minimum Operating Temperature -40°C
	Cable Shape Multicore

COO (Country of Origin):: DE

LAPP ÖLFLEX CONTROL TM Series Control Cable, 4 Cores, 10 mm² Cross Sectional Area - 280804

This control cable is designed for industrial use and excels in applications requiring longevity and reliability. It features a robust outer sheath made of thermoplastic polymer, complemented by bare copper conductors for conductivity. Measuring 50m in length, this 4 core control cable boasts a cross-sectional area of 10 mm², making it a versatile choice for various installations.

Features & Benefits

• Employs bare copper conductors for high conductivity
• Flame-retardant design enhances safety in harsh environments
• Unscreened construction optimises flexibility for easy handling
• PVC insulation provides reliable protection against wear
• Rated for a voltage of 600V, suitable for high voltage usage
• Capable of operating in temperatures ranging from -40°C to +90°C

Applications

• Suitable for plant and factory expansions
• Ideal for use in automotive plants and tray installations
• Can be used in exposed run such as wind turbines
• Effective for internal and external wiring of equipment

What are the advantages of using this type of control cable in industrial settings?

This type of control cable is particularly beneficial due to its superior oil performance and flame-retardant properties, which enhance durability in challenging environments. The flexibility of its construction aids in easier installation in tight spaces.

Can it be used in outdoor applications?

Yes, the specially formulated thermoplastic polymer jacket offers UV resistance, making it suitable for outdoor use while providing protection from environmental factors.

What is the minimum bend radius for installation?

The cable has a minimum bend radius of 5 times its outer diameter, ensuring that it can be handled without damaging the integrity of the cable during installation.
