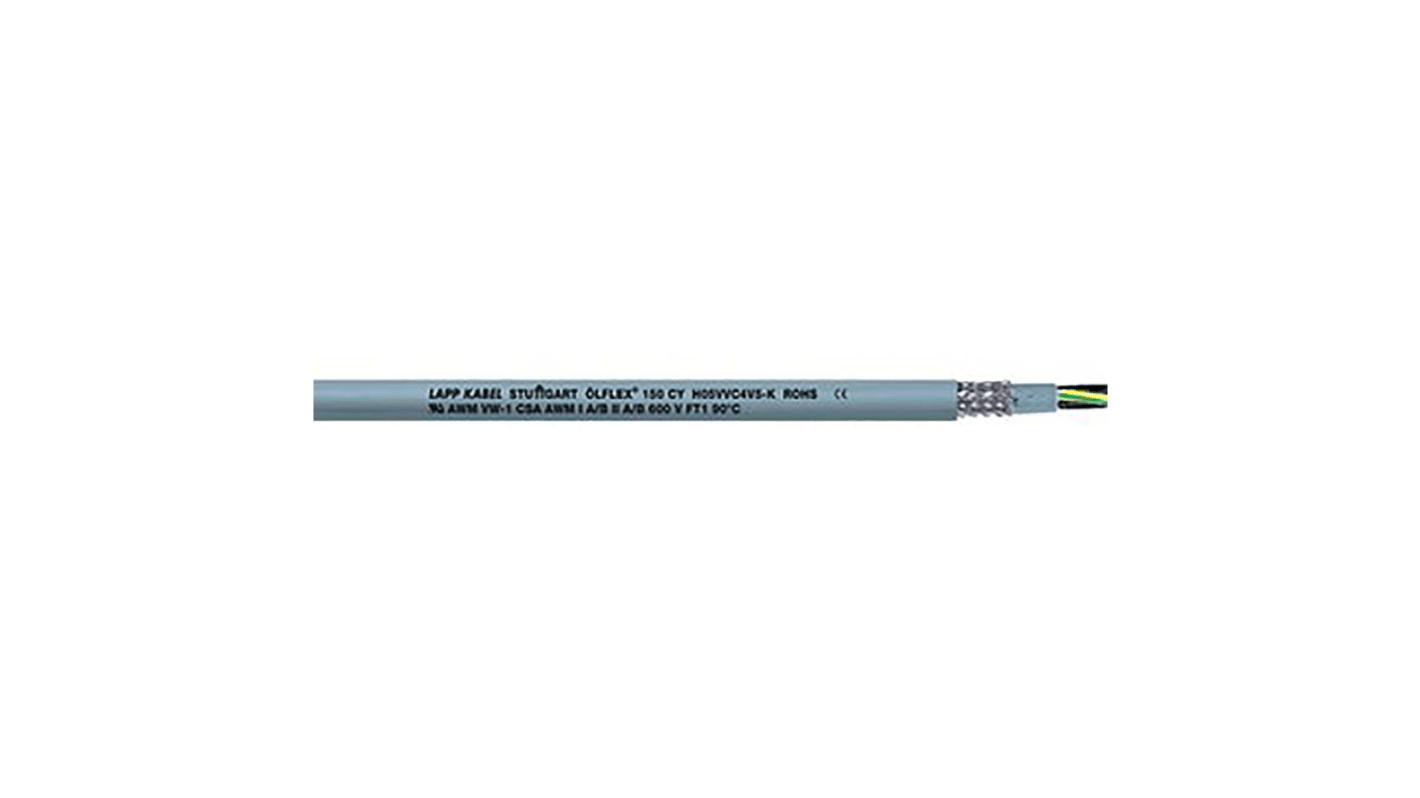

Lapp ÖLFLEX 150 CY Control Cable, 3 Cores, 0.75 mm², CY, Screened, 50m, Grey PVC Sheath, 18 AWG

RS Stock No.:: 807-8880
Mfr. Part No.:: 0015603
Brand:: Lapp

Lapp ÖLFLEX 150 CY Control Cable, 3 Cores, 0.75 mm², CY, Screened, 50m, Grey PVC Sheath, 18 AWG

Subtotal (1 reel of 50 metres)*

£175.90

(exc. VAT)

£211.08

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

6 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£175.90	£3.518

*price indicative

RS Stock No.:: 807-8880
Mfr. Part No.:: 0015603
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX 150 CY
	Number of Cores	3
	Cross Sectional Area	0.75 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Sheath Colour	Grey
	Control Cable Type	CY
	Screened/Unscreened	Screened
	Screen Type	Tinned Copper Braid
	Outer Diameter	8.9mm
	Length	50m
	Minimum Bend Radius	6 x Diameter
	Voltage Rating	500 V
	Standards Met	CE, CSA, UL
	CPR Certification	Dca
	Maximum Operating Temperature	+70°C
	Fire Behaviour	Flame Retardant
	Insulation Material	PVC
	Drain Wire	Yes
	Oil Resistant	Yes
	Cable Shape	Multicore
	Minimum Operating Temperature	-40°C

	Select all
	Brand Lapp
	Series ÖLFLEX 150 CY
	Number of Cores 3
	Cross Sectional Area 0.75 mm²
	American Wire Gauge 18 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Sheath Colour Grey
	Control Cable Type CY
	Screened/Unscreened Screened
	Screen Type Tinned Copper Braid
	Outer Diameter 8.9mm
	Length 50m
	Minimum Bend Radius 6 x Diameter
	Voltage Rating 500 V
	Standards Met CE, CSA, UL
	CPR Certification Dca
	Maximum Operating Temperature +70°C
	Fire Behaviour Flame Retardant
	Insulation Material PVC
	Drain Wire Yes
	Oil Resistant Yes
	Cable Shape Multicore
	Minimum Operating Temperature -40°C

COO (Country of Origin):: DE

LAPP ÖLFLEX 150 CY Series Control Cable, 3 Number Of Cores, 0.75 mm² Cross Sectional Area - 0015603

This screened control cable is designed for flexible applications in industrial environments. It features a robust PVC sheath that is grey in colour, measuring 8.9mm in diameter, and offers reliable performance under a voltage rating of 500V. With a cable length of 50m, it is suitable for various installation scenarios, providing both versatility and resilience.

Features & Benefits

• Screened for high electromagnetic compatibility
• Flame retardant for enhanced safety
• Operating temperature range of -40°C to +70°C
• Low transfer impedance reduces interference signals

Applications

• Utilised in plant engineering and industrial machinery
• Suitable for heating and air-conditioning systems
• Ideal for EMC-sensitive environments
• Effective in dry, damp, or wet interiors, excluding outdoor use
• Recommended for fixed installation under medium mechanical load

What are the specific resistance properties that this cable offers?

The cable demonstrates excellent resistance to oils and other chemicals, making it suitable for various industrial applications while maintaining integrity in environments exposed to water-oil mixtures.

How does the screening affect performance in electromagnetic environments?

The high degree of screening significantly reduces electromagnetic interference, which is vital for maintaining the integrity of signals in sensitive applications.

What is the significance of the minimum bend radius in installation?

A minimum bend radius of 6 times the diameter is crucial to prevent damage during installation, ensuring longevity and optimal performance of the cable.
