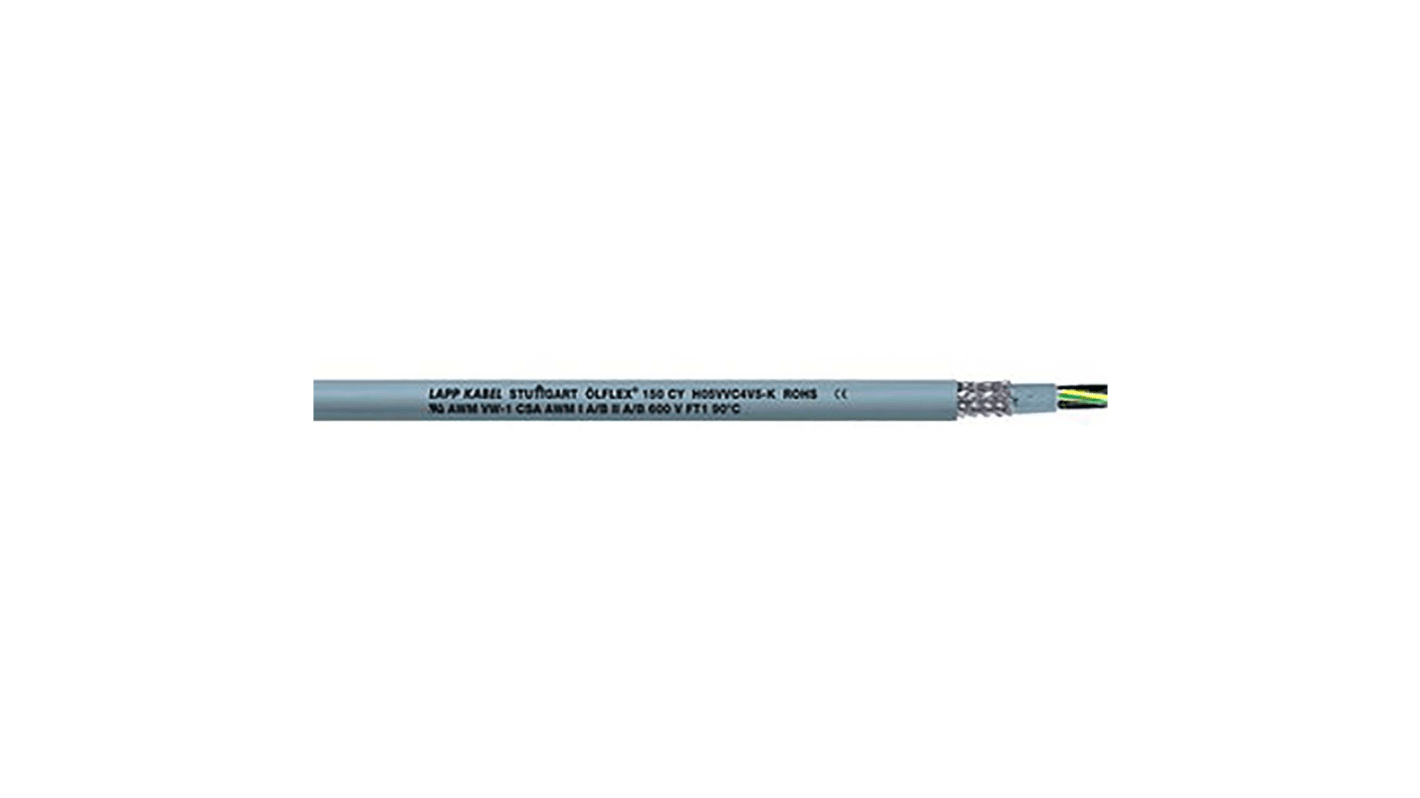

Lapp ÖLFLEX 150 CY Control Cable, 12 Cores, 0.75 mm², CY, Screened, 50m, Grey PVC Sheath, 18 AWG

RS Stock No.:: 807-8893
Mfr. Part No.:: 0015612
Brand:: Lapp

Lapp ÖLFLEX 150 CY Control Cable, 12 Cores, 0.75 mm², CY, Screened, 50m, Grey PVC Sheath, 18 AWG

Subtotal (1 reel of 50 metres)*

£500.08

(exc. VAT)

£600.10

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£500.08	£10.002

*price indicative

RS Stock No.:: 807-8893
Mfr. Part No.:: 0015612
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX 150 CY
	Number of Cores	12
	Cross Sectional Area	0.75 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Control Cable Type	CY
	Sheath Colour	Grey
	Screen Type	Tinned Copper Braid
	Screened/Unscreened	Screened
	Length	50m
	Outer Diameter	14.8mm
	Minimum Bend Radius	6 x Diameter
	Voltage Rating	500 V
	Standards Met	CE, CSA, UL
	CPR Certification	Dca
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+70°C
	Insulation Material	PVC
	Minimum Operating Temperature	-40°C
	Oil Resistant	Yes
	Cable Shape	Multicore
	Drain Wire	Yes

	Select all
	Brand Lapp
	Series ÖLFLEX 150 CY
	Number of Cores 12
	Cross Sectional Area 0.75 mm²
	American Wire Gauge 18 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Control Cable Type CY
	Sheath Colour Grey
	Screen Type Tinned Copper Braid
	Screened/Unscreened Screened
	Length 50m
	Outer Diameter 14.8mm
	Minimum Bend Radius 6 x Diameter
	Voltage Rating 500 V
	Standards Met CE, CSA, UL
	CPR Certification Dca
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +70°C
	Insulation Material PVC
	Minimum Operating Temperature -40°C
	Oil Resistant Yes
	Cable Shape Multicore
	Drain Wire Yes

COO (Country of Origin):: DE

LAPP ÖLFLEX 150 CY Series Control Cable, 12 Number of Cores, 0.75 mm² Conductor Cross Sectional Area - 0015612

This control cable is designed for a variety of industrial applications, boasting a length of 50m and a core configuration of 12. Made with bare copper conductors and housed in a robust PVC sheath, it is both flexible and oil-resistant, making it suitable for environments with potential exposure to oils and chemicals.

Features & Benefits

• Good chemical resistance facilitates diverse usage environments
• High degree of screening ensures minimal interference signals
• Flexible structure allows for easy installation in various settings
• Operating temperature range from -40°C to +70°C ensures reliability

Applications

• Suitable for plant engineering tasks requiring durable wiring
• Ideal for industrial machinery with moderate mechanical loads
• Effective in heating and air-conditioning systems that demand flexibility
• Utilised in electromagnetically sensitive environments to prevent signal disruption

What is the minimum bend radius for this cable during installation?

The minimum bend radius for fixed installations is 6 times the outer diameter, ensuring integrity and performance throughout use.

Can this cable be used in environments where exposure to oils occurs?

Yes, it is specifically designed to be oil-resistant, making it suitable for environments involving water-oil mixtures.

What is the significance of the flame-retardant features of this cable?

The flame-retardant properties ensure that in the event of a fire, the cable is less likely to contribute to the spread of flames, enhancing safety in industrial settings.

Is this cable suitable for outdoor applications?

This cable is not recommended for outdoor use due to its specific design, which caters to dry and damp interiors.
