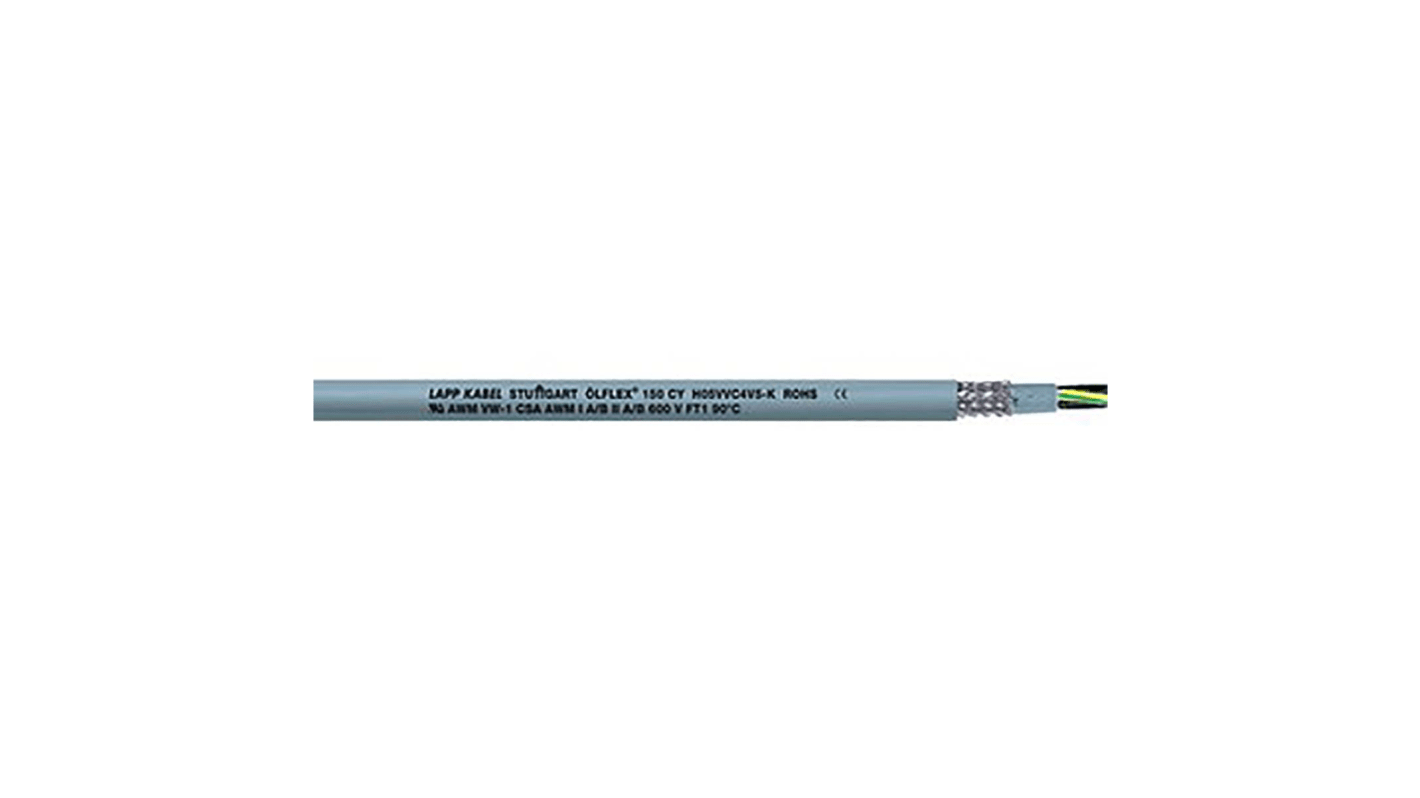

Lapp ÖLFLEX 150 CY Control Cable, 3 Cores, 1 mm², CY, Screened, 50m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 807-8890
- Distrelec Article No.:
- 304-03-727
- Mfr. Part No.:
- 0015703
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£196.19
(exc. VAT)
£235.43
(inc. VAT)
FREE delivery for orders over £50.00
- Plus 6 unit(s) shipping from 22 October 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £196.19 | £3.924 |
*price indicative
- RS Stock No.:
- 807-8890
- Distrelec Article No.:
- 304-03-727
- Mfr. Part No.:
- 0015703
- Brand:
- Lapp
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | ÖLFLEX 150 CY | |
Number of Cores | 3 | |
Cross Sectional Area | 1 mm² | |
American Wire Gauge | 17 AWG | |
Conductor Material | Bare Copper | |
Sheath Material | PVC | |
Control Cable Type | CY | |
Sheath Colour | Grey | |
Screened/Unscreened | Screened | |
Screen Type | Tinned Copper Braid | |
Minimum Bend Radius | 6 x Diameter | |
Length | 50m | |
Outer Diameter | 9.4mm | |
Voltage Rating | 500 V | |
Standards Met | CE, CSA, UL | |
CPR Certification | Dca | |
Maximum Operating Temperature | +70°C | |
Fire Behaviour | Flame Retardant | |
Oil Resistant | Yes | |
Cable Shape | Multicore | |
Insulation Material | PVC | |
Drain Wire | Yes | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series ÖLFLEX 150 CY | ||
Number of Cores 3 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Bare Copper | ||
Sheath Material PVC | ||
Control Cable Type CY | ||
Sheath Colour Grey | ||
Screened/Unscreened Screened | ||
Screen Type Tinned Copper Braid | ||
Minimum Bend Radius 6 x Diameter | ||
Length 50m | ||
Outer Diameter 9.4mm | ||
Voltage Rating 500 V | ||
Standards Met CE, CSA, UL | ||
CPR Certification Dca | ||
Maximum Operating Temperature +70°C | ||
Fire Behaviour Flame Retardant | ||
Oil Resistant Yes | ||
Cable Shape Multicore | ||
Insulation Material PVC | ||
Drain Wire Yes | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
LAPP ÖLFLEX 150 CY Series Control Cable, 3 Number of Cores, 1mm² Cross Sectional Area - 0015703
Features & Benefits
• Screened design minimises interference signals and enhances EMC compliance
• Flame-retardant construction improves safety in installations
• High flexibility allows installation in tight spaces and areas with movement
• Rated for a voltage of 500V to accommodate varied electrical usage
Applications
• Ideal for industrial machinery requiring reliable connectivity
• Suitable for heating and air conditioning systems requiring durable wiring
• Functions well in areas sensitive to electromagnetic interference
• Designed for use in both dry and damp interiors, including water and oil environments
What is the minimum bending radius for this cable during installation?
How does the construction contribute to the cable's longevity in industrial applications?
Can this cable be used in areas with extreme temperatures?
