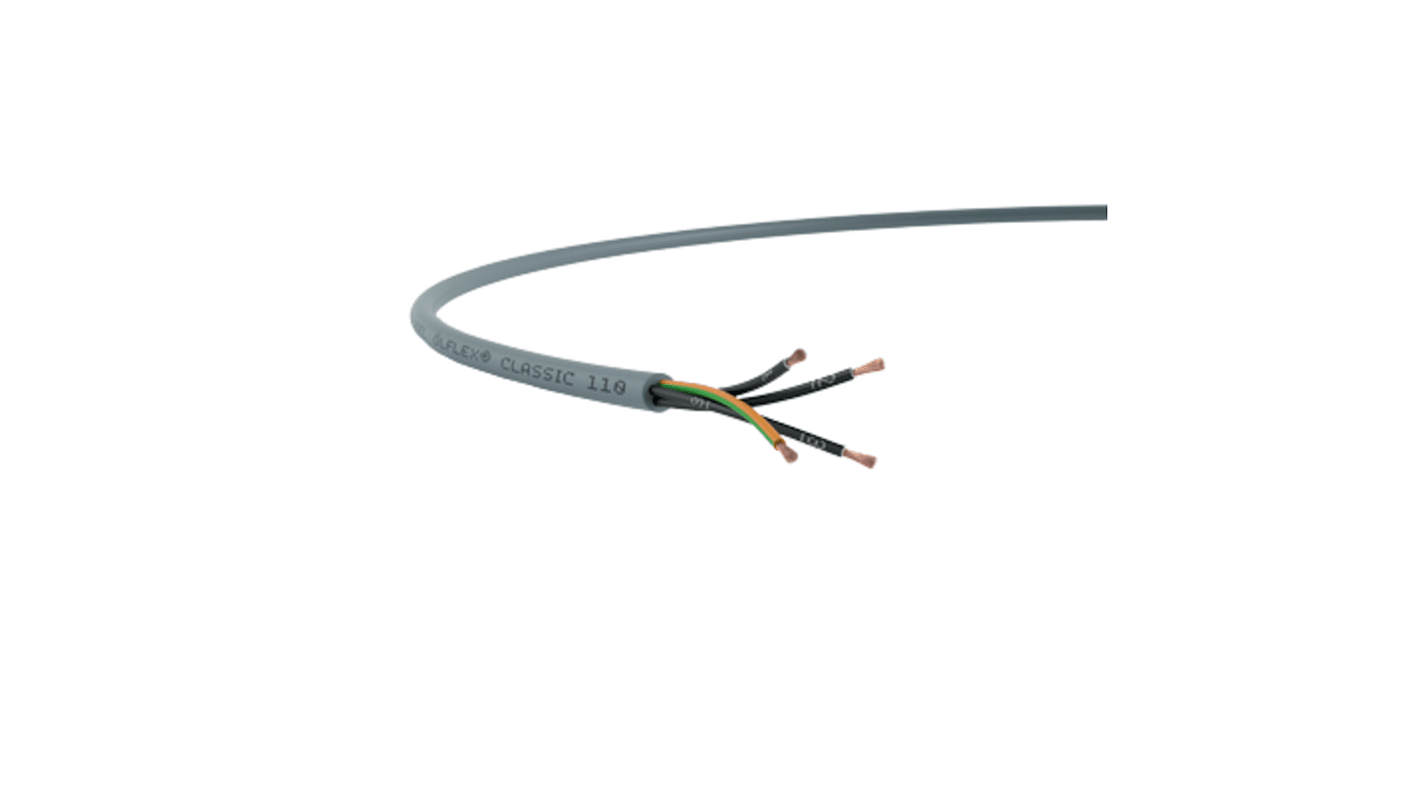

Lapp ÖLFLEX CLASSIC 110 Control Cable, 7 Cores, 1 mm², YY, Unscreened, 100m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 787-4088
- Mfr. Part No.:
- 1119207
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£284.43
(exc. VAT)
£341.32
(inc. VAT)
FREE delivery for orders over £50.00
- 12 unit(s) ready to ship
- Plus 7 unit(s) shipping from 02 October 2025
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £284.43 | £2.844 |
*price indicative
- RS Stock No.:
- 787-4088
- Mfr. Part No.:
- 1119207
- Brand:
- Lapp
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | ÖLFLEX CLASSIC 110 | |
Number of Cores | 7 | |
Cross Sectional Area | 1 mm² | |
American Wire Gauge | 17 AWG | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Control Cable Type | YY | |
Sheath Colour | Grey | |
Screened/Unscreened | Unscreened | |
Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 10 x D | |
Length | 100m | |
Outer Diameter | 8mm | |
Voltage Rating | 300/500 V | |
Current Rating | 15 A | |
Standards Met | IEC 60332-1-2 | |
CPR Certification | Eca | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Insulation Material | PVC | |
Core Strands | 32/0.2 mm | |
Earth Cable | Yes | |
Cable Shape | Twisted | |
Filler Material | Non-Wicking Filler | |
Minimum Operating Temperature | -40°C | |
Oil Resistant | Yes | |
Conductor Resistance | 19.5 Ω/km | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 110 | ||
Number of Cores 7 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Control Cable Type YY | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Minimum Bend Radius Fixed - 4 x D Occasional flexing - 10 x D | ||
Length 100m | ||
Outer Diameter 8mm | ||
Voltage Rating 300/500 V | ||
Current Rating 15 A | ||
Standards Met IEC 60332-1-2 | ||
CPR Certification Eca | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Insulation Material PVC | ||
Core Strands 32/0.2 mm | ||
Earth Cable Yes | ||
Cable Shape Twisted | ||
Filler Material Non-Wicking Filler | ||
Minimum Operating Temperature -40°C | ||
Oil Resistant Yes | ||
Conductor Resistance 19.5 Ω/km | ||
