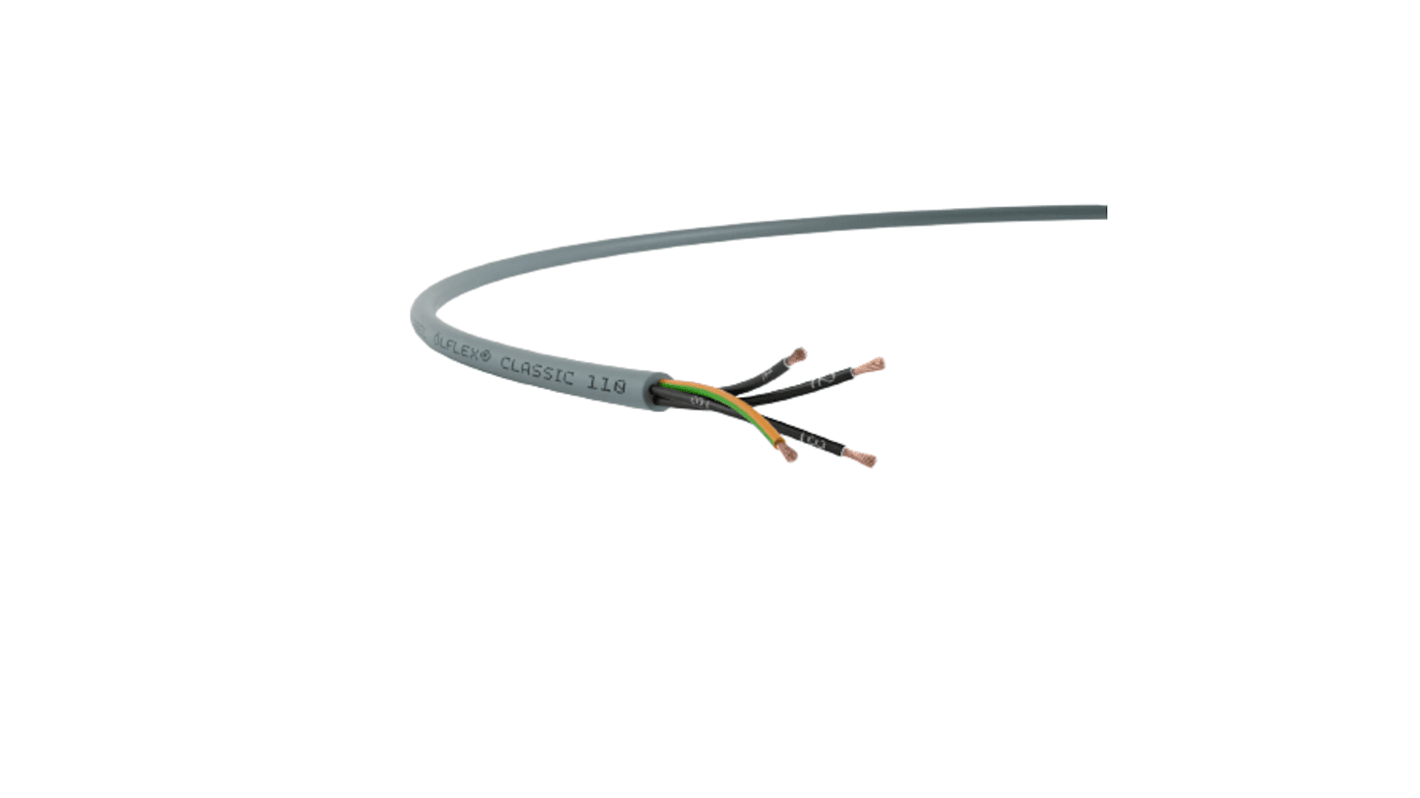

From Lapp, the Olflex Classic 110 YY Cable is a robust cable designed for use under medium mechanical stresses, such as power chain applications. The cable is suitable for fixed installation purposes, as well as those that require occasional flexing and movement.

This YY control cable consists of fine wire copper strands, with a special PVC conductor insulation and sheathing that is suitable for use in both dry and humid conditions. The cable also has a good resistance to chemicals and oils, making it ideal for challenging industrial environments.

YY cable is an excellent control cable solution for a variety of applications.

Features and Benefits

• Flame-retardant according to IEC 60332-1-2
• Oil-resistant according to DIN EN 50290-2-22 (TM54)
• Chemical resistance at room temperature
• Suitable for dry and humid applications
• Resistant to bending

Applications

Lapp Olflex Classic 110 YY cable is suitable for a wide range of uses, and is often used in control and measurement applications. It is suitable for some torsional applications, and as such is can be found in wind turbine generators. This unscreened YY cable has a robust and reliable nature makes it ideal for;

• Machine Tools
• Plant engineering
• Refrigeration plant sectors
• Construction Industries
• Transport
• Smart Homes

Accessories

Lapp cables should be used alongside accessories that match their capabilities. Lapp provides a variety of reliable and easy-to-fit cable glands, such as the Skintop Click series.

• 560-678 is an M12 IP68 Skintop Click Cable Gland
• 475-091 is an M16 IP68 Skintop Click Cable Gland
• 475-136 is an M20 IP68 Skintop Click Cable Gland
• 475-132 is an M25 IP68 Skintop Click Cable Gland
• 560-688 is an M32 IP68 Skintop Click Cable Gland

VDE, This cable confirms to ECD 73/23/EEC (low voltage directive).

Send data between control systems and power supplies with this durable control cable from LAPP. It's an unscreened cable, making it a practical choice for applications where there's minimal risk of interference from other devices. The cable consists of 7 cores covered with PVC insulation and a durable PVC sheath. As this material is resistant to wear and impact, it offers effective protection in heavy-duty industrial environments. A wide operating temperature range of -40°C to +80°C in fixed installations, makes this a suitable option for use in harsh conditions.

• Unterminated ends let you pick the most appropriate connector for your application
• Copper conductor material is highly conductive and ensures reliable signal transmission
• Compact outer diameter of 8mm for installation in tight spaces
• Earth wire sends excess current into the ground for enhanced electrical safety

• Machine automation
• Beverage manufacturing
• Packaging conveyors
• Waste management
• Robotic process controls

Yes, for increased safety, this control cable is flame-retardant and won't promote the spread of flames in the event of a fire.

VDE 0295, Part 5
