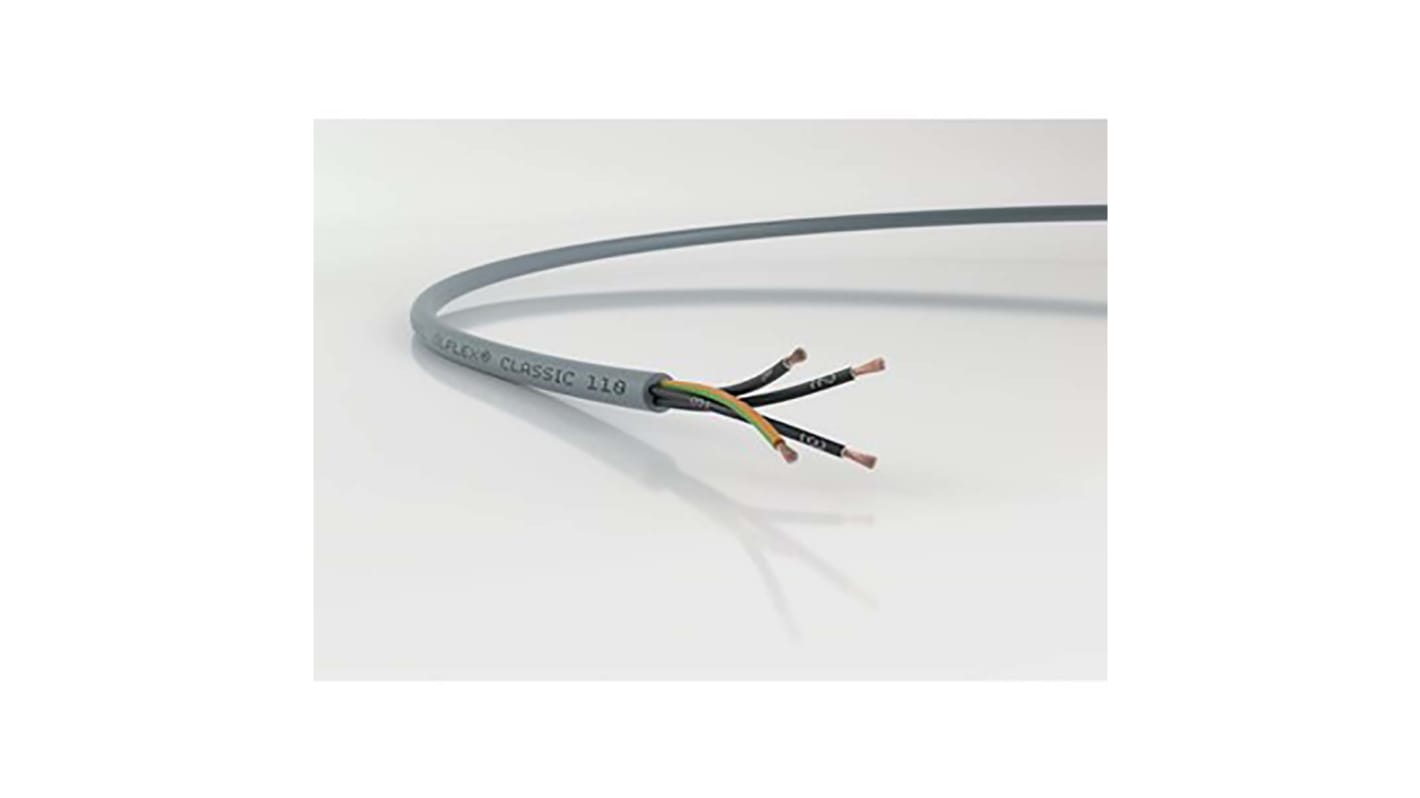

Lapp ÖLFLEX CLASSIC 110 Control Cable, 18 Cores, 1 mm² CSA 17 AWG, Unscreened, 50 m, Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 787-4044
- Distrelec Article No.:
- 300-49-485
- Mfr. Part No.:
- 1119218
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£335.89
(exc. VAT)
£403.07
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 11 unit(s) shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £335.89 | £6.718 |
*price indicative
- RS Stock No.:
- 787-4044
- Distrelec Article No.:
- 300-49-485
- Mfr. Part No.:
- 1119218
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Control Cable | |
| Series | ÖLFLEX CLASSIC 110 | |
| Number of Cores | 18 | |
| Cross Sectional Area | 1 mm² | |
| Conductor Material | Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 50m | |
| Outside Diameter | 12.7 mm | |
| Voltage | 500 V | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE | |
| American Wire Gauge | 17AWG | |
| Fire Behaviour | Flame Retardant | |
| Distrelec Product Id | 30049485 | |
| Core Strands | 32 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Control Cable | ||
Series ÖLFLEX CLASSIC 110 | ||
Number of Cores 18 | ||
Cross Sectional Area 1 mm² | ||
Conductor Material Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Cable Length 50m | ||
Outside Diameter 12.7 mm | ||
Voltage 500 V | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE | ||
American Wire Gauge 17AWG | ||
Fire Behaviour Flame Retardant | ||
Distrelec Product Id 30049485 | ||
Core Strands 32 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
LAPP Multicore Control Cable, 18 Cores, 50m Length - ÖLFLEX Series - 1119218
Choose this LAPP control cable to reliably transmit information across your equipment. It has 18 conductor cores, so packs multiple data connections into one cable, saving space in busy wiring systems. As the cable's bare copper cores are highly conductive, it delivers efficient and reliable performance. PVC insulation that resists heat, oil and chemicals means this is a suitable choice for demanding environments.
Features & Benefits
• Included earth cable minimises the risk of electric shocks
• Stranded conductor cores provide high flexibility for installation in confined areas
• Numbered conductors make it easy to identify connections
• Non-wicking filler material prevents corrosion from moisture for use in damp environments
Applications
• Refrigeration systems
• Control cabinets
• Manufacturing industry
Is this control cable suitable for use in applications with EMI?
This cable is unscreened, meaning external shielding would be needed if it was used where EMI was likely.
