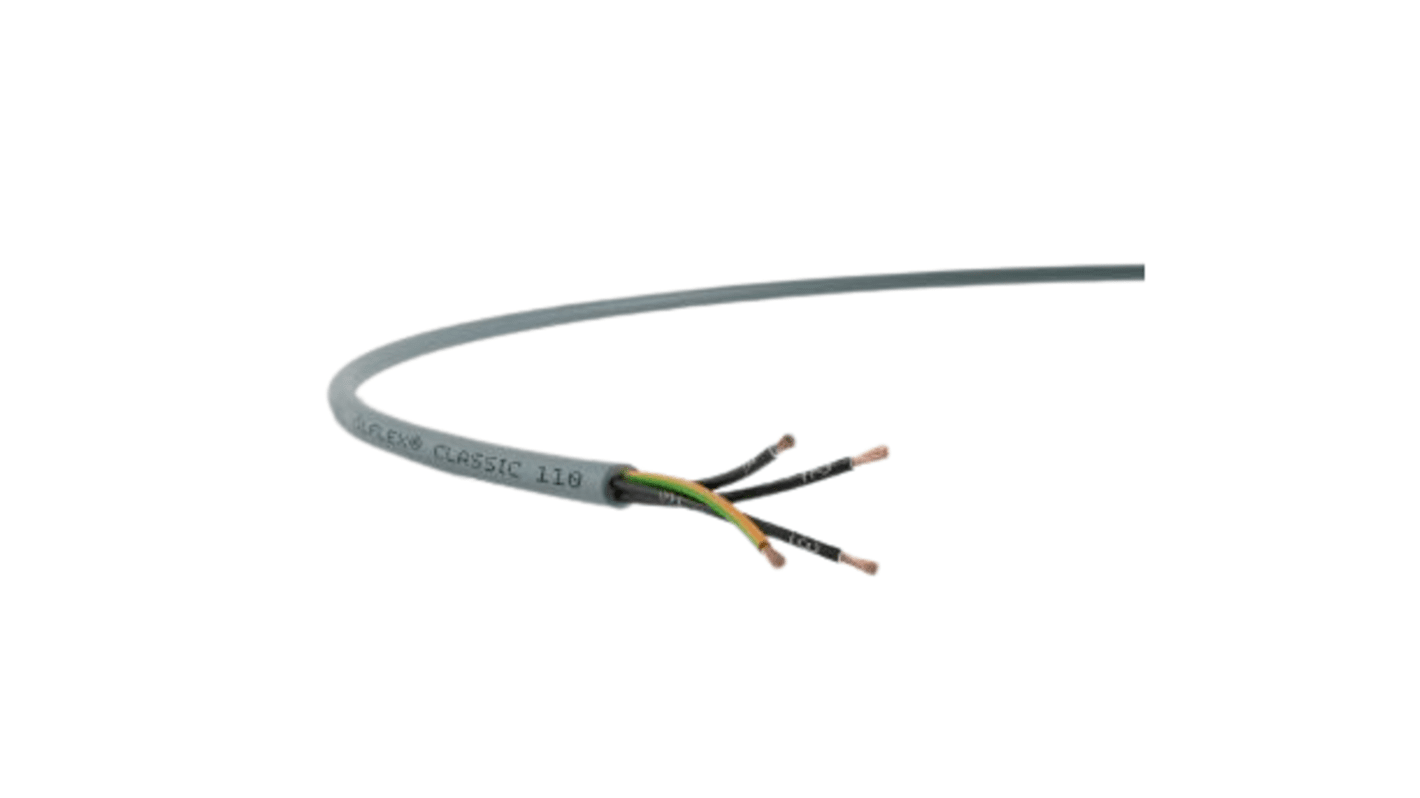

Lapp ÖLFLEX CLASSIC 110 YY Control Cable, 18 Cores, 1.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 16 AWG

RS Stock No.:: 445-4338
Mfr. Part No.:: 1119318
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 110 YY Control Cable, 18 Cores, 1.5 mm², YY, Unscreened, 50m, Grey PVC Sheath, 16 AWG

Subtotal (1 reel of 50 metres)*

£475.68

(exc. VAT)

£570.82

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

Plus 4 unit(s) shipping from 22 October 2025
Plus 3 unit(s) shipping from 24 October 2025
Plus 3 unit(s) shipping from 07 November 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£475.68	£9.514

*price indicative

RS Stock No.:: 445-4338
Mfr. Part No.:: 1119318
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 110 YY
	Number of Cores	18
	Cross Sectional Area	1.5 mm²
	American Wire Gauge	16 AWG
	Conductor Material	Copper
	Sheath Material	PVC
	Control Cable Type	YY
	Sheath Colour	Grey
	Screened/Unscreened	Unscreened
	Length	50m
	Outer Diameter	14.4mm
	Minimum Bend Radius	Fixed - 4 x D Occasional flexing - 10 x D
	Voltage Rating	300/500 V
	Current Rating	18 A
	Standards Met	IEC 60332-1-2
	CPR Certification	Eca
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant
	Conductor Resistance	13.5 Ω/km
	Filler Material	Non-Wicking Filler
	Bedding Material	PVC
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C
	Insulation Material	PVC
	Earth Cable	Yes
	Core Strands	30/0.25 mm

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 110 YY
	Number of Cores 18
	Cross Sectional Area 1.5 mm²
	American Wire Gauge 16 AWG
	Conductor Material Copper
	Sheath Material PVC
	Control Cable Type YY
	Sheath Colour Grey
	Screened/Unscreened Unscreened
	Length 50m
	Outer Diameter 14.4mm
	Minimum Bend Radius Fixed - 4 x D Occasional flexing - 10 x D
	Voltage Rating 300/500 V
	Current Rating 18 A
	Standards Met IEC 60332-1-2
	CPR Certification Eca
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant
	Conductor Resistance 13.5 Ω/km
	Filler Material Non-Wicking Filler
	Bedding Material PVC
	Oil Resistant Yes
	Minimum Operating Temperature -40°C
	Insulation Material PVC
	Earth Cable Yes
	Core Strands 30/0.25 mm

COO (Country of Origin):: DE

LAPP Control Cable, 16AWG Gauge, ±14.4mm Outside Diameter - ÖLFLEX CLASSIC 110 YY Series - 1119318

Is it time to seize control of your automated network? Then turn to this grey control cable from LAPP. It lets you transmit signals to attached components so you can effectively manage your industrial process. A wide operating temperature range of -40°C to +80°C means the cable can handle the heat in harsh workplaces. And as it's protected by lightweight PVC, it's more than a match for harsh environments where impacts and abrasion are likely.

Features & Benefits

• 4000V test voltage for reliable electrical safety
• Unshielded cable class, so it's light and flexible for easy installation
• High voltage rating of 500V, so suitable for use in powerful electrical systems

Applications

• Plant installations
• Engineering technology
• Automotive industry
• Bottling facilities

How many cores does this unit have?

The cable has 18 cores, each made up of 30 strands of copper wire, so it can control multiple functions in complex systems.

Standards

VDE 0295, Part 5
