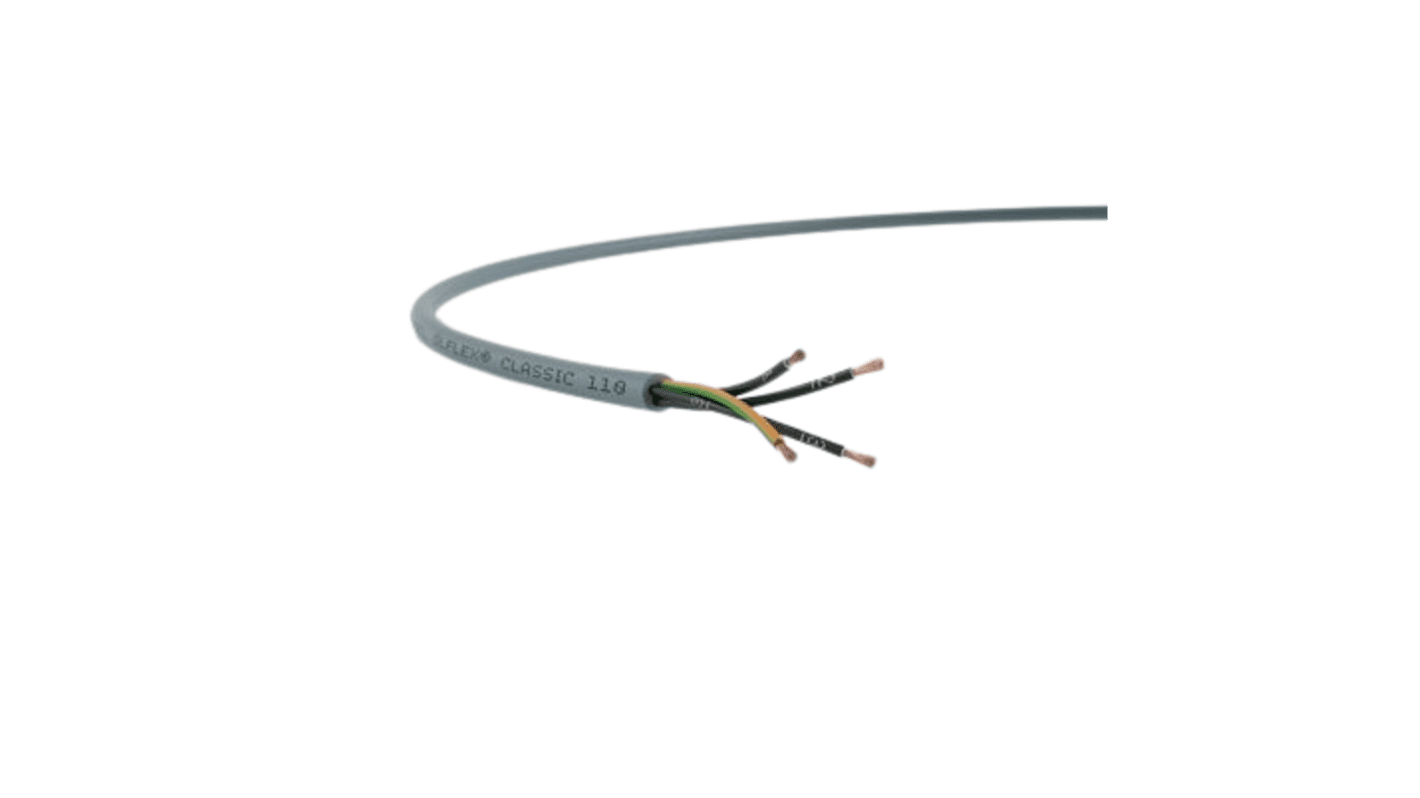

Lapp ÖLFLEX CLASSIC 110 Control Cable, 5 Cores, 1 mm², YY, Unscreened, 100m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 787-4079
- Mfr. Part No.:
- 1119205
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£216.97
(exc. VAT)
£260.36
(inc. VAT)
FREE delivery for orders over £50.00
- 4 unit(s) ready to ship
- Plus 4 unit(s) shipping from 21 November 2025
- Plus 999,999,991 unit(s) shipping from 02 January 2026
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £216.97 | £2.17 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 50 Metre(s)
£75.78
(exc. VAT)
£90.94
(inc. VAT)
- RS Stock No.:
- 787-4079
- Mfr. Part No.:
- 1119205
- Brand:
- Lapp
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | ÖLFLEX CLASSIC 110 | |
Number of Cores | 5 | |
Cross Sectional Area | 1 mm² | |
American Wire Gauge | 17 AWG | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Control Cable Type | YY | |
Sheath Colour | Grey | |
Screened/Unscreened | Unscreened | |
Length | 100m | |
Outer Diameter | 7.1mm | |
Minimum Bend Radius | Fixed - 4 x D Occasional flexing - 10 x D | |
Voltage Rating | 300/500 V | |
Current Rating | 15 A | |
CPR Certification | Eca | |
Standards Met | EN 50525-2-51 | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Conductor Resistance | 19.5 Ω/km | |
Earth Cable | Yes | |
Filler Material | Non-Wicking Filler | |
Minimum Operating Temperature | -40°C | |
Oil Resistant | Yes | |
Cable Shape | Multicore | |
Core Strands | 32/0.2 mm | |
Insulation Material | PVC | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 110 | ||
Number of Cores 5 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Control Cable Type YY | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 100m | ||
Outer Diameter 7.1mm | ||
Minimum Bend Radius Fixed - 4 x D Occasional flexing - 10 x D | ||
Voltage Rating 300/500 V | ||
Current Rating 15 A | ||
CPR Certification Eca | ||
Standards Met EN 50525-2-51 | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Conductor Resistance 19.5 Ω/km | ||
Earth Cable Yes | ||
Filler Material Non-Wicking Filler | ||
Minimum Operating Temperature -40°C | ||
Oil Resistant Yes | ||
Cable Shape Multicore | ||
Core Strands 32/0.2 mm | ||
Insulation Material PVC | ||
- COO (Country of Origin):
- DE
LAPP ÖLFLEX CLASSIC 110 Series Control Cable, 5 Cores, 1mm² Cross Sectional Area - 1119205
Features & Benefits
• Flame retardant design meets strict fire safety standards
• Unscreened structure facilitates straightforward installation
• Highly flexible for enhanced movement capabilities
• Resistance to oils and chemicals promotes longevity
Applications
• Utilised in plant engineering and construction sectors
• Applicable in conveyor systems and assembly lines
• Effective in measurement and control technology setups
• Designed for use in wind turbines for torsional
How does the temperature range affect the cable's application?
What considerations should be taken when installing this cable outdoors?
How does the flame retardant feature benefit this control cable in industrial settings?
