Lapp ÖLFLEX CLASSIC 135 CH Control Cable, 3 Cores, 0.75 mm² CSA 18 AWG, Screened, 50 m, Grey Zero Halogen Sheath
- RS Stock No.:
- 719-1633
- Mfr. Part No.:
- 1123233
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£154.05
(exc. VAT)
£184.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
- Plus 7 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £154.05 | £3.081 |
*price indicative
- RS Stock No.:
- 719-1633
- Mfr. Part No.:
- 1123233
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Control Cable | |
| Series | ÖLFLEX CLASSIC 135 CH | |
| Number of Cores | 3 | |
| Cross Sectional Area | 0.75 mm² | |
| Conductor Material | Bare Copper | |
| Jacket Material | Zero Halogen | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Screened | |
| Outside Diameter | 6.5 mm | |
| Cable Length | 50m | |
| Voltage | 500 V | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE, UL, RoHS | |
| Fire Behaviour | Flame Retardant, Low Smoke Zero Halogen (LSZH) | |
| American Wire Gauge | 18AWG | |
| Core Strands | 3 | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Control Cable | ||
Series ÖLFLEX CLASSIC 135 CH | ||
Number of Cores 3 | ||
Cross Sectional Area 0.75 mm² | ||
Conductor Material Bare Copper | ||
Jacket Material Zero Halogen | ||
Jacket Colour Grey | ||
Screened/Unscreened Screened | ||
Outside Diameter 6.5 mm | ||
Cable Length 50m | ||
Voltage 500 V | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE, UL, RoHS | ||
Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH) | ||
American Wire Gauge 18AWG | ||
Core Strands 3 | ||

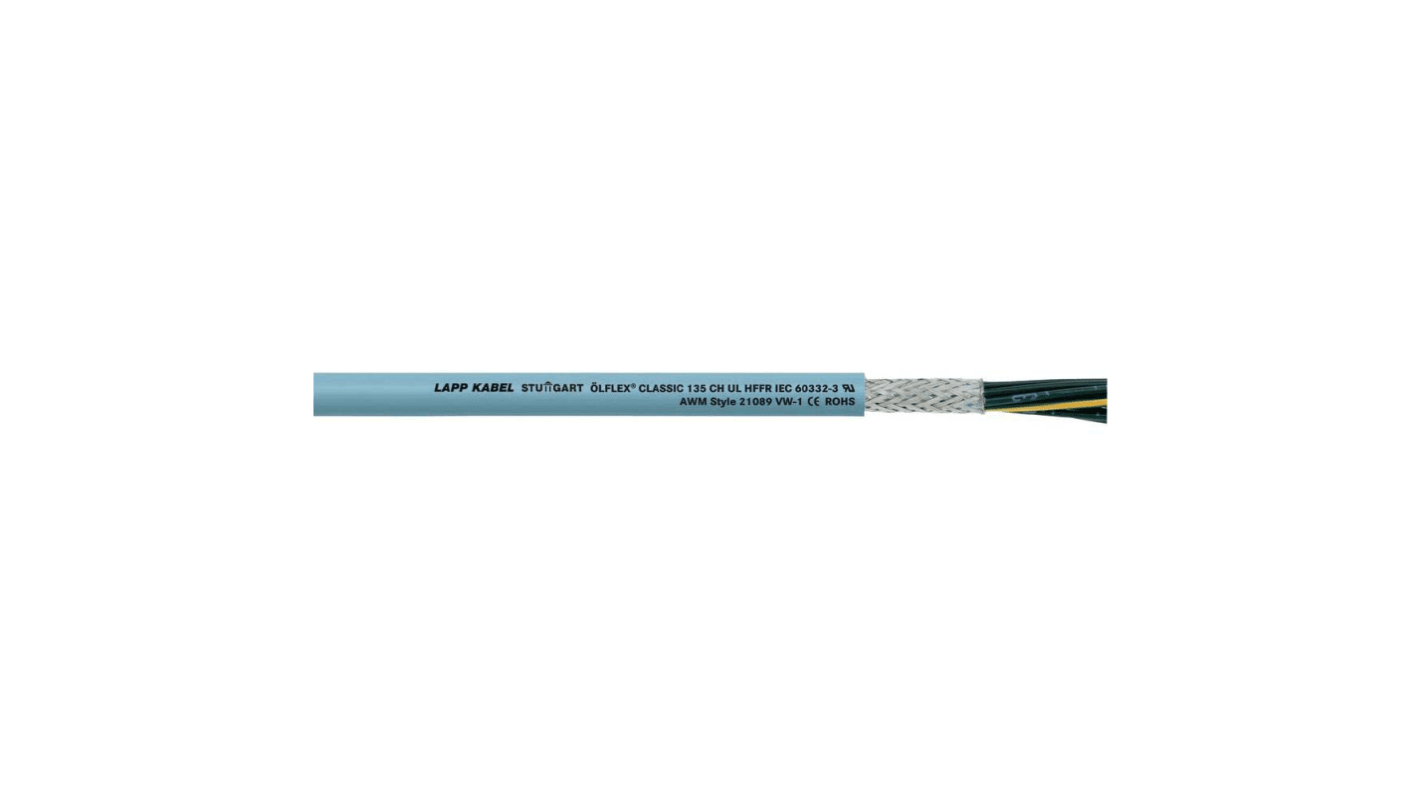

LAPP Control Cable, 3 Cores, CY Type - ÖLFLEX CLASSIC 135 Series - 1123233
Need a flexible solution to direct messages to your automated system? Try this control cable from LAPP. With a small outer diameter of 6.5mm, it's well-suited for use in tight or awkward spaces. The grey insulating sheath is flame-retardant, making the cable an ideal choice for public environments such as train stations, where safety is paramount. As this product is also halogen-free, it won't produce any toxic chemicals in the event of a fire.
Features & Benefits
• Tinned-copper braiding prevents signal loss and interference from nearby sources
• Broad operating temperature range of -40°C to +80°C for fixed installations, suitable for extreme environments
• Drain wire reduces the risk of damage by earthing electric surges
Applications
• Public buildings
• Plant engineering
• Manufacturing facilities
How long is this cable?
This cable is supplied in lengths of 50m, so you'll have plenty on hand for long runs or multiple smaller jobs.
