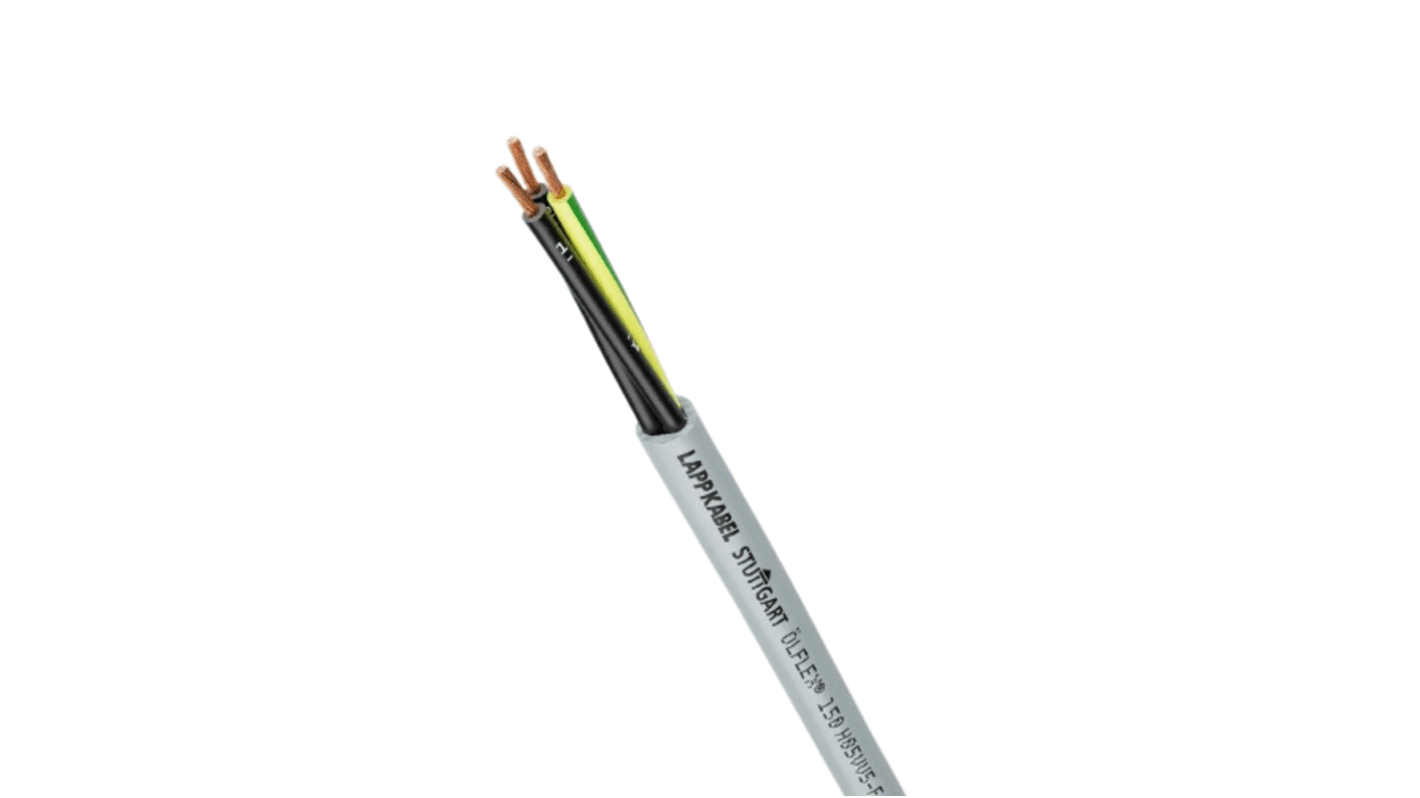

Lapp ÖLFLEX 150 Control Cable, 7 Cores, 1 mm², Unscreened, 50m, Grey PVC Sheath, 17 AWG
- RS Stock No.:
- 444-0834
- Distrelec Article No.:
- 304-03-716
- Mfr. Part No.:
- 0015207
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£229.69
(exc. VAT)
£275.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 7 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £229.69 | £4.594 |
*price indicative
- RS Stock No.:
- 444-0834
- Distrelec Article No.:
- 304-03-716
- Mfr. Part No.:
- 0015207
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX 150 | |
| Number of Cores | 7 | |
| Cross Sectional Area | 1 mm² | |
| American Wire Gauge | 17 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screen Type | Unscreened | |
| Screened/Unscreened | Unscreened | |
| Outer Diameter | 10.4mm | |
| Length | 50m | |
| Minimum Bend Radius | 4 x Diameter | |
| Voltage Rating | 500 V | |
| Standards Met | CE, CSA, UL | |
| CPR Certification | Eca | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +70°C | |
| Drain Wire | Yes | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX 150 | ||
Number of Cores 7 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screen Type Unscreened | ||
Screened/Unscreened Unscreened | ||
Outer Diameter 10.4mm | ||
Length 50m | ||
Minimum Bend Radius 4 x Diameter | ||
Voltage Rating 500 V | ||
Standards Met CE, CSA, UL | ||
CPR Certification Eca | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +70°C | ||
Drain Wire Yes | ||
Insulation Material PVC | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
LAPP ÖLFLEX 150 Series Control Cable, 7 Cores, 1mm² Cross Sectional Area - 0015207
This control cable is designed for various industrial applications, featuring a 7 core configuration with a cross-sectional area of 1mm². The flexible electrical cable is well-suited for use in dry, damp, and wet interiors and measures 50m in length. It remains operational at a minimum temperature of -40°C and a maximum of +70°C.
Features & Benefits
• Unscreened design simplifies installation in controlled environments
• PVC sheath cable provides excellent chemical and oil resistance
• Flame-retardant cable enhances safety in critical use
• Rated for 300/500V voltages, ensuring versatility in usage
• Fine-wire strands enhance conductivity and reliability
• PVC sheath cable provides excellent chemical and oil resistance
• Flame-retardant cable enhances safety in critical use
• Rated for 300/500V voltages, ensuring versatility in usage
• Fine-wire strands enhance conductivity and reliability
Applications
• Ideal for plant engineering projects requiring high flexibility
• Utilised in industrial machinery installations under medium loads
• Suitable for heating and air-conditioning system wiring
• Deployment in machine tools for enhanced operational efficacy
• Effective for fixed installations in environments with potential moisture
• Utilised in industrial machinery installations under medium loads
• Suitable for heating and air-conditioning system wiring
• Deployment in machine tools for enhanced operational efficacy
• Effective for fixed installations in environments with potential moisture
How does the oil resistance of this cable benefit its application in machinery?
The oil-resistant properties comply with EN 50363-4-1, ensuring durability in environments where exposure to lubricants or fluids may occur, thus prolonging the cable's lifespan in industrial settings.
What specific standards does this cable adhere to, and why is it important?
It meets CE, CSA, and UL standards, guaranteeing compliance with electrical safety regulations, which is crucial for users needing assurance of product quality and safety in various installations.
In terms of installation flexibility, what features support diverse usage scenarios?
The cable's design allows for fixed installations while enabling occasional flexing, suitable for systems with moderate mechanical stress, facilitating adaptability in different operational conditions.
Standards
VDE 0295, part 5/IEC60228 C1·5
