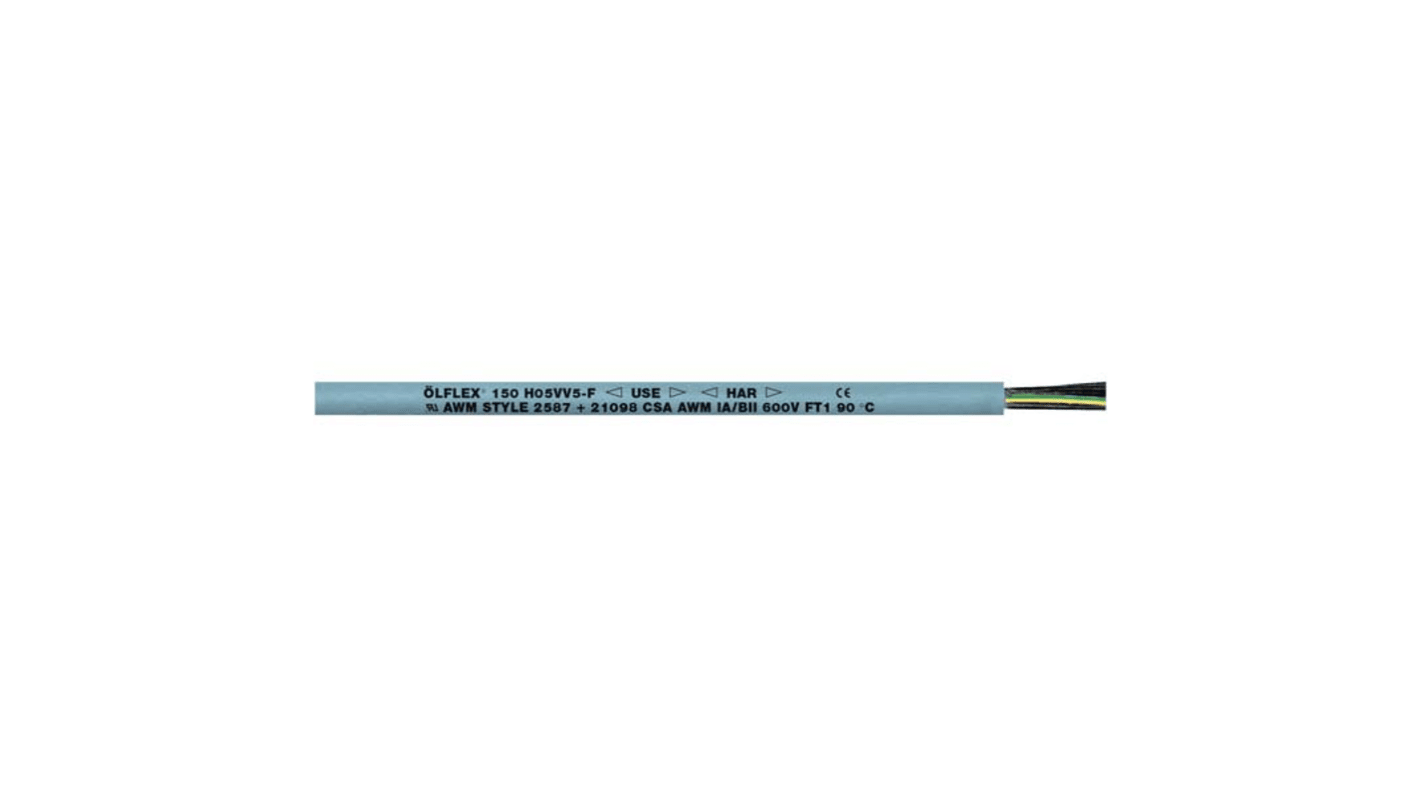

From Lapp, OLFLEX 150 Quattro cables are an oil resistant multi-standard cable suited for a variety of applications. The harmonised cable has H05VV5-F and AWM approvals. With a special PVC-based compound sheath, it also features a high degree of chemical resistance, meaning it is suitable for specialist industrial environments.

The cable is made up fine strands of bare copper wire, twisted in layers, with a PVC core insulation. The Quattro 150 cable has multiple certifications and is suitable for wide range of applications. A such the series is available with varying numbers of cores, conductor sizes, and dimensions.

Though they are suitable for use in both dry and wet environments, these cables are not suitable for outdoor applications.

Features and Benefits

• Oil-resistant according to EN 50363-4-1: TM5
• Flame-retardant according to IEC 60332-1-2
• Chemical resistance
• PVC Core Insulation
• Twisted cores in layers
• Silver-grey RAL 7001
• Nominal Voltage 300/500V

Applications

Lapp OLFLEX 150 Quattro cables are harmonised (HAR) and suitable for occasional flexing, as such are widely used in fixed installations with medium mechanical load. Their intrinsic resistance makes them particularly suited for wiring in;

• HVAC Systems
• Plant Engineering
• Machine Tools

Accessories

OLFLEX Quattro cables can be securely managed through panel and machine housing with the Lapp range of cable glands, such as the Skintop Click range of easy-fit glands.

• 560-678 is an M12 Skintop Click Cable Gland for 3.5-7mm Cable Diameters
• 475-091 is an M16 Skintop Click Cable Gland for 4.5-10mm Cable Diameters
• 475-136 is an M20 Skintop Click Cable Gland for 7-13mm Cable Diameters
• 475-132 is an M25 Skintop Click Cable Gland for 9-17mm Cable Diameters
• 560-688 is an M32 Skintop Click Cable Gland for 11-21mm Cable Diameters

H05VV5-HAR, HD21.13, VDE 0295, part 5/IEC60228 C1.5

This control cable by Lapp is a versatile solution for various applications in multiple industries. With flame-retardant properties, this cable ensures high-quality performance.

• Flame retardant design for enhanced safety in operation
• 18 AWG copper conductor for efficient transmission
• PVC insulation for durability and protection
• CE, CSA, UL standards compliance for quality assurance

• Ideal for control systems in industrial automation
• Suitable for electronic equipment wiring
• Used in electrical panel installations

This control cable is designed to operate efficiently in temperatures ranging from -40 °C to +70 °C.

With 7 cores and 0.75 mm² cross-sectional area, this cable is suitable for a wide range of applications in the automation industry.

Yes, the PVC sheath material and flame retardant properties make it suitable for both indoor and outdoor installations.

VDE 0295, part 5/IEC60228 C1·5
