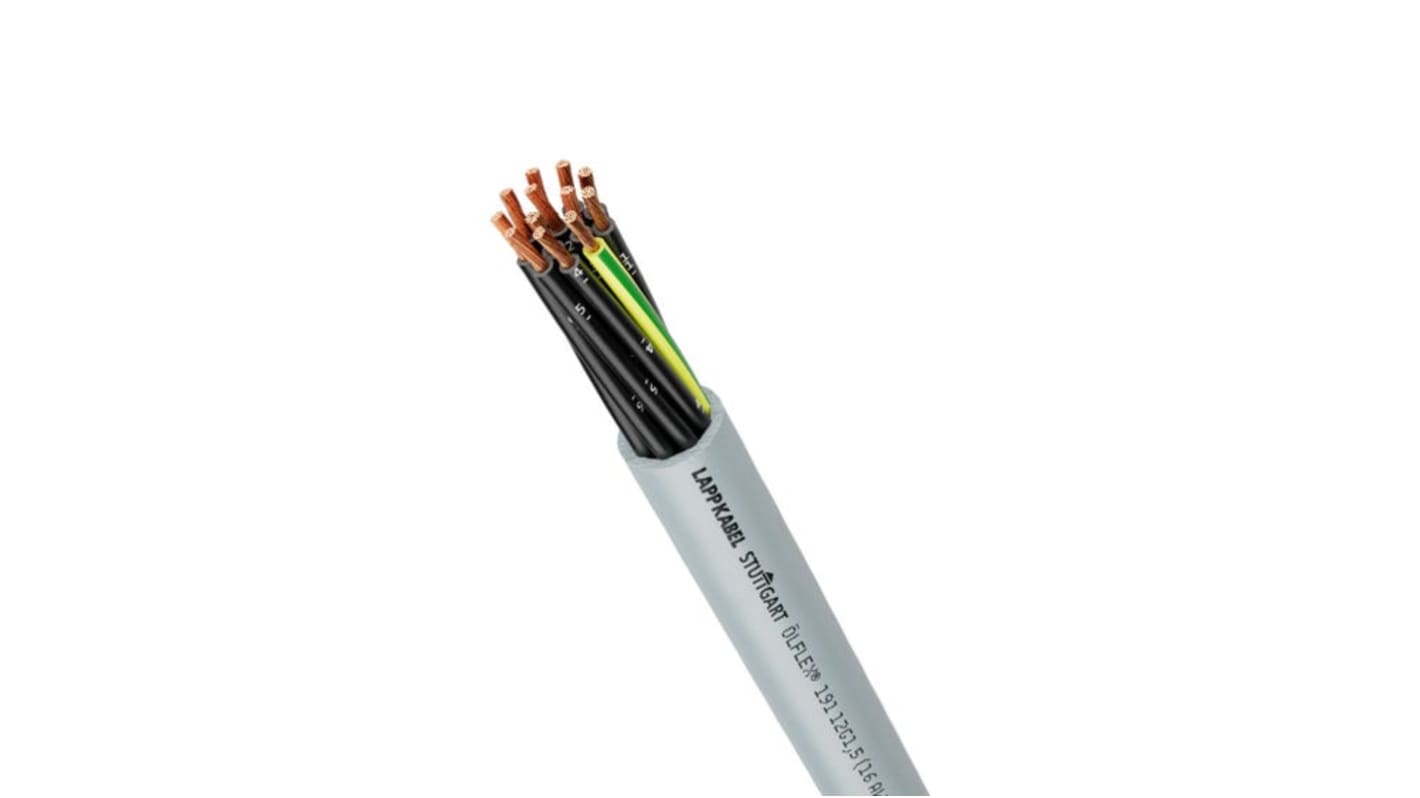

Lapp ÖLFLEX 191 Control Cable, 4 Cores 12 AWG, Unscreened, 100 m, Grey Polyvinyl Chloride Sheath
- RS Stock No.:
- 276-0959
- Mfr. Part No.:
- 0011161
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£583.95
(exc. VAT)
£700.74
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 05 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £583.95 | £11.679 |
*price indicative
- RS Stock No.:
- 276-0959
- Mfr. Part No.:
- 0011161
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Control Cable | |
| Series | ÖLFLEX 191 | |
| Number of Cores | 4 | |
| Conductor Material | Bare Copper | |
| Jacket Material | Polyvinyl Chloride | |
| Jacket Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 100m | |
| Conductor Type | Stranded | |
| Standards/Approvals | UL AWM Style 21098 (File No. 63634), CSA AWM I A/B, II A/B (File No. LL 53776) | |
| Maximum Operating Temperature | 90°C | |
| American Wire Gauge | 12AWG | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Control Cable | ||
Series ÖLFLEX 191 | ||
Number of Cores 4 | ||
Conductor Material Bare Copper | ||
Jacket Material Polyvinyl Chloride | ||
Jacket Colour Grey | ||
Screened/Unscreened Unscreened | ||
Cable Length 100m | ||
Conductor Type Stranded | ||
Standards/Approvals UL AWM Style 21098 (File No. 63634), CSA AWM I A/B, II A/B (File No. LL 53776) | ||
Maximum Operating Temperature 90°C | ||
American Wire Gauge 12AWG | ||
- COO (Country of Origin):
- DE
The Lapp Oil resistant control cables for the European, Northern American and Canadian market for occasional flexible use and fixed installation subject to normal mechanical load conditions. They are also suitable for use in dry, damp or wet areas. If using outdoors, observe the indicated temperature range and use with UV protection.
Flammability retardant
Minimum bending radius
DIN EN 50525 2 51 standard
Oil resistant
