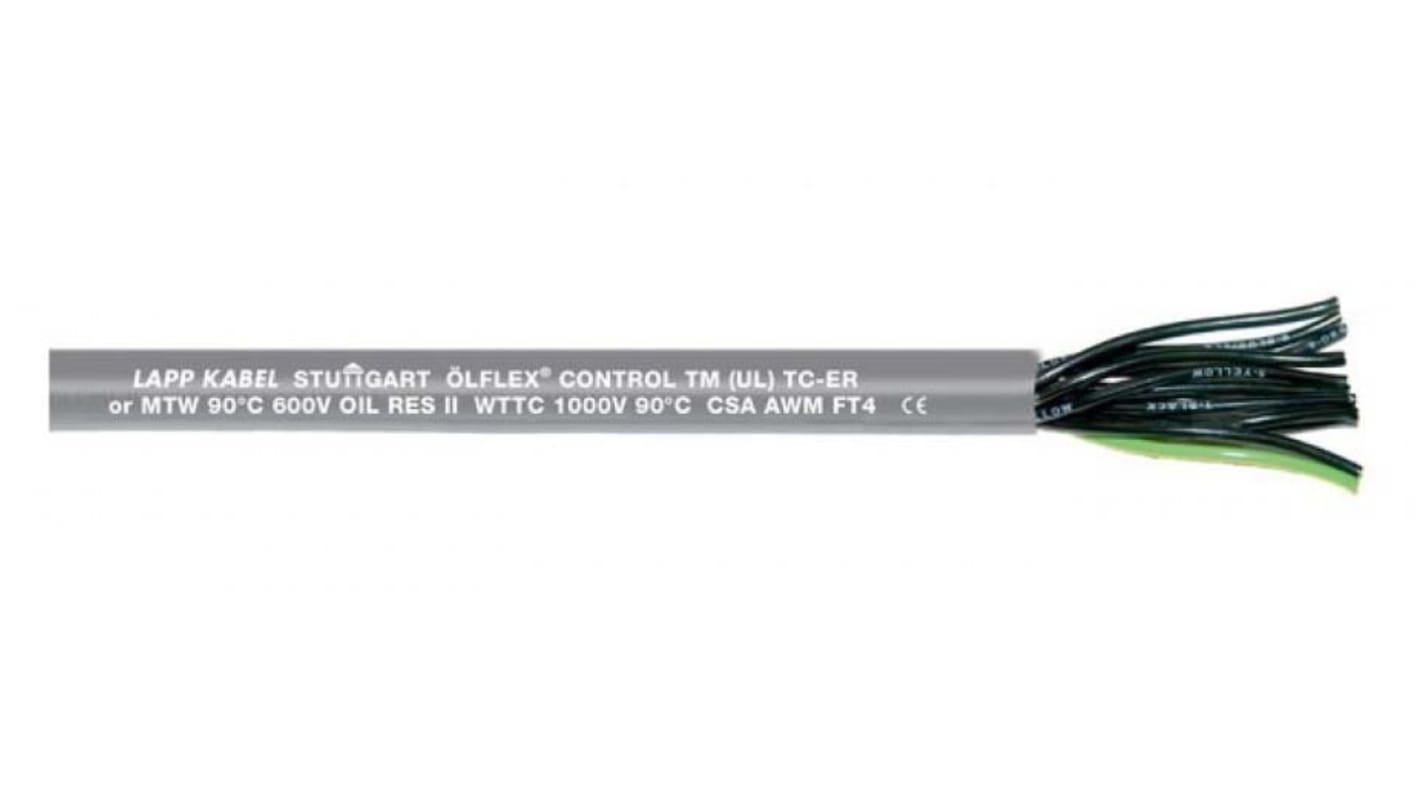

Lapp ÖLFLEX CONTROL TM Control Cable, 3 Cores, 4 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 11 AWG

RS Stock No.:: 807-9616
Mfr. Part No.:: 281203
Brand:: Lapp

Lapp ÖLFLEX CONTROL TM Control Cable, 3 Cores, 4 mm², YY, Unscreened, 50m, Grey Thermoplastic Polymer Sheath, 11 AWG

Subtotal (1 reel of 50 metres)*

£337.08

(exc. VAT)

£404.50

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

12 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£337.08	£6.742

*price indicative

RS Stock No.:: 807-9616
Mfr. Part No.:: 281203
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CONTROL TM
	Number of Cores	3
	Cross Sectional Area	4 mm²
	American Wire Gauge	11 AWG
	Conductor Material	Bare Copper
	Sheath Material	Thermoplastic Polymer
	Control Cable Type	YY
	Sheath Colour	Grey
	Screened/Unscreened	Unscreened
	Screen Type	Unscreened
	Length	50m
	Outer Diameter	10.6mm
	Minimum Bend Radius	5 x Diameter
	Voltage Rating	600 V
	Standards Met	CE, CSA, UL
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+90°C
	Cable Shape	Multicore
	Insulation Material	PVC
	Drain Wire	Yes
	Oil Resistant	Yes
	Minimum Operating Temperature	-40°C

	Select all
	Brand Lapp
	Series ÖLFLEX CONTROL TM
	Number of Cores 3
	Cross Sectional Area 4 mm²
	American Wire Gauge 11 AWG
	Conductor Material Bare Copper
	Sheath Material Thermoplastic Polymer
	Control Cable Type YY
	Sheath Colour Grey
	Screened/Unscreened Unscreened
	Screen Type Unscreened
	Length 50m
	Outer Diameter 10.6mm
	Minimum Bend Radius 5 x Diameter
	Voltage Rating 600 V
	Standards Met CE, CSA, UL
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +90°C
	Cable Shape Multicore
	Insulation Material PVC
	Drain Wire Yes
	Oil Resistant Yes
	Minimum Operating Temperature -40°C

COO (Country of Origin):: DE

LAPP ÖLFLEX CONTROL TM Series Control Cable, 3 Number of Cores, 4mm² Cross Sectional Area - 281203

This control cable is designed for versatile applications in automation and plant engineering. Featuring a 3 core design with a cross-sectional area of 4 mm², the cable is constructed from bare copper conductors for optimal conductivity. It is encased in a durable thermoplastic polymer sheath, ensuring both flexibility and resilience. The cable is rated for a voltage of 600V, making it suitable for various industrial environments.

Features & Benefits

• Torsion-resistant, ideal for dynamic usage
• PVC insulated, providing good electrical protection
• Unscreened design for simplified installation
• Suitable for a wide operating temperature range

Applications

• Utilised in industrial machinery for control functions
• Specifically designed for use in wind turbine
• Suitable for plant engineering installations
• Ideal for unprotected 600V operations in cable trays
• Accommodates torsional movements in wind turbine generators

What temperature range can this cable operate under?

The cable can function effectively within a temperature range of -40°C to +90°C, making it suitable for various environmental conditions.

How does the torsion resistance benefit its application?

The torsion-resistant feature allows the cable to endure the twisting and bending motions typically encountered in wind turbine installations, reducing the risk of damage.

What aspects ensure its durability against harsh industrial conditions?

The cable's oil-resistant properties combined with its flame-retardant sheath enhance its durability, making it suitable for challenging industrial environments.
