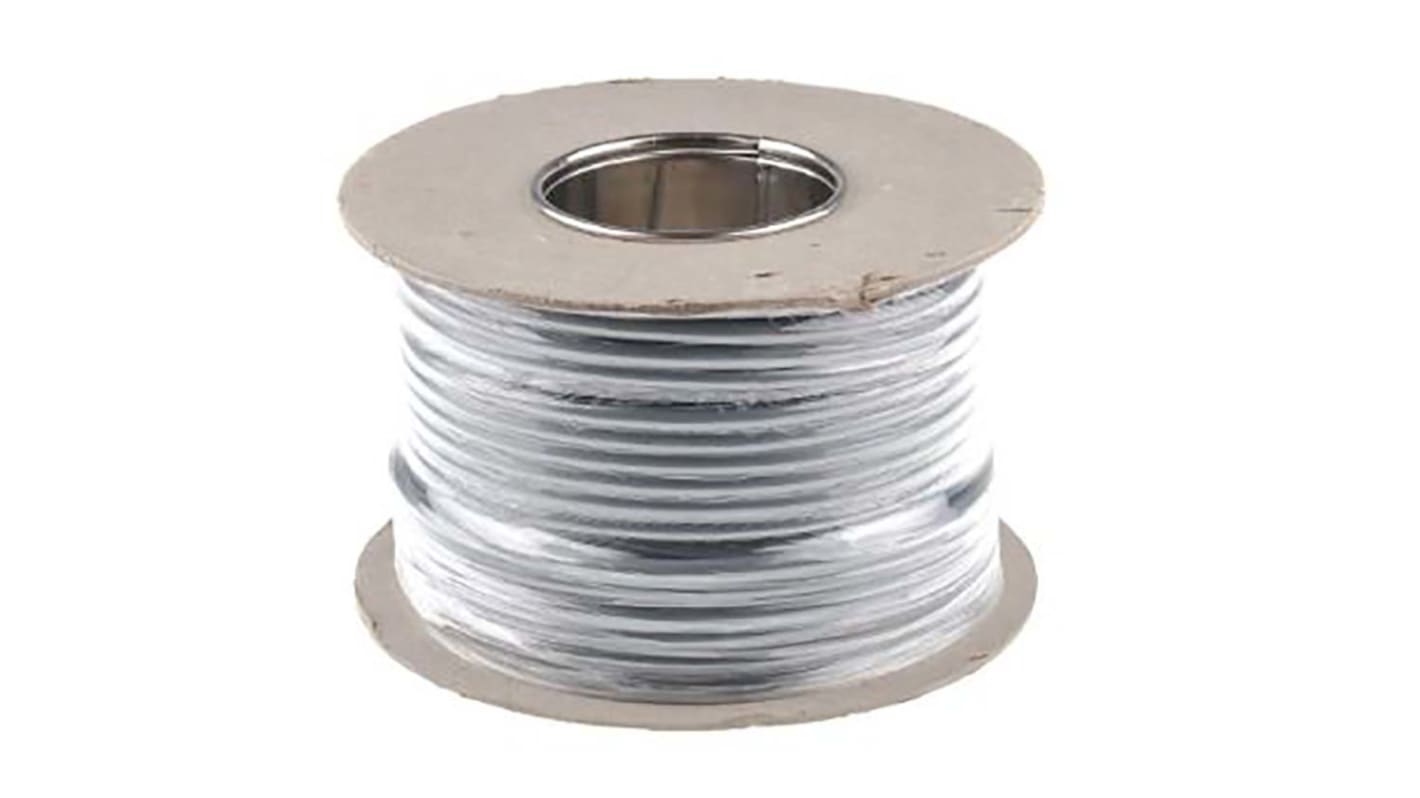

RS PRO Control Cable, 5 Cores, 2.5 mm², YY, Unscreened, 50m, Grey PVC Sheath
- RS Stock No.:
- 196-4691
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
£185.97
(exc. VAT)
£223.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
- Plus 9 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £185.97 | £3.719 |
*price indicative
- RS Stock No.:
- 196-4691
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Cores | 5 | |
Cross Sectional Area | 2.5 mm² | |
Conductor Material | Annealed Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Control Cable Type | YY | |
Screened/Unscreened | Unscreened | |
Screen Type | Galvanised Steel | |
Minimum Bend Radius | 6 x Diameter | |
Length | 50m | |
Outer Diameter | 10.7mm | |
Voltage Rating | 300/500 V | |
CPR Certification | Eca | |
Standards Met | BS EN 50525 | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -15°C | |
Cable Shape | Multicore | |
Earth Cable | Yes | |
Core Strands | 50/0.25 mm | |
Insulation Material | PVC | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Cores 5 | ||
Cross Sectional Area 2.5 mm² | ||
Conductor Material Annealed Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Screen Type Galvanised Steel | ||
Minimum Bend Radius 6 x Diameter | ||
Length 50m | ||
Outer Diameter 10.7mm | ||
Voltage Rating 300/500 V | ||
CPR Certification Eca | ||
Standards Met BS EN 50525 | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -15°C | ||
Cable Shape Multicore | ||
Earth Cable Yes | ||
Core Strands 50/0.25 mm | ||
Insulation Material PVC | ||
- COO (Country of Origin):
- GB
RS PRO 5 Core YY Control Cable, 2.5 mm², 50 m, Unscreened
Use this RS PRO five-core control cable to simultaneously distribute power and data signals. It links different pieces of equipment with one multi-functional cable to provide a neater connection.
The annealed copper wires are soft and flexible, so you can bend the cable without breaking it or interrupting power conduction and signal transfer. It's safe to use thanks to the polyvinyl chloride (PVC) insulation, which prevents short circuits to protect you and your work environment from fire hazards.
This product is Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only trace amounts of any materials that can endanger your health. You can use this cable in indoor settings and controlled outdoor settings.
The annealed copper wires are soft and flexible, so you can bend the cable without breaking it or interrupting power conduction and signal transfer. It's safe to use thanks to the polyvinyl chloride (PVC) insulation, which prevents short circuits to protect you and your work environment from fire hazards.
This product is Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only trace amounts of any materials that can endanger your health. You can use this cable in indoor settings and controlled outdoor settings.
Features and Benefits
• Multicore cable shape
• Annealed copper conductor material
• 50 core strands of 0.25 mm
• Cross-sectional area of 2.5 mm²
• Earth cable
• PVC (polyvinyl chloride) insulation and sheath material
• Length of 50 m
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Minimum bend radius of 6 x diameter
• Five cores
• Outer diameter of 10.7 mm
• Galvanised steel screen type
• Unscreened
• Grey sheath colour
• Meets BS EN 50525 standards
• Voltage rating of 300/500 V
• Annealed copper conductor material
• 50 core strands of 0.25 mm
• Cross-sectional area of 2.5 mm²
• Earth cable
• PVC (polyvinyl chloride) insulation and sheath material
• Length of 50 m
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Minimum bend radius of 6 x diameter
• Five cores
• Outer diameter of 10.7 mm
• Galvanised steel screen type
• Unscreened
• Grey sheath colour
• Meets BS EN 50525 standards
• Voltage rating of 300/500 V
