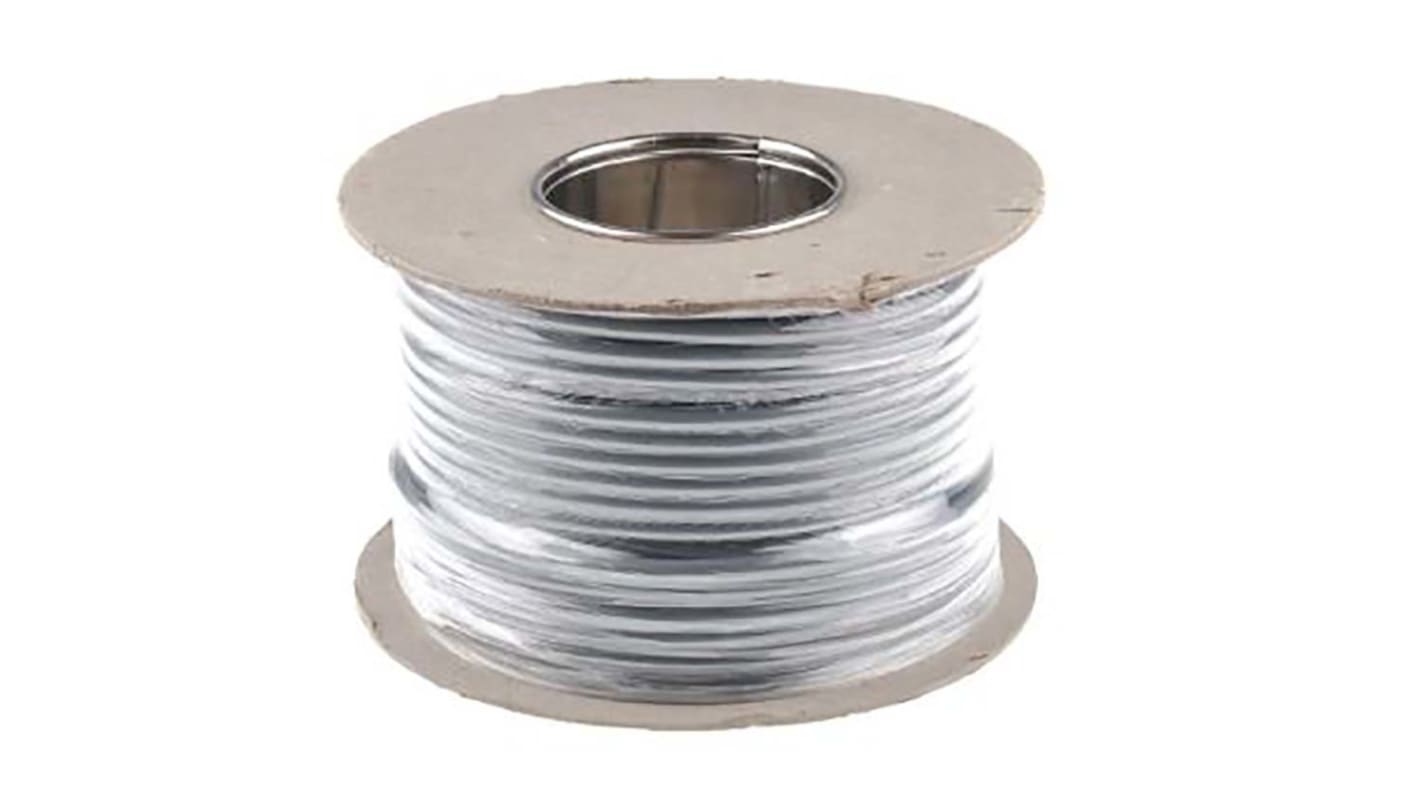

RS PRO Control Cable, 4 Cores, 2.5 mm², YY, Unscreened, 50m, Grey PVC Sheath
- RS Stock No.:
- 196-4686
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
£150.57
(exc. VAT)
£180.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 26 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £150.57 | £3.011 |
*price indicative
- RS Stock No.:
- 196-4686
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Cores | 4 | |
Cross Sectional Area | 2.5 mm² | |
Conductor Material | Annealed Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Control Cable Type | YY | |
Screened/Unscreened | Unscreened | |
Screen Type | Galvanised Steel | |
Minimum Bend Radius | 6 x Diameter | |
Length | 50m | |
Outer Diameter | 9.8mm | |
Voltage Rating | 300/500 V | |
Standards Met | BS EN 50525 | |
CPR Certification | Eca | |
Maximum Operating Temperature | +70°C | |
Insulation Material | PVC | |
Earth Cable | Yes | |
Minimum Operating Temperature | -15°C | |
Cable Shape | Multicore | |
Core Strands | 50/0.25 mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Cores 4 | ||
Cross Sectional Area 2.5 mm² | ||
Conductor Material Annealed Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Screen Type Galvanised Steel | ||
Minimum Bend Radius 6 x Diameter | ||
Length 50m | ||
Outer Diameter 9.8mm | ||
Voltage Rating 300/500 V | ||
Standards Met BS EN 50525 | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Insulation Material PVC | ||
Earth Cable Yes | ||
Minimum Operating Temperature -15°C | ||
Cable Shape Multicore | ||
Core Strands 50/0.25 mm | ||
- COO (Country of Origin):
- GB
RS PRO 4 Core YY Control Cable, 2.5 mm², 50 m, Unscreened
Looking for a cable that simultaneously transfers analogue or digital signals, data and electricity? Use this RS PRO multi-core cable to measure, regulate and control electronic equipment.
Each core is insulated with polyvinyl chloride (PVC), which increases the product's safety by preventing short circuits that can cause fire outbreaks. The annealed copper strands are soft and flexible, so you can bend and manipulate the cable to easily run it around corners and reach power points and objects.
This item's Restriction of Hazardous Substances (RoHS) certification means it contains only a minimal level of any harmful materials. You can use this cable under moist and dry conditions in indoor settings. It's commonly used to interconnect conveyors, production and assembly lines and computers.
Each core is insulated with polyvinyl chloride (PVC), which increases the product's safety by preventing short circuits that can cause fire outbreaks. The annealed copper strands are soft and flexible, so you can bend and manipulate the cable to easily run it around corners and reach power points and objects.
This item's Restriction of Hazardous Substances (RoHS) certification means it contains only a minimal level of any harmful materials. You can use this cable under moist and dry conditions in indoor settings. It's commonly used to interconnect conveyors, production and assembly lines and computers.
Features and Benefits
• Multicore cable shape
• Annealed copper conductor material
• 50 core strands of 0.25 mm
• Cross-sectional area of 2.5 mm²
• Earth cable
• PVC (polyvinyl chloride) insulation and sheath material
• Length of 50 m
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Minimum bend radius of 6 x diameter
• Four cores
• Outer diameter of 9.8 mm
• Galvanised steel screen type
• Unscreened
• Grey sheath colour
• Meets BS EN 50525 standards
• Voltage rating of 300/500 V
• Annealed copper conductor material
• 50 core strands of 0.25 mm
• Cross-sectional area of 2.5 mm²
• Earth cable
• PVC (polyvinyl chloride) insulation and sheath material
• Length of 50 m
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Minimum bend radius of 6 x diameter
• Four cores
• Outer diameter of 9.8 mm
• Galvanised steel screen type
• Unscreened
• Grey sheath colour
• Meets BS EN 50525 standards
• Voltage rating of 300/500 V
