RS PRO Control Cable, 3 Cores, 2.5 mm², YY, Unscreened, 50m, Grey PVC Sheath
- RS Stock No.:
- 196-4677
- Brand:
- RS PRO
Subtotal (1 reel of 50 metres)*
£115.41
(exc. VAT)
£138.49
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 27 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 16 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £115.41 | £2.308 |
*price indicative
- RS Stock No.:
- 196-4677
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Cores | 3 | |
Cross Sectional Area | 2.5 mm² | |
Conductor Material | Annealed Copper | |
Sheath Material | PVC | |
Control Cable Type | YY | |
Sheath Colour | Grey | |
Screen Type | Galvanised Steel | |
Screened/Unscreened | Unscreened | |
Minimum Bend Radius | 6 x Diameter | |
Outer Diameter | 9mm | |
Length | 50m | |
Voltage Rating | 300/500 V | |
Standards Met | BS EN 50525 | |
CPR Certification | Eca | |
Maximum Operating Temperature | +70°C | |
Core Strands | 50/0.25 mm | |
Cable Shape | Multicore | |
Minimum Operating Temperature | -15°C | |
Insulation Material | PVC | |
Earth Cable | Yes | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Cores 3 | ||
Cross Sectional Area 2.5 mm² | ||
Conductor Material Annealed Copper | ||
Sheath Material PVC | ||
Control Cable Type YY | ||
Sheath Colour Grey | ||
Screen Type Galvanised Steel | ||
Screened/Unscreened Unscreened | ||
Minimum Bend Radius 6 x Diameter | ||
Outer Diameter 9mm | ||
Length 50m | ||
Voltage Rating 300/500 V | ||
Standards Met BS EN 50525 | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Core Strands 50/0.25 mm | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -15°C | ||
Insulation Material PVC | ||
Earth Cable Yes | ||
- COO (Country of Origin):
- GB

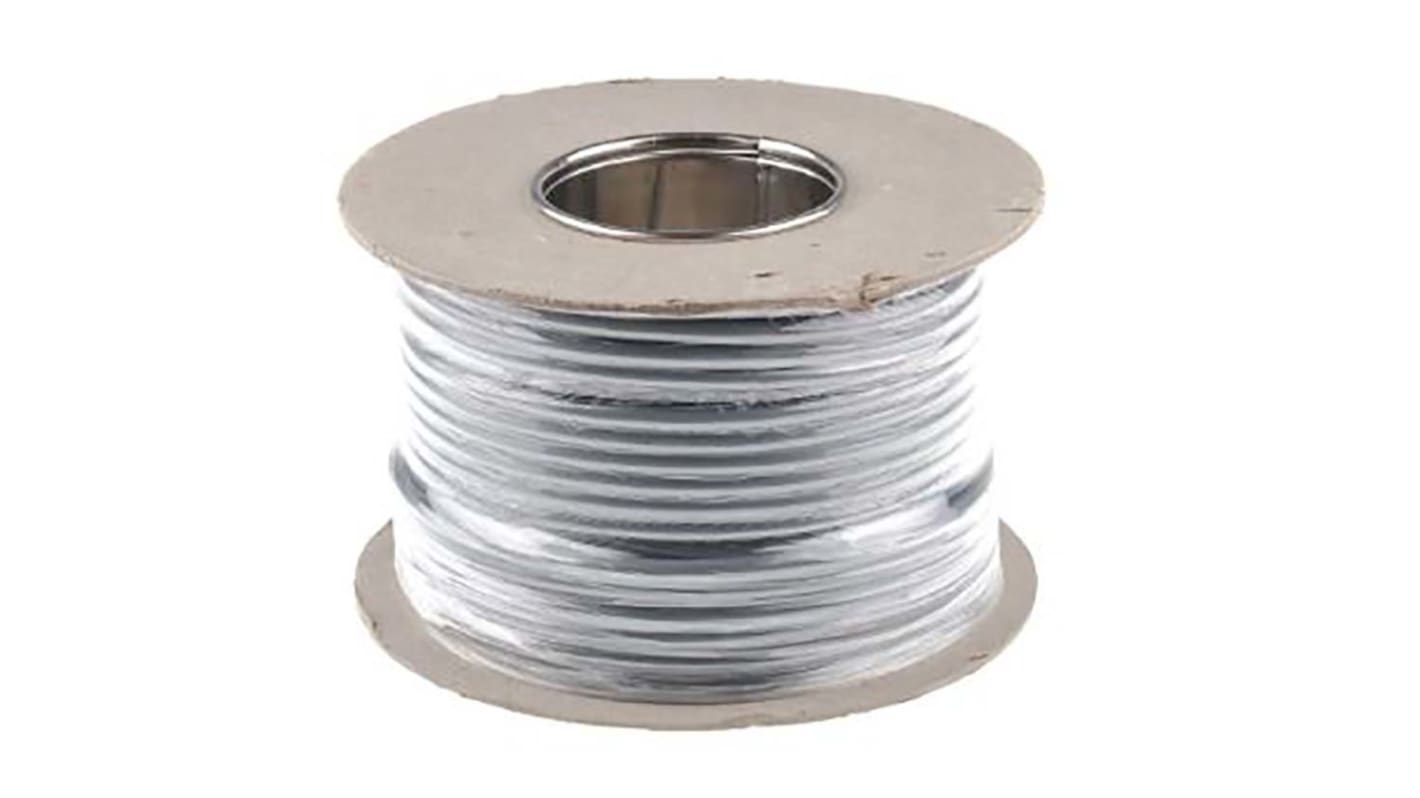

RS PRO 3 Core YY Control Cable, 2.5 mm², 50 m, Unscreened
Use this RS PRO three-core control cable to connect and link your equipment and appliances. The item measures and controls power and data conduction between various units such as computers, gaming consoles and power supplies.
Annealed copper wire strands make the cable softer and less brittle, allowing you to bend and manipulate it without the risk of cracking, flaking or breaking. The polyvinyl chloride (PVC) insulation ensures safe use by preventing short circuits that can lead to fire hazards. This product contains only trace amounts of any harmful materials as it's Restriction of Hazardous Substances (RoHS) compliant. You can use the cable in indoor settings like factories to run production and assembly lines.
Annealed copper wire strands make the cable softer and less brittle, allowing you to bend and manipulate it without the risk of cracking, flaking or breaking. The polyvinyl chloride (PVC) insulation ensures safe use by preventing short circuits that can lead to fire hazards. This product contains only trace amounts of any harmful materials as it's Restriction of Hazardous Substances (RoHS) compliant. You can use the cable in indoor settings like factories to run production and assembly lines.
Features and Benefits
• Multicore cable shape
• Annealed copper conductor material
• 50 core strands of 0.25 mm
• Cross sectional area of 2.5 mm²
• Earth cable
• PVC (polyvinyl chloride) insulation and sheath material
• Length of 50 m
• Minimum bend radius of 6 x diameter
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Three cores
• Outer diameter of 9 mm
• Galvanised steel screen type
• Unscreened
• Grey sheath colour
• Meets BS EN 50525 standards
• Voltage rating of 300/500 V
• Annealed copper conductor material
• 50 core strands of 0.25 mm
• Cross sectional area of 2.5 mm²
• Earth cable
• PVC (polyvinyl chloride) insulation and sheath material
• Length of 50 m
• Minimum bend radius of 6 x diameter
• Minimum operating temperature of -15°C
• Maximum operating temperature of +70°C
• Three cores
• Outer diameter of 9 mm
• Galvanised steel screen type
• Unscreened
• Grey sheath colour
• Meets BS EN 50525 standards
• Voltage rating of 300/500 V
