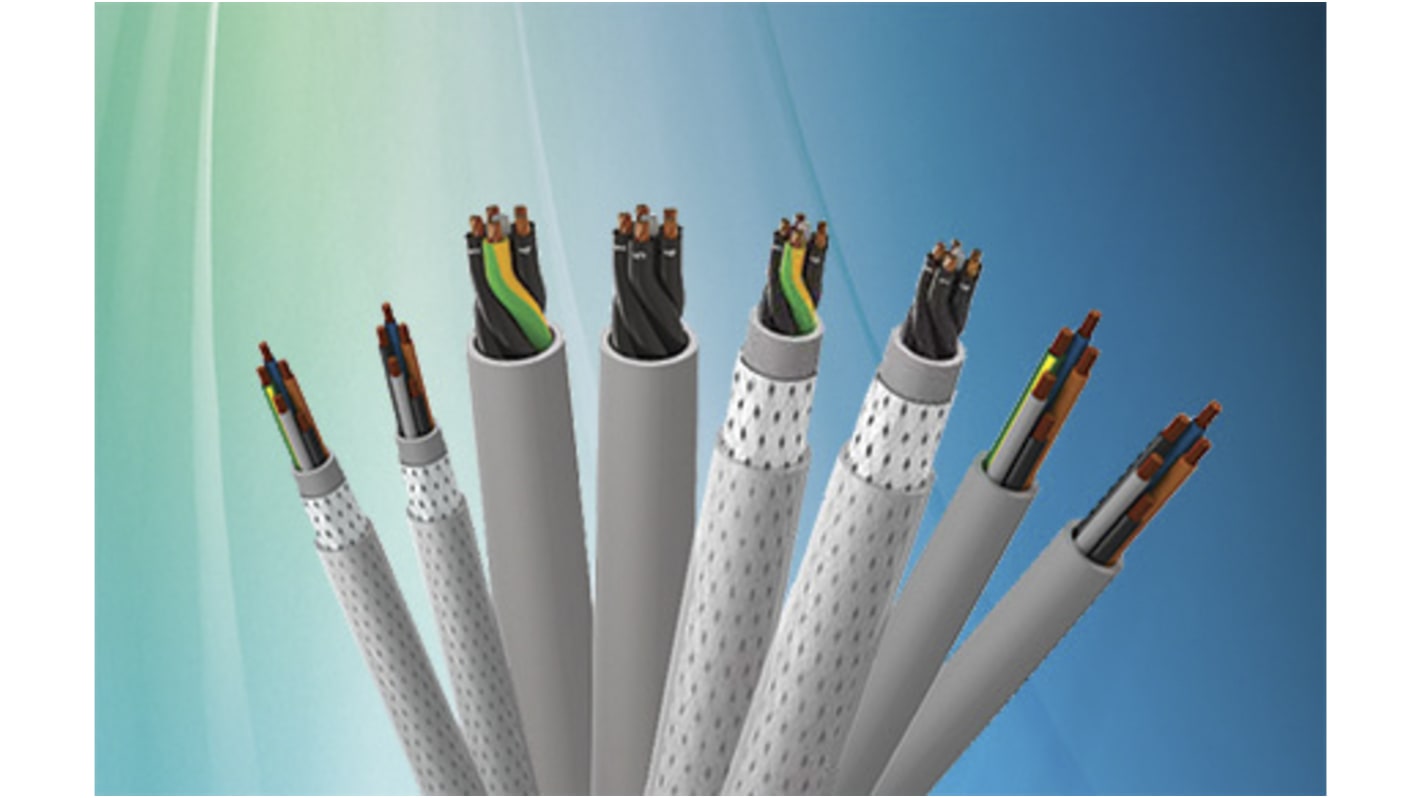

Belden 5GCSY Control Cable, 5 Cores, 1 mm², SY, Screened, 100m, Grey PVC Sheath
- RS Stock No.:
- 176-2405
- Mfr. Part No.:
- 5GCSY-K100
- Brand:
- Belden
Subtotal (1 reel of 100 metres)*
£313.60
(exc. VAT)
£376.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3 unit(s) shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £313.60 | £3.136 |
*price indicative
- RS Stock No.:
- 176-2405
- Mfr. Part No.:
- 5GCSY-K100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Series | 5GCSY | |
Number of Cores | 5 | |
Cross Sectional Area | 1 mm² | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Control Cable Type | SY | |
Sheath Colour | Grey | |
Armoured | Yes | |
Screen Type | Galvanised Steel Braid | |
Screened/Unscreened | Screened | |
Length | 100m | |
Minimum Bend Radius | 20 x 9.8 (Occasional), 6 x 9.8 (Fixed) | |
Outer Diameter | 9.8mm | |
Voltage Rating | 300 V, 500 V | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Earth Cable | Yes | |
Cable Shape | Multicore | |
Oil Resistant | Yes | |
Minimum Operating Temperature | -40°C | |
Insulation Material | PVC | |
Select all | ||
---|---|---|
Brand Belden | ||
Series 5GCSY | ||
Number of Cores 5 | ||
Cross Sectional Area 1 mm² | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Control Cable Type SY | ||
Sheath Colour Grey | ||
Armoured Yes | ||
Screen Type Galvanised Steel Braid | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Minimum Bend Radius 20 x 9.8 (Occasional), 6 x 9.8 (Fixed) | ||
Outer Diameter 9.8mm | ||
Voltage Rating 300 V, 500 V | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Earth Cable Yes | ||
Cable Shape Multicore | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -40°C | ||
Insulation Material PVC | ||
- COO (Country of Origin):
- CN
Machines are becoming highly systemized, smaller and compact driven by special requirements of end users and customers. These challenge machine builders who need to stay competitive while ensuring a robust performance for their machine.
Flexible conductor, insulation & sheath material
Oil resistant
Wider fixed temperature range (-40°C To+80°C)
Good shield effectiveness
Good Sunlight (UV) & Chemical Resistant
Environmental friendly cables
Precision control sensors
Multi axis motion control
Temperature controllers
Control panels
Machine cutting tools
Auxiliary equipment
Motor speed controls
Production machinery
Blade pitch control (WT)
Control & instrumentation circuits
Various conductor sizes from 0.14mm² to 35.00 mm²
Bare copper conductors
PVC insulation & jacket / sheath
Voltage (Uo/U) = 300/500V
Variety of insulation & jacket color options
Drum packaging
Oil resistant
Wider fixed temperature range (-40°C To+80°C)
Good shield effectiveness
Good Sunlight (UV) & Chemical Resistant
Environmental friendly cables
Precision control sensors
Multi axis motion control
Temperature controllers
Control panels
Machine cutting tools
Auxiliary equipment
Motor speed controls
Production machinery
Blade pitch control (WT)
Control & instrumentation circuits
Various conductor sizes from 0.14mm² to 35.00 mm²
Bare copper conductors
PVC insulation & jacket / sheath
Voltage (Uo/U) = 300/500V
Variety of insulation & jacket color options
Drum packaging
