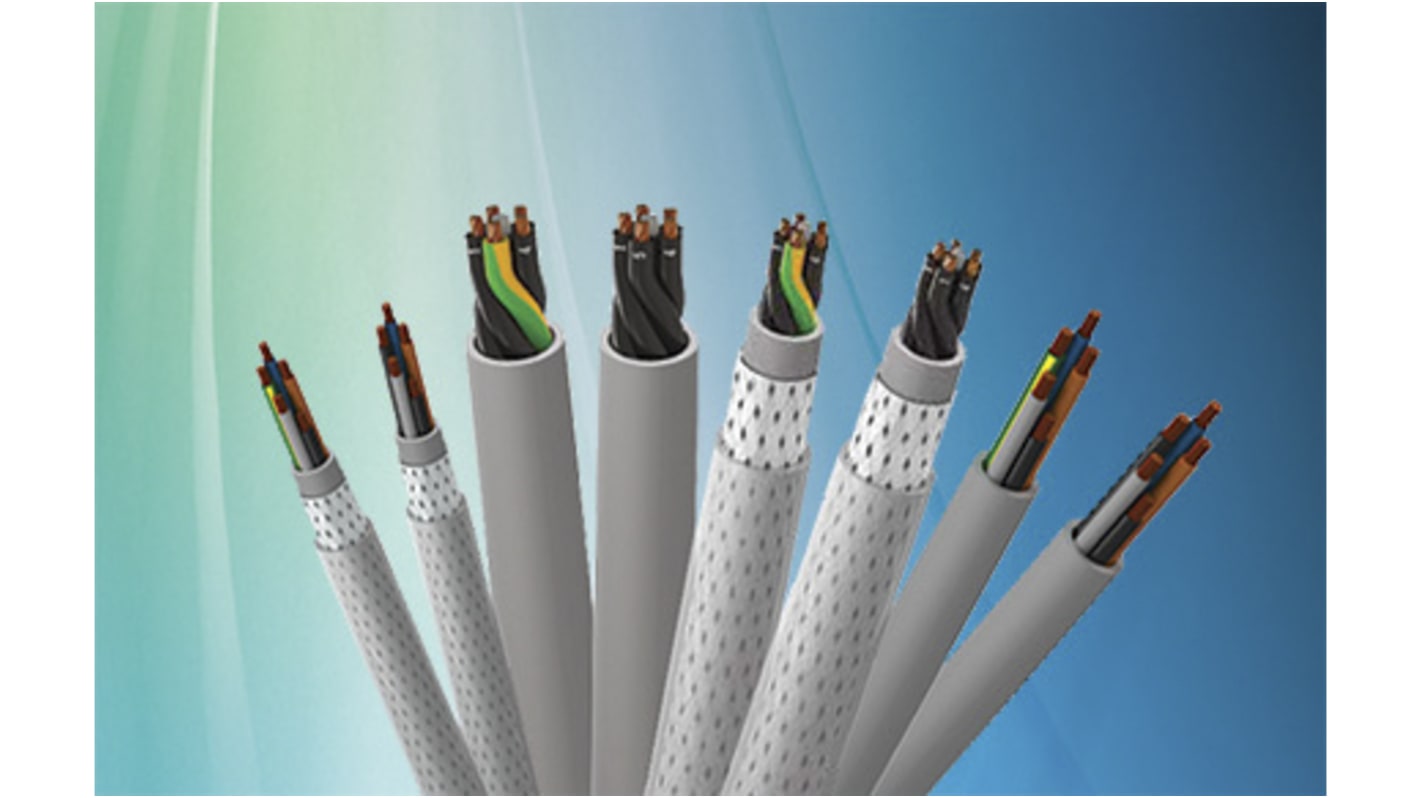

Belden C4GCCY Control Cable, 4 Cores, 1 mm², CY, Screened, 100m, Grey PVC Sheath
- RS Stock No.:
- 176-2430
- Mfr. Part No.:
- C4GCCY-K100
- Brand:
- Belden
Subtotal (1 reel of 100 metres)*
£259.01
(exc. VAT)
£310.81
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3 unit(s) shipping from 24 October 2025
- Plus 999,999,996 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £259.01 | £2.59 |
*price indicative
- RS Stock No.:
- 176-2430
- Mfr. Part No.:
- C4GCCY-K100
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Series | C4GCCY | |
Number of Cores | 4 | |
Cross Sectional Area | 1 mm² | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Control Cable Type | CY | |
Screened/Unscreened | Screened | |
Screen Type | Tinned Copper Braid | |
Length | 100m | |
Outer Diameter | 8.8mm | |
Minimum Bend Radius | 20 x 8.8 (Occasional), 6 x 8.8 (Fixed) | |
Voltage Rating | 300 V, 500 V | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Oil Resistant | Yes | |
Insulation Material | PVC | |
Earth Cable | Yes | |
Minimum Operating Temperature | -30°C | |
Cable Shape | Multicore | |
Select all | ||
---|---|---|
Brand Belden | ||
Series C4GCCY | ||
Number of Cores 4 | ||
Cross Sectional Area 1 mm² | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type CY | ||
Screened/Unscreened Screened | ||
Screen Type Tinned Copper Braid | ||
Length 100m | ||
Outer Diameter 8.8mm | ||
Minimum Bend Radius 20 x 8.8 (Occasional), 6 x 8.8 (Fixed) | ||
Voltage Rating 300 V, 500 V | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Oil Resistant Yes | ||
Insulation Material PVC | ||
Earth Cable Yes | ||
Minimum Operating Temperature -30°C | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- CN
Designed for applications which are installed in occasional flexing and fixed locations. Cable applicationsinclude precision controlsensors, multi axis control machines, temperature controllers, control panels, machine cutting tools, auxiliary equipment, motor speed control, production machinery and many more.
