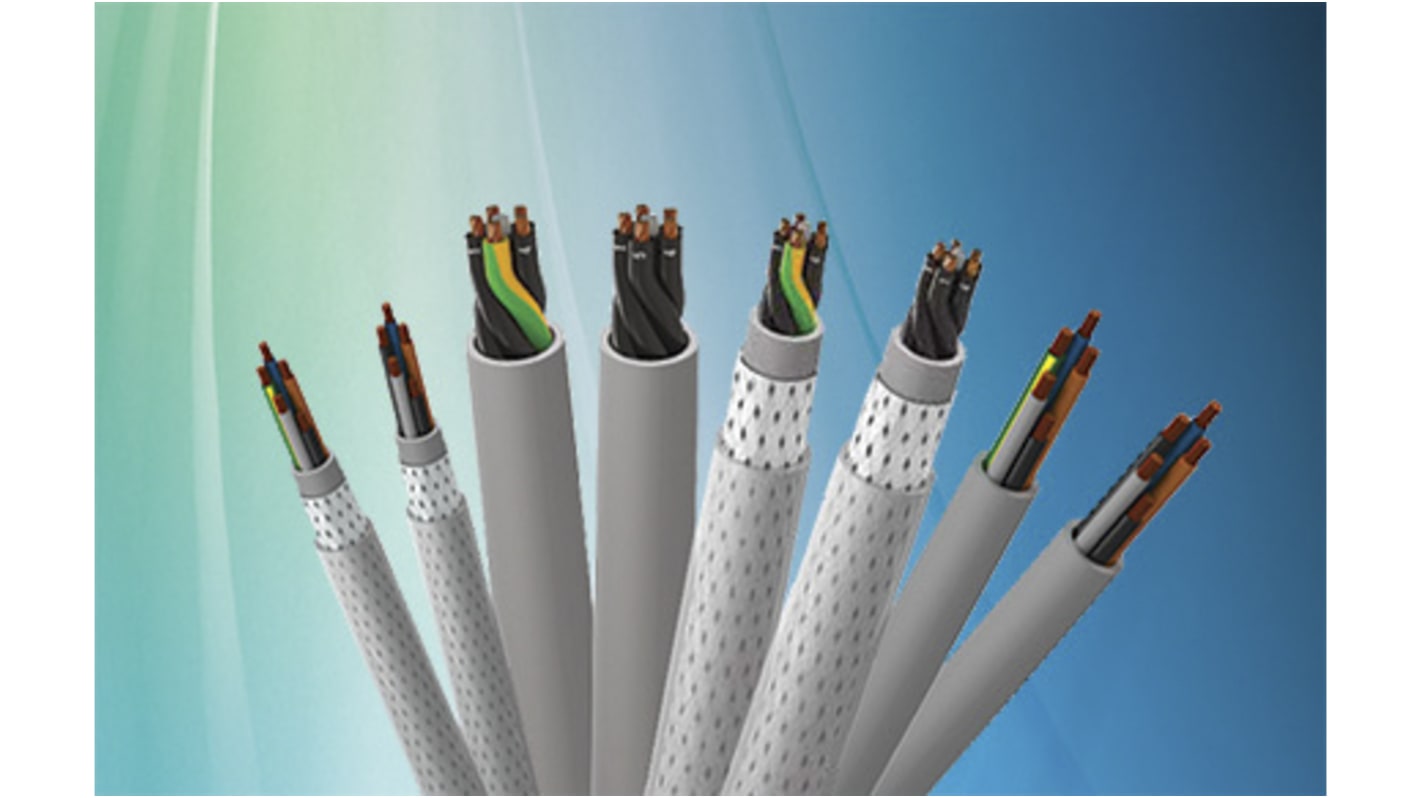

Belden 5GCSY Control Cable, 5 Cores, 1 mm², SY, Screened, 50m, Grey PVC Sheath
- RS Stock No.:
- 176-2344
- Mfr. Part No.:
- 5GCSY-KC50
- Brand:
- Belden
Subtotal (1 reel of 50 metres)*
£163.87
(exc. VAT)
£196.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 999,999,996 unit(s) shipping from 19 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £163.87 | £3.277 |
*price indicative
- RS Stock No.:
- 176-2344
- Mfr. Part No.:
- 5GCSY-KC50
- Brand:
- Belden
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Belden | |
Series | 5GCSY | |
Number of Cores | 5 | |
Cross Sectional Area | 1 mm² | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Control Cable Type | SY | |
Screen Type | Galvanised Steel Braid | |
Armoured | Yes | |
Screened/Unscreened | Screened | |
Outer Diameter | 9.8mm | |
Length | 50m | |
Minimum Bend Radius | 20 x 9.8 (Occasional), 6 x 9.8 (Fixed) | |
Voltage Rating | 300 V, 500 V | |
Maximum Operating Temperature | +80°C | |
Fire Behaviour | Flame Retardant | |
Insulation Material | PVC | |
Earth Cable | Yes | |
Cable Shape | Multicore | |
Oil Resistant | Yes | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Belden | ||
Series 5GCSY | ||
Number of Cores 5 | ||
Cross Sectional Area 1 mm² | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Control Cable Type SY | ||
Screen Type Galvanised Steel Braid | ||
Armoured Yes | ||
Screened/Unscreened Screened | ||
Outer Diameter 9.8mm | ||
Length 50m | ||
Minimum Bend Radius 20 x 9.8 (Occasional), 6 x 9.8 (Fixed) | ||
Voltage Rating 300 V, 500 V | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Insulation Material PVC | ||
Earth Cable Yes | ||
Cable Shape Multicore | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Machines are becoming highly systemized, smaller and compact driven by special requirements of end users and customers. These challenge machine builders who need to stay competitive while ensuring a robust performance for their machine.
Flexible conductor, insulation & sheath material
Oil resistant
Wider fixed temperature range (-40°C To+80°C)
Good shield effectiveness
Good Sunlight (UV) & Chemical Resistant
Environmental friendly cables
Precision control sensors
Multi axis motion control
Temperature controllers
Control panels
Machine cutting tools
Auxiliary equipment
Motor speed controls
Production machinery
Blade pitch control (WT)
Control & instrumentation circuits
Various conductor sizes from 0.14mm² to 35.00 mm²
Bare copper conductors
PVC insulation & jacket / sheath
Voltage (Uo/U) = 300/500V
Variety of insulation & jacket color options
Drum packaging
Oil resistant
Wider fixed temperature range (-40°C To+80°C)
Good shield effectiveness
Good Sunlight (UV) & Chemical Resistant
Environmental friendly cables
Precision control sensors
Multi axis motion control
Temperature controllers
Control panels
Machine cutting tools
Auxiliary equipment
Motor speed controls
Production machinery
Blade pitch control (WT)
Control & instrumentation circuits
Various conductor sizes from 0.14mm² to 35.00 mm²
Bare copper conductors
PVC insulation & jacket / sheath
Voltage (Uo/U) = 300/500V
Variety of insulation & jacket color options
Drum packaging
