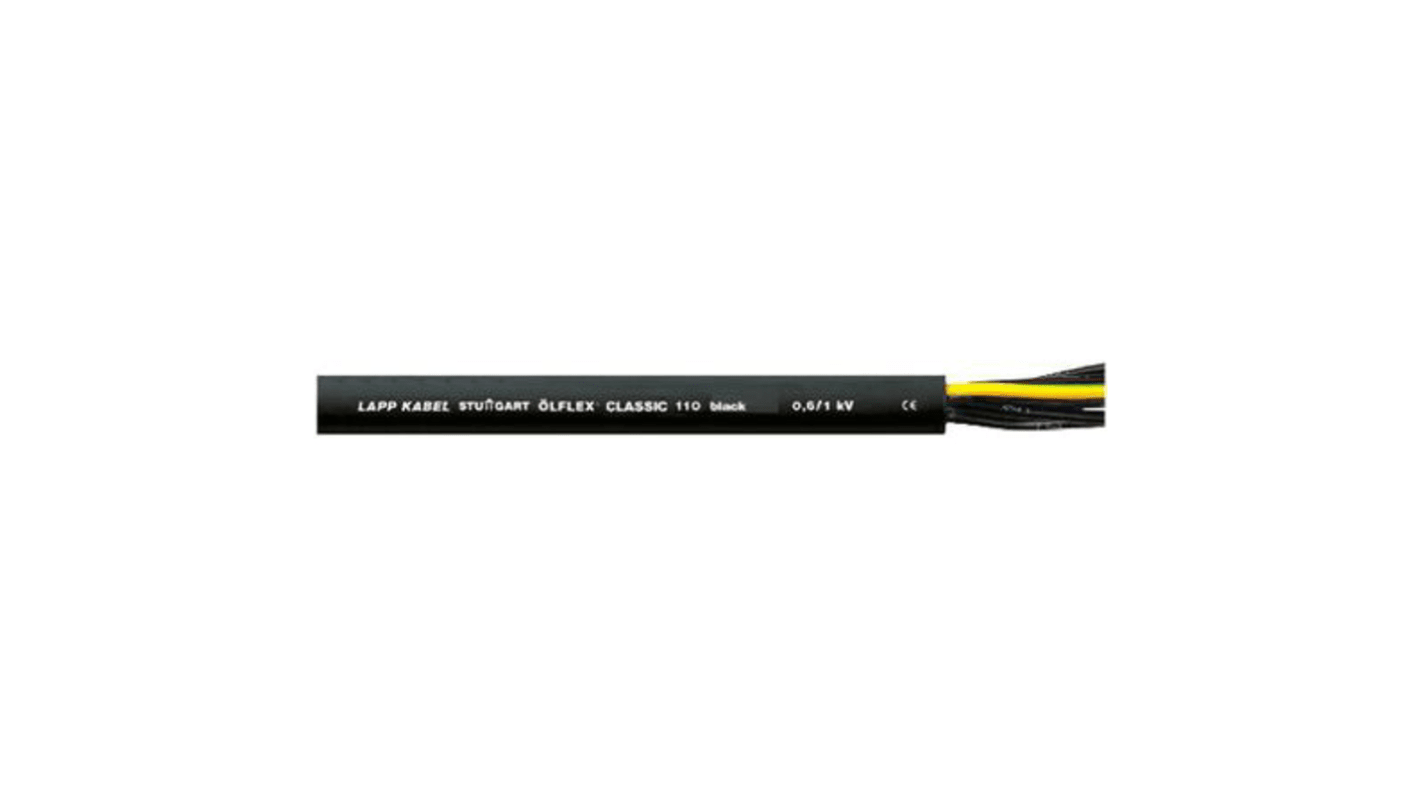

Lapp ÖLFLEX CLASSIC 110 Control Cable, 5 Cores, 0.75 mm², YY, Unscreened, 50m, Black PVC Sheath, 18 AWG

RS Stock No.:: 145-695
Mfr. Part No.:: 1120237
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 110 Control Cable, 5 Cores, 0.75 mm², YY, Unscreened, 50m, Black PVC Sheath, 18 AWG

Image representative of range

Subtotal (1 reel of 50 metres)*

£94.62

(exc. VAT)

£113.54

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

15 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£94.62	£1.892

*price indicative

RS Stock No.:: 145-695
Mfr. Part No.:: 1120237
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 110
	Number of Cores	5
	Cross Sectional Area	0.75 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Copper
	Sheath Material	PVC
	Sheath Colour	Black
	Control Cable Type	YY
	Screened/Unscreened	Unscreened
	Length	50m
	Outer Diameter	9.9mm
	Minimum Bend Radius	Static/Occasional moved: 4/15 x OD
	Voltage Rating	600/1000 V
	Current Rating	12 A
	Standards Met	CE
	CPR Certification	Eca
	Fire Behaviour	Flame Retardant
	Maximum Operating Temperature	+80°C
	Conductor Resistance	26 Ω/km
	Filler Material	Non-Wicking Filler
	Oil Resistant	Yes
	Earth Cable	Yes
	Core Strands	24/0.2 mm
	Minimum Operating Temperature	-40°C
	Insulation Material	PVC

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 110
	Number of Cores 5
	Cross Sectional Area 0.75 mm²
	American Wire Gauge 18 AWG
	Conductor Material Copper
	Sheath Material PVC
	Sheath Colour Black
	Control Cable Type YY
	Screened/Unscreened Unscreened
	Length 50m
	Outer Diameter 9.9mm
	Minimum Bend Radius Static/Occasional moved: 4/15 x OD
	Voltage Rating 600/1000 V
	Current Rating 12 A
	Standards Met CE
	CPR Certification Eca
	Fire Behaviour Flame Retardant
	Maximum Operating Temperature +80°C
	Conductor Resistance 26 Ω/km
	Filler Material Non-Wicking Filler
	Oil Resistant Yes
	Earth Cable Yes
	Core Strands 24/0.2 mm
	Minimum Operating Temperature -40°C
	Insulation Material PVC

COO (Country of Origin):: DE

Lapp ÖLFLEX CLASSIC 110 Series Control Cable, Copper Conductor Material, PVC Insulation - 1120237

This control cable by Lapp is a reliable solution for various applications in automation, electronics, electrical, and mechanical industries. With a core made of copper and PVC insulation, it ensures efficient and safe operation in a range of environments. The 18 AWG conductor and Eca CPR certification make it a trustworthy choice for demanding projects.

Features & Benefits

• Copper conductor for optimal conductivity and reliability
• PVC insulation for protection against external elements and durability
• 0.75 mm² cross-sectional area for flexibility and ease of installation
• YY control cable type for versatile usage in different setups
• Oil-resistant sheath for added durability and longevity
• 12A current rating for handling high-power applications.

Applications

• Ideal for plant engineering and construction projects
• Suitable for industrial machinery and heating systems
• Can be used for power stations and stage applications

Can it withstand high temperatures?

Yes, it has a maximum operating temperature of +80 °C.

Will it resist oil exposure?

It is oil-resistant, making it suitable for environments with oil presence.

Is it suitable for outdoor use?

Yes, it can be used outdoors within the specified temperature range.

Can it handle high mechanical loads?

Yes, it is designed for installations subject to medium mechanical load conditions.

Is it suitable for use in wet areas?

Yes, it is suitable for damp or wet areas, ensuring versatility in various environments.
