Lapp ÖLFLEX CLASSIC 100 Control Cable, 5 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath, 18 AWG

RS Stock No.:: 727-1397
Distrelec Article No.:: 300-49-258
Mfr. Part No.:: 00100246
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 100 Control Cable, 5 Cores, 0.75 mm², YY, Unscreened, 50m, Grey PVC Sheath, 18 AWG

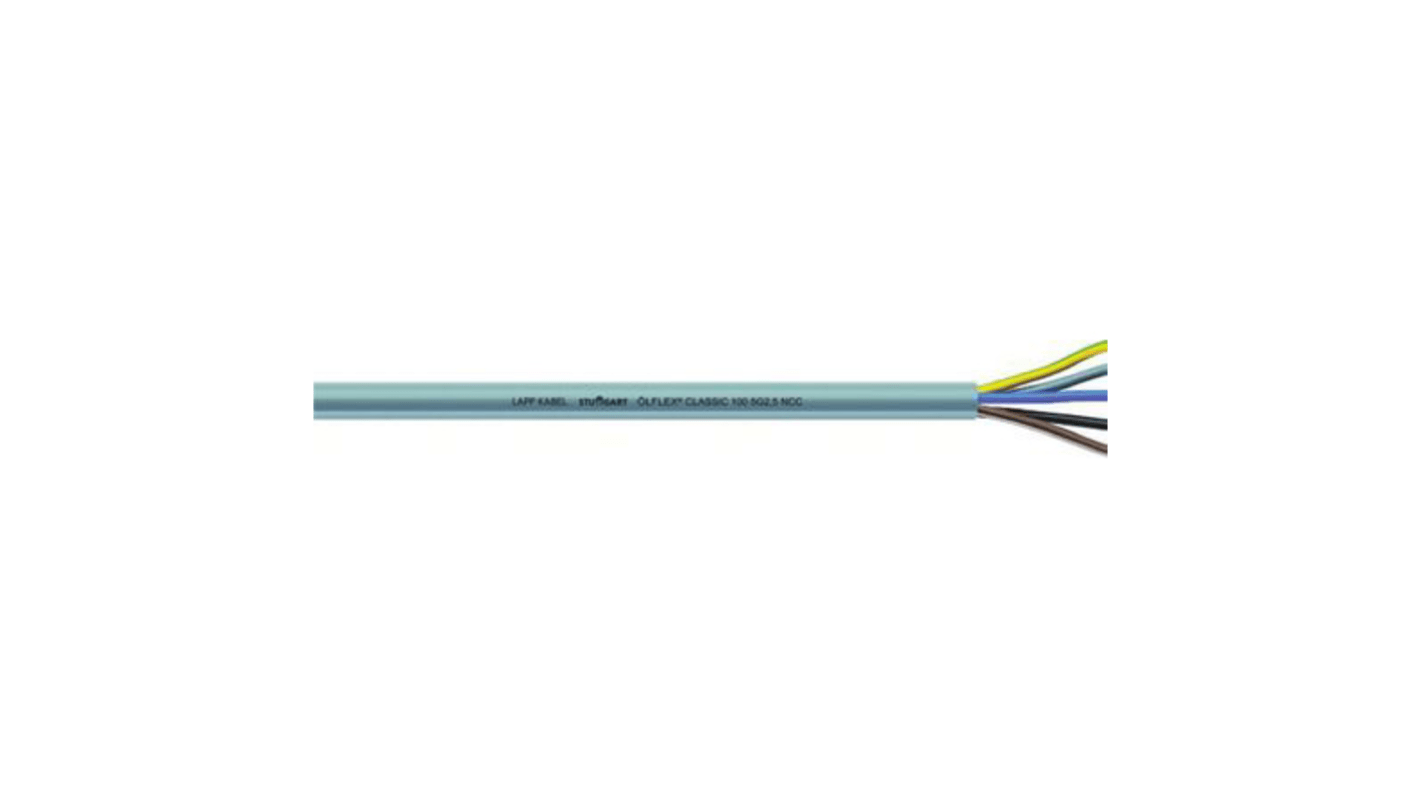

Image representative of range

Subtotal (1 reel of 50 metres)*

£78.53

(exc. VAT)

£94.24

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

15 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£78.53	£1.571

*price indicative

RS Stock No.:: 727-1397
Distrelec Article No.:: 300-49-258
Mfr. Part No.:: 00100246
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 100
	Number of Cores	5
	Cross Sectional Area	0.75 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Copper
	Sheath Material	PVC
	Control Cable Type	YY
	Sheath Colour	Grey
	Screened/Unscreened	Unscreened
	Length	50m
	Outer Diameter	6.7mm
	Minimum Bend Radius	Fixed - 4 x D Occasional flexing - 15 x D
	Voltage Rating	300/500 V
	Current Rating	12 A
	CPR Certification	Eca
	Maximum Operating Temperature	+70°C
	Oil Resistant	Yes
	Filler Material	Non-Wicking Filler
	Earth Cable	Yes
	Conductor Resistance	26 Ω/km
	Core Strands	24/0.2 mm
	Minimum Operating Temperature	-40°C
	Insulation Material	PVC

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 100
	Number of Cores 5
	Cross Sectional Area 0.75 mm²
	American Wire Gauge 18 AWG
	Conductor Material Copper
	Sheath Material PVC
	Control Cable Type YY
	Sheath Colour Grey
	Screened/Unscreened Unscreened
	Length 50m
	Outer Diameter 6.7mm
	Minimum Bend Radius Fixed - 4 x D Occasional flexing - 15 x D
	Voltage Rating 300/500 V
	Current Rating 12 A
	CPR Certification Eca
	Maximum Operating Temperature +70°C
	Oil Resistant Yes
	Filler Material Non-Wicking Filler
	Earth Cable Yes
	Conductor Resistance 26 Ω/km
	Core Strands 24/0.2 mm
	Minimum Operating Temperature -40°C
	Insulation Material PVC

LAPP ÖLFLEX CLASSIC 100 Series Control Cable, 0.75mm² Cross Sectional Area, 5 Number of Cores - 00100246

This control cable is a flexible electrical solution ideal for various applications. Designed with five cores and a cross-sectional area of 0.75mm², it offers efficient power transmission. The cable features a grey PVC sheath and is capable of withstanding temperatures from -40°C to +70°C. With a length of 50m, it meets the demands of modern electrical installations.

Features & Benefits

• Space-saving design enables easy installation in confined spaces
• High electrical performance with a test voltage of 4kV
• Enhanced flexibility due to short-twisted conductor layers
• Oil-resistant construction increases durability in harsh environments
• Unscreened type suitable for various indoor use
• Designed for fixed installations and occasional movement

Applications

• Suitable for plant engineering and industrial machinery
• Ideal for air conditioning installations and power stations
• Designed for use in dry or damp interiors
• Functions effectively under medium mechanical loads

What are the conductivity specifications and materials used in its construction?

The cable features conductors made of fine strands of bare copper, ensuring excellent conductivity. The copper stranding follows VDE 0295 Class 5/IEC 60228 Class 5 standards, enhancing electrical efficiency.

How does the cable perform under extreme temperature conditions?

The cable operates effectively within a temperature range of -40°C to +70°C, making it suitable for diverse environments, including those with high and low temperatures.

What type of installation is this cable designed for, and how flexible is it?

It supports a fixed installation while also handling occasional flexing, making it versatile for varying movement conditions without exerting tensile loads.
