Lapp ÖLFLEX CLASSIC 130 H Control Cable, 7 Cores 17 AWG, Unscreened, 50 m, Silver Grey Low Smoke Zero Halogen Sheath
- RS Stock No.:
- 141-558
- Distrelec Article No.:
- 301-80-472
- Mfr. Part No.:
- 1123074
- Brand:
- Lapp
Subtotal (1 reel of 50 metres)*
£209.76
(exc. VAT)
£251.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship
- Plus 9 unit(s) shipping from 08 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £209.76 | £4.195 |
*price indicative
- RS Stock No.:
- 141-558
- Distrelec Article No.:
- 301-80-472
- Mfr. Part No.:
- 1123074
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC 130 H | |
| Product Type | Control Cable | |
| Number of Cores | 7 | |
| Conductor Material | Bare Copper | |
| Jacket Material | Low Smoke Zero Halogen | |
| Jacket Colour | Silver Grey | |
| Screened/Unscreened | Unscreened | |
| Cable Length | 50m | |
| Conductor Type | Stranded | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | AWM Style 21217 (File No. E63634) acc. to IEC 60811 resp. EN 60811, EN 50395, EN 50396, UL 1581 | |
| American Wire Gauge | 17AWG | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC 130 H | ||
Product Type Control Cable | ||
Number of Cores 7 | ||
Conductor Material Bare Copper | ||
Jacket Material Low Smoke Zero Halogen | ||
Jacket Colour Silver Grey | ||
Screened/Unscreened Unscreened | ||
Cable Length 50m | ||
Conductor Type Stranded | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals AWM Style 21217 (File No. E63634) acc. to IEC 60811 resp. EN 60811, EN 50395, EN 50396, UL 1581 | ||
American Wire Gauge 17AWG | ||
- COO (Country of Origin):
- DE

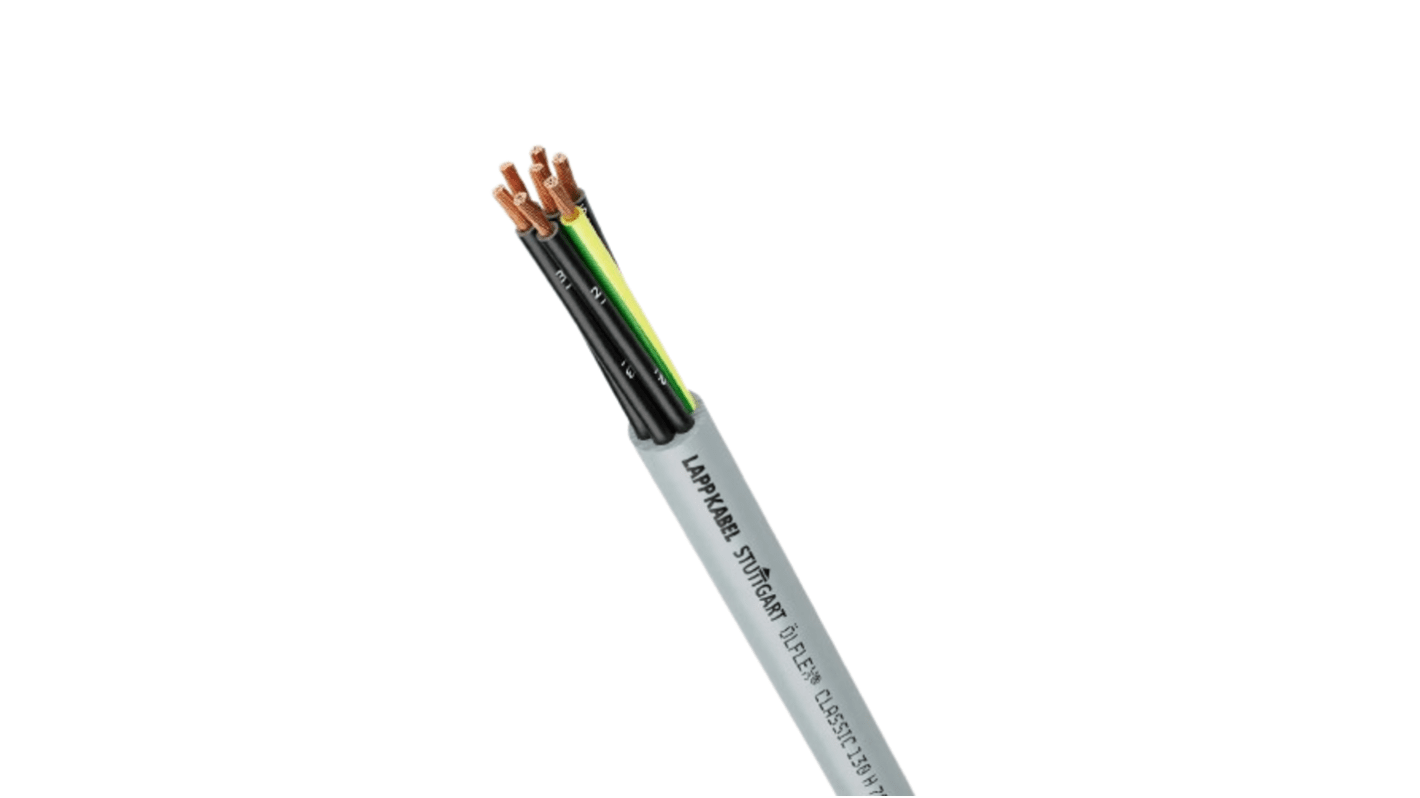

LAPP ÖLFLEX CLASSIC 130 H Series Control Cable, 7 Cores, 1mm² Cross Sectional Area - 1123074
This control cable is specifically designed for a range of applications in automation and control systems. With a flexible design, this 7-core cable has an outer diameter of 8.1mm and is halogen-free, ensuring safety in environments where fire risks are a concern.
Features & Benefits
• Halogen-free design reduces toxic emissions during fire
• Flame-retardant properties enhance safety in critical areas
• Robust performance with a voltage rating of 300/500 V AC
• Low smoke zero halogen capability for safer operation
Applications
• Ideal for use in public buildings such as airports
• Suitable for industrial machinery and plant engineering
• Effective in heating and Air conditioning systems
• Utilised in stage to minimise fire hazards
What are the specific temperature ranges for use?
This cable operates efficiently between -40°C and +80°C for fixed installations, and up to +70°C with occasional flexing, making it versatile for various environments.
How does the cable perform in high fire risk areas?
The flame-retardant and low smoke properties significantly reduce fire hazard potential, making it suitable for environments where human and animal safety is paramount.
What is the significance of being halogen-free?
Halogen-free cables do not emit harmful gases during combustion, which is Crucial for maintaining Air quality and safety in enclosed spaces.
What makes the installation easier with this cable?
The flexible design allows for easier handling and installation in tight spaces, while the core insulation ensures durability and long-term performance.
