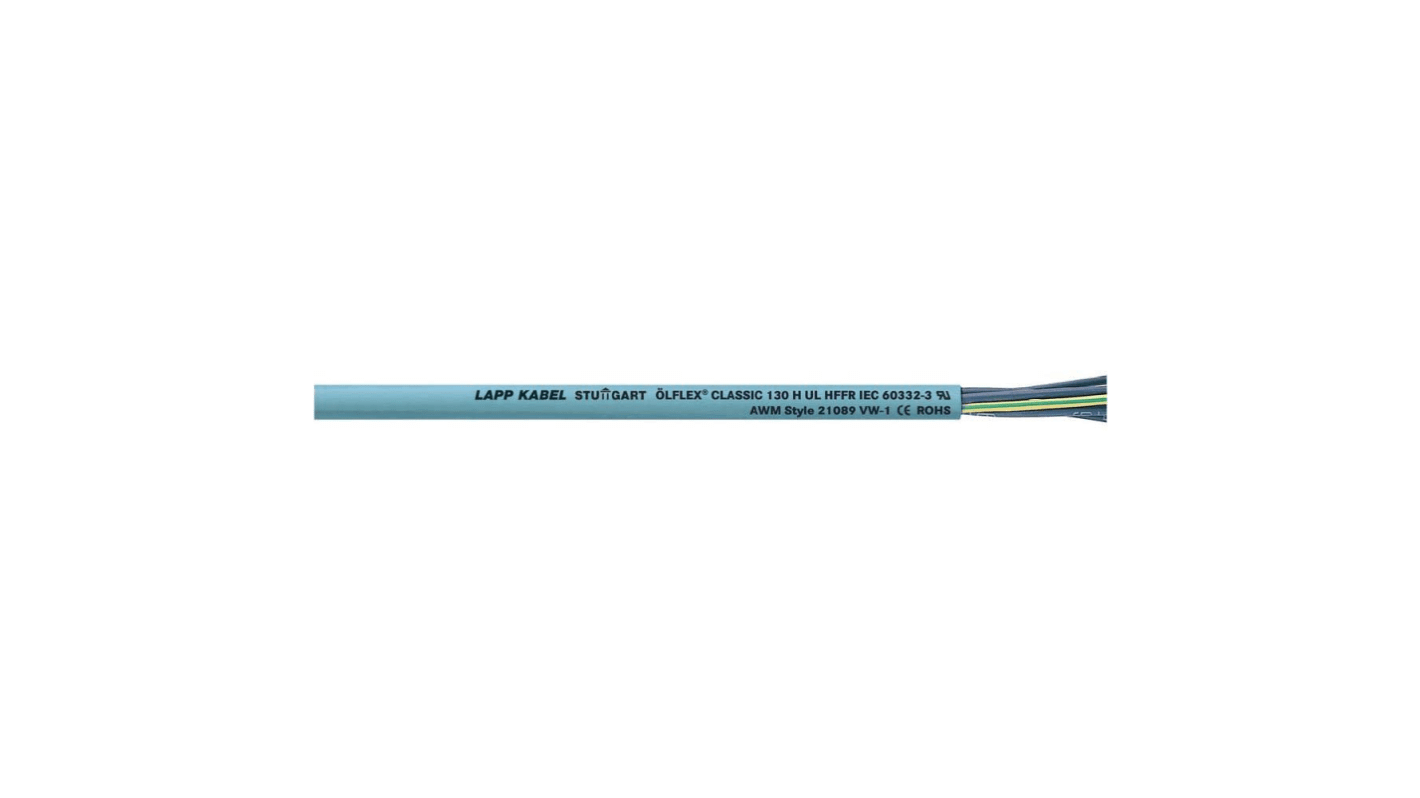

Lapp ÖLFLEX CLASSIC 130 Control Cable, 7 Cores, 2.5 mm², YY, Unscreened, 50m, Grey LSZH Sheath, 13 AWG

RS Stock No.:: 819-9612
Distrelec Article No.:: 300-49-531
Mfr. Part No.:: 1123146
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 130 Control Cable, 7 Cores, 2.5 mm², YY, Unscreened, 50m, Grey LSZH Sheath, 13 AWG

Subtotal (1 reel of 50 metres)*

£417.04

(exc. VAT)

£500.45

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

3 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£417.04	£8.341

*price indicative

RS Stock No.:: 819-9612
Distrelec Article No.:: 300-49-531
Mfr. Part No.:: 1123146
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 130
	Number of Cores	7
	Cross Sectional Area	2.5 mm²
	American Wire Gauge	13 AWG
	Conductor Material	Bare Copper
	Sheath Material	LSZH
	Sheath Colour	Grey
	Control Cable Type	YY
	Screen Type	Unscreened
	Screened/Unscreened	Unscreened
	Minimum Bend Radius	4 x Diameter
	Outer Diameter	11.2mm
	Length	50m
	Voltage Rating	500 V
	CPR Certification	Dca
	Standards Met	CE, RoHS, UL
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Cable Shape	Multicore
	Drain Wire	Yes
	Insulation Material	Zero Halogen
	Minimum Operating Temperature	-40°C

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 130
	Number of Cores 7
	Cross Sectional Area 2.5 mm²
	American Wire Gauge 13 AWG
	Conductor Material Bare Copper
	Sheath Material LSZH
	Sheath Colour Grey
	Control Cable Type YY
	Screen Type Unscreened
	Screened/Unscreened Unscreened
	Minimum Bend Radius 4 x Diameter
	Outer Diameter 11.2mm
	Length 50m
	Voltage Rating 500 V
	CPR Certification Dca
	Standards Met CE, RoHS, UL
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Cable Shape Multicore
	Drain Wire Yes
	Insulation Material Zero Halogen
	Minimum Operating Temperature -40°C

COO (Country of Origin):: DE

LAPP ÖLFLEX CLASSIC 130 Series Control Cable, 2.5mm² Cross Sectional Area, 7 Number Of Cores - 1123146

This control cable is designed for various industrial applications and excels in environments where fire hazards exist. It features a multicore configuration with seven cores, each with a cross-sectional area of 2.5mm². With a length of 50m and constructed from bare copper, it is optimised for flexibility and durability, making it a suitable choice for both fixed installations and occasional flexing.

Features & Benefits

• Flame retardant properties enhance safety and compliance
• Low smoke zero halogen materials minimise smoke generation
• Suitable for a voltage rating of 500V
• Unscreened design simplifies installation in various setups

Applications

• Utilised in public buildings such as airports and railways
• Suitable for industrial machinery and plant engineering
• Ideal for heating and air-conditioning systems
• Used in stage where fire safety is critical

How flexible is this cable, and what environments can it be used in?

The flexible design allows for easy handling and installation, making it suitable for various environments, including public buildings and industrial settings.

What temperature ranges can be expected for operation?

It operates effectively within a temperature range from -40°C to +80°C during fixed installations, accommodating diverse applications.

How does the cable's flame retardant feature benefit user safety?

It complies with stringent safety standards, reducing the risk of fire propagation, thus safeguarding human life and property.
