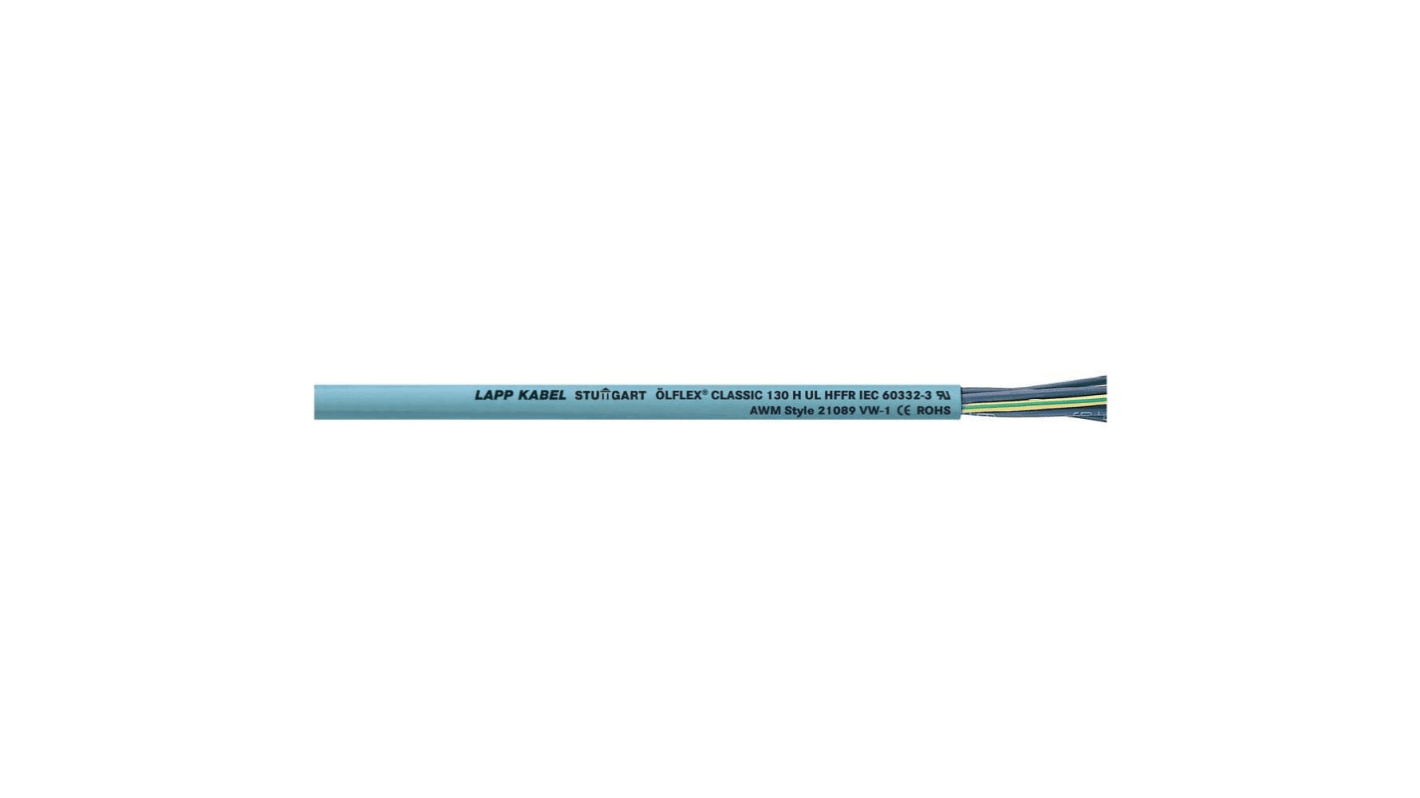

Lapp ÖLFLEX CLASSIC 130 Control Cable, 4 Cores, 2.5 mm², YY, Unscreened, 100m, Grey LSZH Sheath, 13 AWG

RS Stock No.:: 819-9600
Mfr. Part No.:: 1123142
Brand:: Lapp

Lapp ÖLFLEX CLASSIC 130 Control Cable, 4 Cores, 2.5 mm², YY, Unscreened, 100m, Grey LSZH Sheath, 13 AWG

Subtotal (1 reel of 100 metres)*

£480.78

(exc. VAT)

£576.94

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 1 unit(s) shipping from 30 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£480.78	£4.808

*price indicative

Shop our LAPP Glands

Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.

Shop here

RS Stock No.:: 819-9600
Mfr. Part No.:: 1123142
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC 130
	Number of Cores	4
	Cross Sectional Area	2.5 mm²
	American Wire Gauge	13 AWG
	Conductor Material	Bare Copper
	Sheath Material	LSZH
	Control Cable Type	YY
	Sheath Colour	Grey
	Screen Type	Unscreened
	Screened/Unscreened	Unscreened
	Minimum Bend Radius	4 x Diameter
	Outer Diameter	9mm
	Length	100m
	Voltage Rating	500 V
	CPR Certification	Dca
	Standards Met	CE, RoHS, UL
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Cable Shape	Multicore
	Insulation Material	Zero Halogen
	Drain Wire	Yes
	Minimum Operating Temperature	-40°C

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC 130
	Number of Cores 4
	Cross Sectional Area 2.5 mm²
	American Wire Gauge 13 AWG
	Conductor Material Bare Copper
	Sheath Material LSZH
	Control Cable Type YY
	Sheath Colour Grey
	Screen Type Unscreened
	Screened/Unscreened Unscreened
	Minimum Bend Radius 4 x Diameter
	Outer Diameter 9mm
	Length 100m
	Voltage Rating 500 V
	CPR Certification Dca
	Standards Met CE, RoHS, UL
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant, Low Smoke Zero Halogen (LSZH)
	Cable Shape Multicore
	Insulation Material Zero Halogen
	Drain Wire Yes
	Minimum Operating Temperature -40°C

COO (Country of Origin):: DE

LAPP ÖLFLEX CLASSIC 130 Series Control Cable, 4 Number Of Cores, 2.5 mm² Cross Sectional Area - 1123142

This control cable is designed for flexible applications in various environments. Featuring 4 cores with a cross-sectional area of 2.5 mm², it provides excellent performance for automation and electronics. The cable is unscreened and has a minimum operating temperature of -40°C, making it suitable for a wide range of tasks.

Features & Benefits

• Halogen-free insulation for enhanced safety
• Flame retardant to reduce fire spread
• Low smoke emission ensures safety during fires
• Bare copper conductors enhance conductivity
• Rated for 500V, suitable for industrial usage

Applications

• Utilised in public buildings such as train stations
• Ideal for installation in heating and air-conditioning systems
• Suitable for stage where fire risk is critical
• Effective in plant engineering and industrial machinery

How does the flame retardant feature benefit installations?

The flame retardant characteristic prevents the cable from igniting easily and limits the spread of flames, which is critical in protecting both life and property in high-risk environments. It complies with IEC standards for safety in potential fire scenarios.

What temperature range can this cable operate effectively?

It operates effectively within a temperature range of -40°C to +80°C, making it suitable for various industrial and outdoor applications where extreme conditions may be encountered.

What type of installation scenarios is this cable designed for?

It's designed for flexible installations in industrial environments, ensuring it can be used effectively both indoors and outdoors, including temporary setups.
