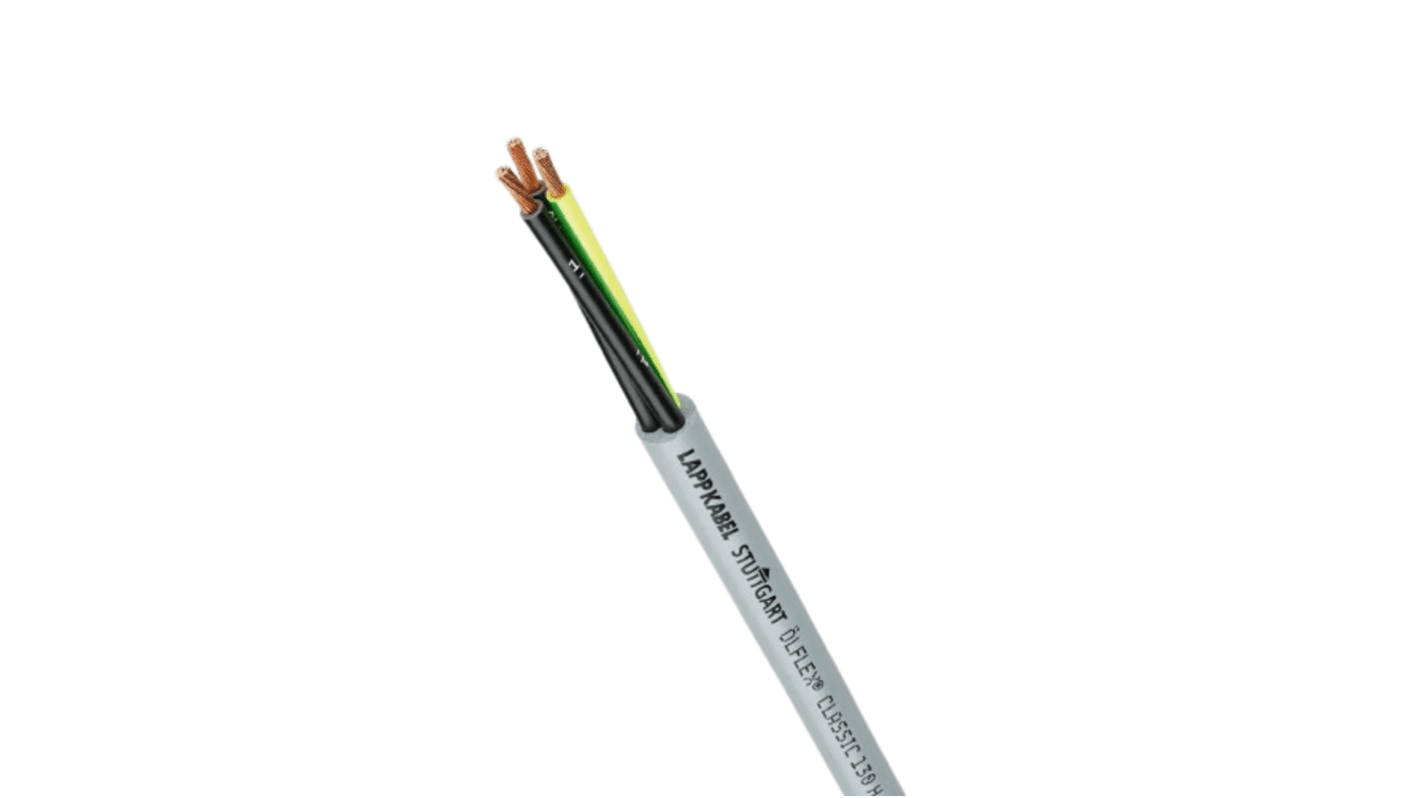

Lapp ÖLFLEX CLASSIC 130 H Control Cable, 5 Cores, 1 mm², YY, Unscreened, 50m, Grey LSZH Sheath, 17 AWG

View all Control Cable

Subtotal (1 reel of 50 metres)*

£145.37

(exc. VAT)

£174.44

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 6 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£145.37£2.907

*price indicative

RS Stock No.:
141-542
Distrelec Article No.:
304-10-291
Mfr. Part No.:
1123071
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Series

ÖLFLEX CLASSIC 130 H

Number of Cores

5

Cross Sectional Area

1 mm²

American Wire Gauge

17 AWG

Conductor Material

Copper

Sheath Material

LSZH

Sheath Colour

Grey

Control Cable Type

YY

Screened/Unscreened

Unscreened

Screen Type

Unscreened

Outer Diameter

7.2mm

Length

50m

Minimum Bend Radius

6 x Diameter

Voltage Rating

500 V

Standards Met

CE, RoHS, UL

CPR Certification

Dca

Maximum Operating Temperature

+80°C

Fire Behaviour

Flame Retardant, Low Smoke Zero Halogen (LSZH)

Insulation Material

Zero Halogen

Minimum Operating Temperature

-40°C

Drain Wire

Yes

COO (Country of Origin):
DE

LAPP ÖLFLEX CLASSIC 130 H Series Control Cable, 5 Cores, 1mm² Cross Sectional Area - 1123071


This control cable is a reliable choice for various automation and electrical applications. Designed from halogen-free materials, it features a grey sheath and is flexible for enhanced installation ease. This specific type offers five cores with a cross-sectional area of 1mm², making it ideal for intricate setups requiring a robust yet adaptable solution. The cable extends to 50m, with an outer diameter of 7.3mm for optimal manageability.

Features & Benefits


• Halogen-free design promotes safety in fire scenarios
• Unscreened configuration simplifies installations without EMI interference
• High-temperature rating ensures performance in extreme conditions
• Flexible design enables straightforward installation

Applications


• Suitable for use in public buildings such as airports and railway stations
• Applicable in industrial machinery and plant engineering
• Ideal for heating and air-conditioning system integrations
• Designed for stage where fire risks are prevalent

What is the maximum operating temperature of this cable?


The cable can withstand a maximum operating temperature of +80°C, making it suitable for high-temperature environments.

How does the halogen-free design benefit users?


A halogen-free design reduces toxic gas emissions in the event of a fire, enhancing safety, particularly in enclosed spaces such as public buildings.

What makes this cable suitable for installation in demanding conditions?


With its flexibility and cold resistance down to -40°C, it adapts well to various installation environments, ensuring consistent performance even in harsh climates.

What is the significance of the LSZH properties?


Low smoke zero halogen properties minimise smoke production and reduce corrosive gas emissions during combustion, which is crucial for safety in critical installations.
