STMicroelectronics Controller Evaluation Board STEVAL-CCC002V1 Evaluation Kit for Nucleo-F072RB, STUSB1600A

View this category
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
164-6935
Mfr. Part No.:
STEVAL-CCC002V1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Kit Classification

Evaluation Kit

For Use With

Nucleo-F072RB, STUSB1600A

Featured Device

STEVAL-CCC002V1

Kit Name

Controller Evaluation Board

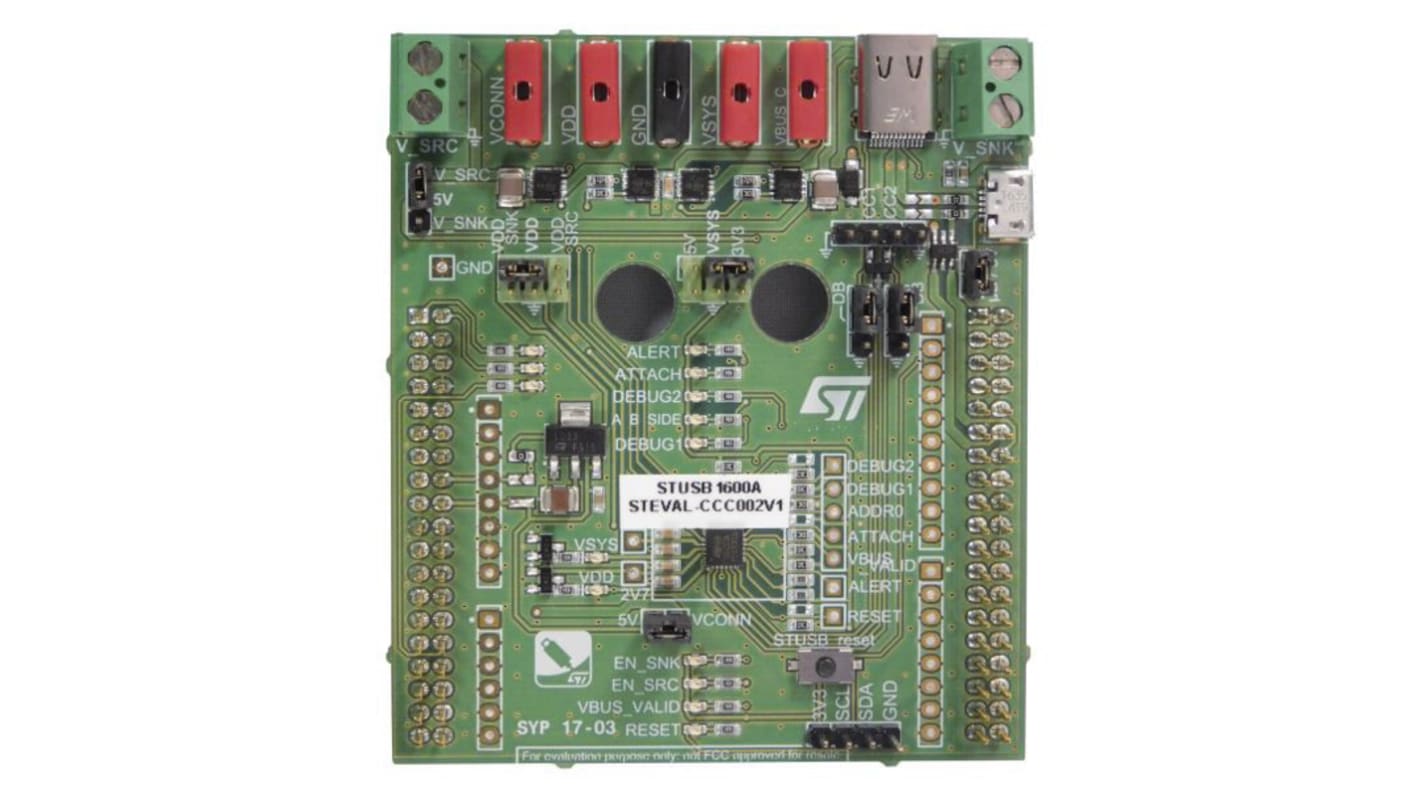

The STEVAL-CCC002V1 evaluation board lets you prototype a full-featured 5 V USB Type-C port with STUSB1600A, which can be configured in a source, sink or dual power role. Both source and sink VBUS power paths are enabled directly by the STUSB1600A according to the port power role configuration and the attached device. Jumpers are available to evaluate different power supply configurations for the STUSB1600A, based on the targeted application. The various LEDs indicate the operating status of the STUSB1600A and USB Type-C port.

1 full-featured USB Type-C port (Source/Sink/Dual-role)
STUSB1600A Type-C controller compliant with USB Type-C standard rel. 1.2 + ECR
VBUS power switches and discharge path
VCONN support (programmable current limit up to 600 mA)
Dead Battery mode support
Compatible with NUCLEO-F072RB board for configuration and debug interface
