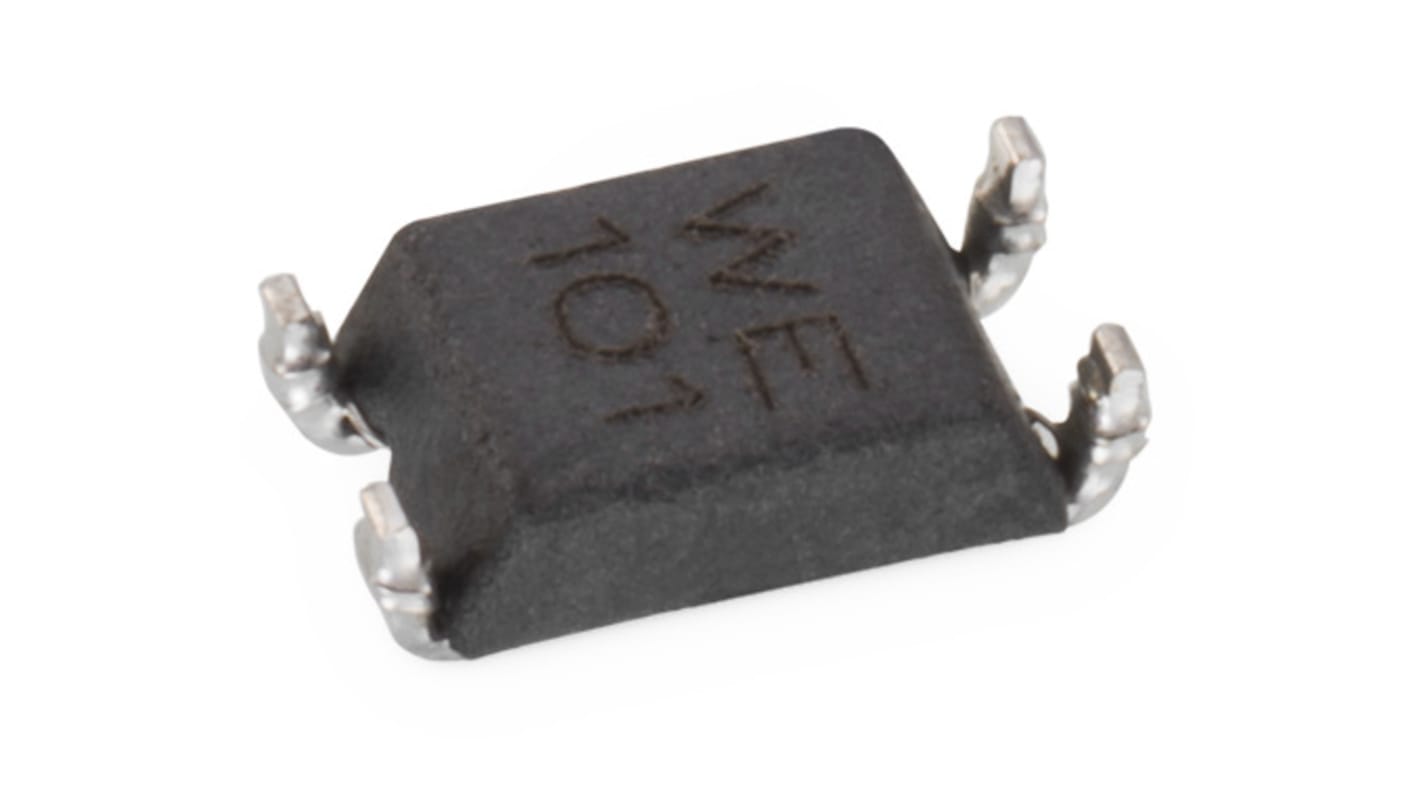

Wurth Elektronik 82 μH 300 mA Common mode filter 0.20Ω 80V
- RS Stock No.:
- 500-3155
- Mfr. Part No.:
- 744212820
- Brand:
- Wurth Elektronik
Available to back order for despatch 02/07/2024
Added
Price Each (In a Pack of 5)
£3.038
(exc. VAT)
£3.646
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £3.038 | £15.19 |
| 50 - 245 | £2.71 | £13.55 |
| 250 - 495 | £2.61 | £13.05 |
| 500 - 995 | £2.418 | £12.09 |
| 1000 + | £2.178 | £10.89 |
| *price indicative | ||
- RS Stock No.:
- 500-3155
- Mfr. Part No.:
- 744212820
- Brand:
- Wurth Elektronik
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Common Mode SMD Line Inductors, Type WE-SL1
4-way and 5-way SMD housing
Impedances up to 2000 Ω
Current rating up to 300 mA
low stray/leakage inductance
UL compliant housing (UL 94-VO)
Applications include CAN, USB, firewire, data and power lines
Impedances up to 2000 Ω
Current rating up to 300 mA
low stray/leakage inductance
UL compliant housing (UL 94-VO)
Applications include CAN, USB, firewire, data and power lines
Wurth SMD Common Mode Chokes
Specifications
Attribute | Value |
|---|---|
| Inductance | 82 μH |
| Series | WE-SL1 |
| Impedance | 440 Ω |
| Test Frequency | 100 KHz |
| DC Resistance | 0.20Ω |
| Maximum Current | 300 mA |
| Dimensions | 6.5 x 3.6 x 1.65mm |
| Operating Temperature Range | -40°C → +105°C |
| Mounting Type | Surface Mount |
| Voltage Rating | 80V |
| Termination Style | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Depth | 3.6mm |
| Height | 1.65mm |
| Length | 6.5mm |
| Maximum Operating Temperature | +105°C |
- RS Stock No.:
- 500-3155
- Mfr. Part No.:
- 744212820
- Brand:
- Wurth Elektronik
