Wurth Elektronik 51 μH 400 mA Common Mode Filter 0.32 Ω 80V
- RS Stock No.:
- 144-9852
- Mfr. Part No.:
- 744242510
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 500 units)*
£997.50
(exc. VAT)
£1,197.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,500 unit(s) shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £1.995 | £997.50 |
*price indicative
- RS Stock No.:
- 144-9852
- Mfr. Part No.:
- 744242510
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Common Mode Filter | |
| Inductance | 51μH | |
| Series | WE-SLM | |
| Maximum DC Current | 400mA | |
| Impedance | 2500Ω | |
| Core Material | Ferrite | |
| Test Frequency | 100kHz | |
| Packaging | Tape & Reel | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | No | |
| Choke Voltage | 80V | |
| Mount Type | Surface | |
| Inductance Tolerance | -30 to 50 % | |
| Maximum Self Resonant Frequency | 100kHz | |
| Depth | 3.3mm | |
| Standards/Approvals | REACH, RoHS | |
| Height | 3.3mm | |
| Termination Style | Surface Mount | |
| Maximum DC Resistance | 0.32Ω | |
| Length | 6mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Common Mode Filter | ||
Inductance 51μH | ||
Series WE-SLM | ||
Maximum DC Current 400mA | ||
Impedance 2500Ω | ||
Core Material Ferrite | ||
Test Frequency 100kHz | ||
Packaging Tape & Reel | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard No | ||
Choke Voltage 80V | ||
Mount Type Surface | ||
Inductance Tolerance -30 to 50 % | ||
Maximum Self Resonant Frequency 100kHz | ||
Depth 3.3mm | ||
Standards/Approvals REACH, RoHS | ||
Height 3.3mm | ||
Termination Style Surface Mount | ||
Maximum DC Resistance 0.32Ω | ||
Length 6mm | ||
- COO (Country of Origin):
- CN

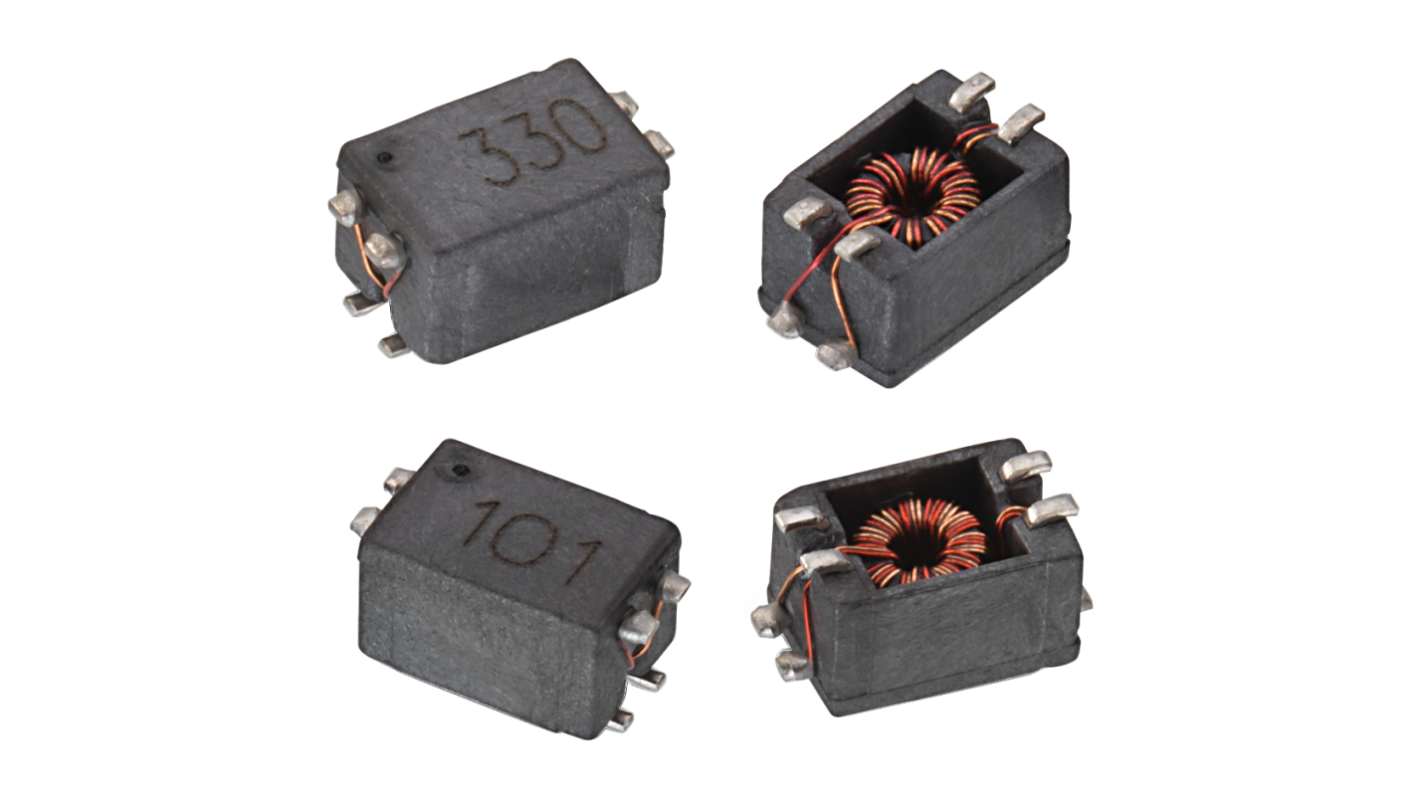

Wurth WE-SLM Series SMD Common Mode Chokes
High current capability up to 300 mA
Rated voltage: 80 VDC (42 VAC)
Operating temperature: –40°C to +125°C
Recommended for reflow soldering
Applications include, USB, CAN, FireWire, signal lines and sensor lines, power supply systems and data lines.
Wurth SMD Common Mode Chokes
