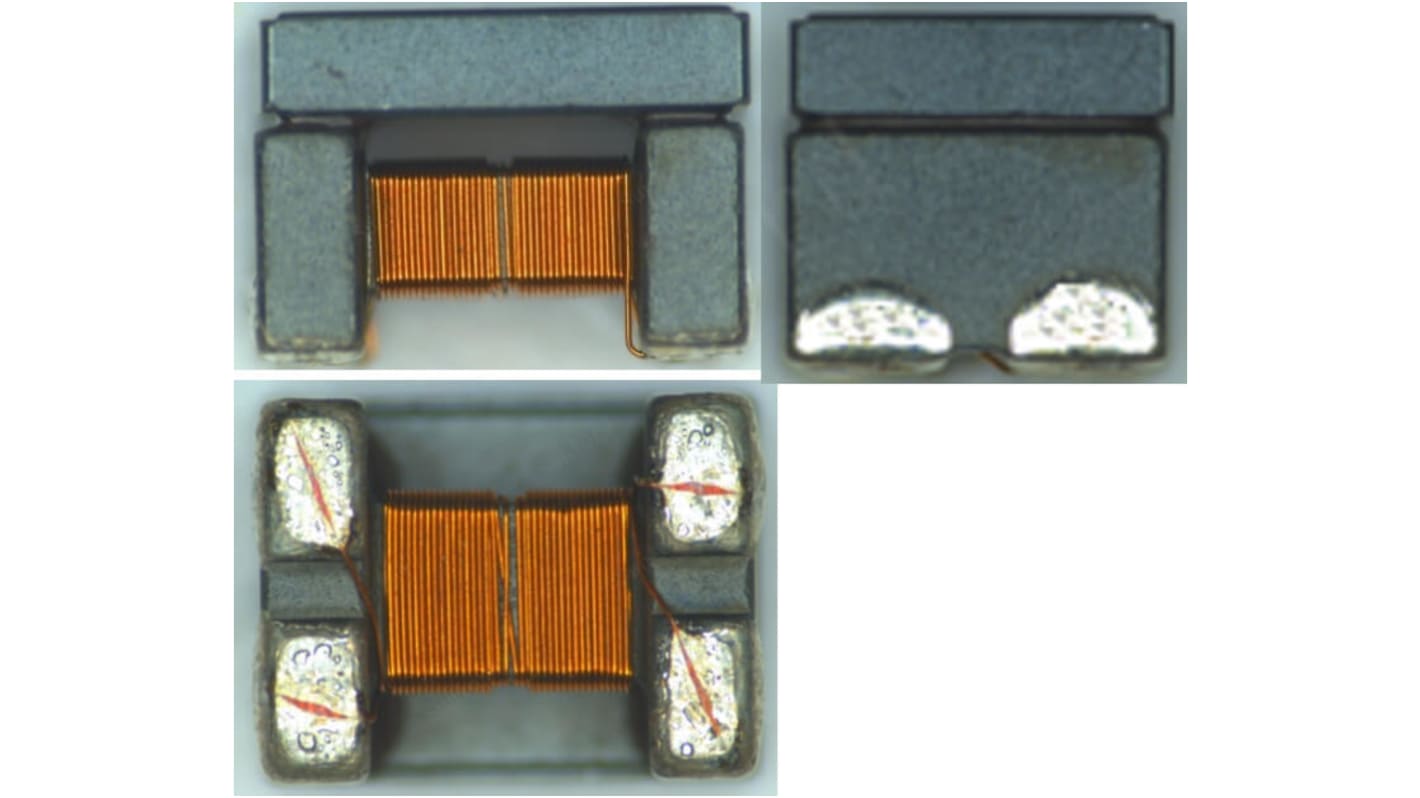

Abracon 200 μH 0.07 A Common Mode Choke 1500 mΩ 80V
- RS Stock No.:
- 245-0461
- Mfr. Part No.:
- ACMS-Q3225E-201-T
- Brand:
- Abracon
Subtotal (1 reel of 2000 units)*
£686.00
(exc. VAT)
£824.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.343 | £686.00 |
*price indicative
- RS Stock No.:
- 245-0461
- Mfr. Part No.:
- ACMS-Q3225E-201-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Inductance | 200μH | |
| Product Type | Common Mode Choke | |
| Series | ACMS | |
| Maximum DC Current | 0.07A | |
| Core Material | Nickel Zinc Ferrite | |
| Packaging | Tape and Reel | |
| Test Frequency | 100kHz | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | AEC-Q200 | |
| Choke Voltage | 80V | |
| Inductance Tolerance | -30 to 50 % | |
| Depth | 2.2mm | |
| Length | 3.2mm | |
| Height | 2.5mm | |
| Standards/Approvals | RoHS, RoHS II, MSL Level = 1, ISO9001-2015 Certified | |
| Maximum DC Resistance | 1500mΩ | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Inductance 200μH | ||
Product Type Common Mode Choke | ||
Series ACMS | ||
Maximum DC Current 0.07A | ||
Core Material Nickel Zinc Ferrite | ||
Packaging Tape and Reel | ||
Test Frequency 100kHz | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard AEC-Q200 | ||
Choke Voltage 80V | ||
Inductance Tolerance -30 to 50 % | ||
Depth 2.2mm | ||
Length 3.2mm | ||
Height 2.5mm | ||
Standards/Approvals RoHS, RoHS II, MSL Level = 1, ISO9001-2015 Certified | ||
Maximum DC Resistance 1500mΩ | ||
The Abracon is a Automotive Power Common Mode Chokes with Excellent impedance characteristics also used in Automotive applications such as ADAS,Infotainment, Sensing, TCU, Automotive CAN bus
Operating Temperature - -40°C to +125°C
Storage Temperature (on PCB)- -40°C to +125°C
