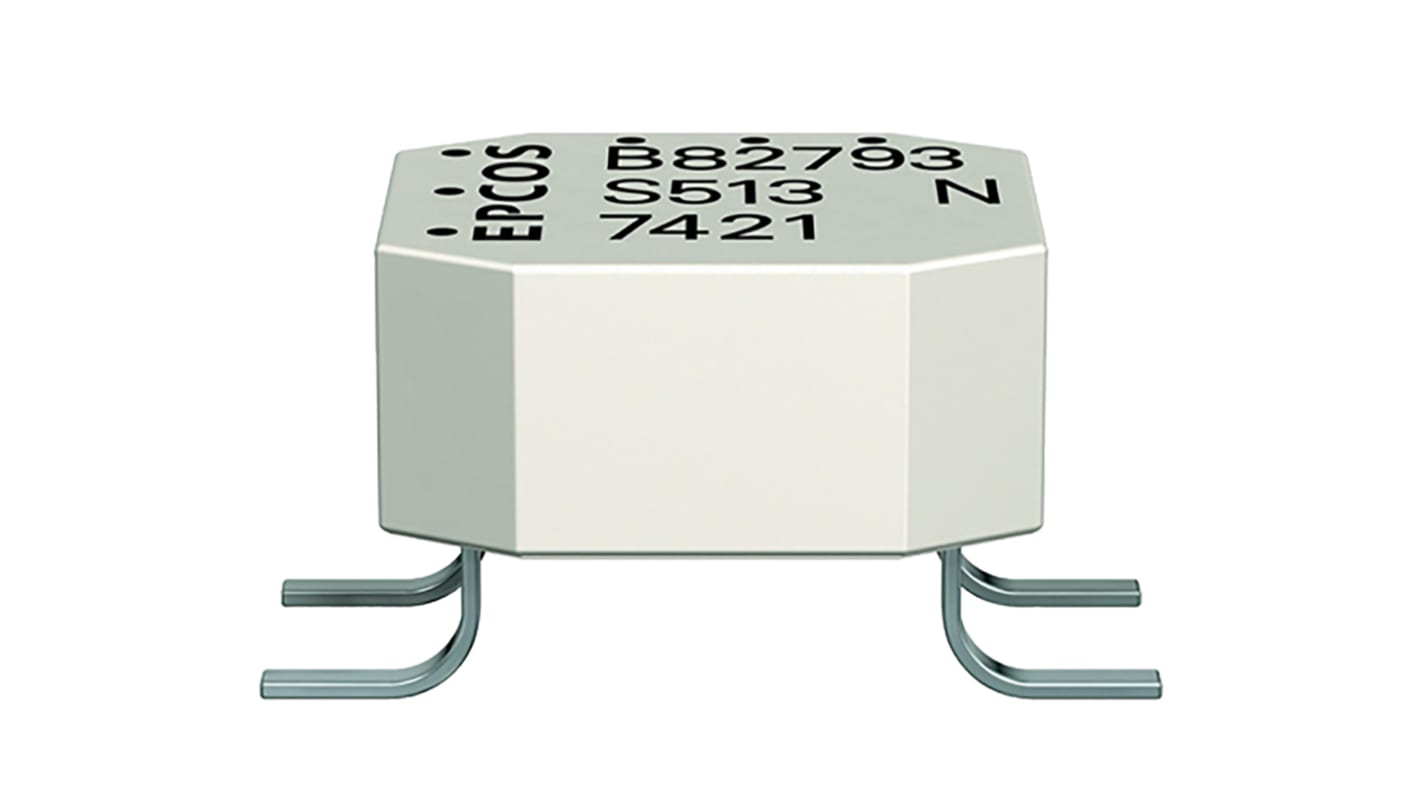

EPCOS 47 mH 100 mA Common Mode Choke 3.7Ω 42 V ac, 80 V dc
- RS Stock No.:
- 185-7562
- Mfr. Part No.:
- B82793C0476N265
- Brand:
- EPCOS
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 185-7562
- Mfr. Part No.:
- B82793C0476N265
- Brand:
- EPCOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 47 mH | |
| Series | B82793C0 | |
| Impedance | 24 kΩ | |
| Test Frequency | 50/60 Hz | |
| DC Resistance | 3.7Ω | |
| Maximum Current | 100 mA | |
| Dimensions | 7.1 x 6 x 4.8mm | |
| Operating Temperature Range | -40°C → +125°C | |
| Number of Lines | 1 | |
| Automotive Standard | AEC-Q200 | |
| Mounting Type | Surface Mount | |
| Voltage Rating | 42 V ac, 80 V dc | |
| Termination Style | Solder Pad | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
| Length | 7.1mm | |
| Depth | 6mm | |
| Height | 4.8mm | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 47 mH | ||
Series B82793C0 | ||
Impedance 24 kΩ | ||
Test Frequency 50/60 Hz | ||
DC Resistance 3.7Ω | ||
Maximum Current 100 mA | ||
Dimensions 7.1 x 6 x 4.8mm | ||
Operating Temperature Range -40°C → +125°C | ||
Number of Lines 1 | ||
Automotive Standard AEC-Q200 | ||
Mounting Type Surface Mount | ||
Voltage Rating 42 V ac, 80 V dc | ||
Termination Style Solder Pad | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Length 7.1mm | ||
Depth 6mm | ||
Height 4.8mm | ||
High rated currents, reduced components height
Suitable for reflow soldering
B82793C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly
B82793S0: Suppression of asymmetrical and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced
Applications
Automotive applications, e.g. CAN bus
Industrial applications
Types with LR > 4.7 mH only for telecom applications
Suitable for reflow soldering
B82793C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly
B82793S0: Suppression of asymmetrical and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced
Applications
Automotive applications, e.g. CAN bus
Industrial applications
Types with LR > 4.7 mH only for telecom applications
