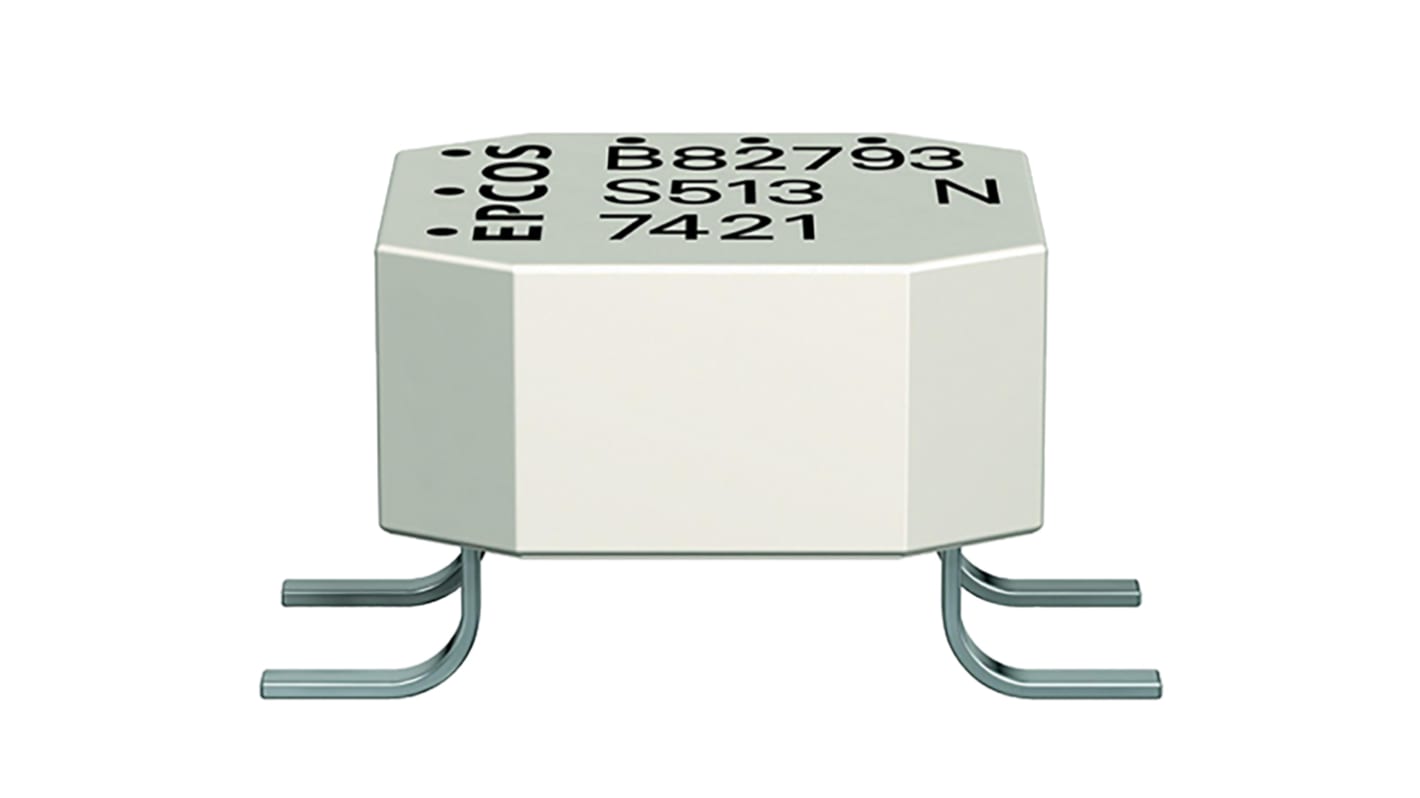

EPCOS 2.2 mH 500 mA Common Mode Choke 400mΩ 42 V ac, 80 V dc
- RS Stock No.:
- 185-7561
- Mfr. Part No.:
- B82793C0225N265
- Brand:
- EPCOS
Available to back order for despatch 29/10/2024
Added
Price Each (On a Reel of 1500)
£0.792
(exc. VAT)
£0.95
(inc. VAT)
| Units | Per unit | Per Reel* |
| 1500 + | £0.792 | £1,188.00 |
| *price indicative | ||
- RS Stock No.:
- 185-7561
- Mfr. Part No.:
- B82793C0225N265
- Brand:
- EPCOS
Technical Reference
Legislation and Compliance
Product Details
High rated currents, reduced components height
Suitable for reflow soldering
B82793C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly
B82793S0: Suppression of asymmetrical and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced
Applications
Automotive applications, e.g. CAN bus
Industrial applications
Types with LR > 4.7 mH only for telecom applications
Suitable for reflow soldering
B82793C0: Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly
B82793S0: Suppression of asymmetrical and symmetrical interference (by Lstray) coupled in on lines. The high-frequency portions of the symmetrical data signal are decreased so far that EMC problems can be significantly reduced
Applications
Automotive applications, e.g. CAN bus
Industrial applications
Types with LR > 4.7 mH only for telecom applications
Specifications
Attribute | Value |
|---|---|
| Inductance | 2.2 mH |
| Series | B82793C0 |
| Impedance | 3.4 kΩ |
| Test Frequency | 50/60 Hz |
| DC Resistance | 400mΩ |
| Maximum Current | 500 mA |
| Dimensions | 7.1 x 6 x 4.8mm |
| Operating Temperature Range | -40°C → +125°C |
| Number of Lines | 1 |
| Automotive Standard | AEC-Q200 |
| Mounting Type | Surface Mount |
| Voltage Rating | 42 V ac, 80 V dc |
| Termination Style | Solder Pad |
| Length | 7.1mm |
| Minimum Operating Temperature | -40°C |
| Height | 4.8mm |
| Maximum Operating Temperature | +125°C |
| Depth | 6mm |
