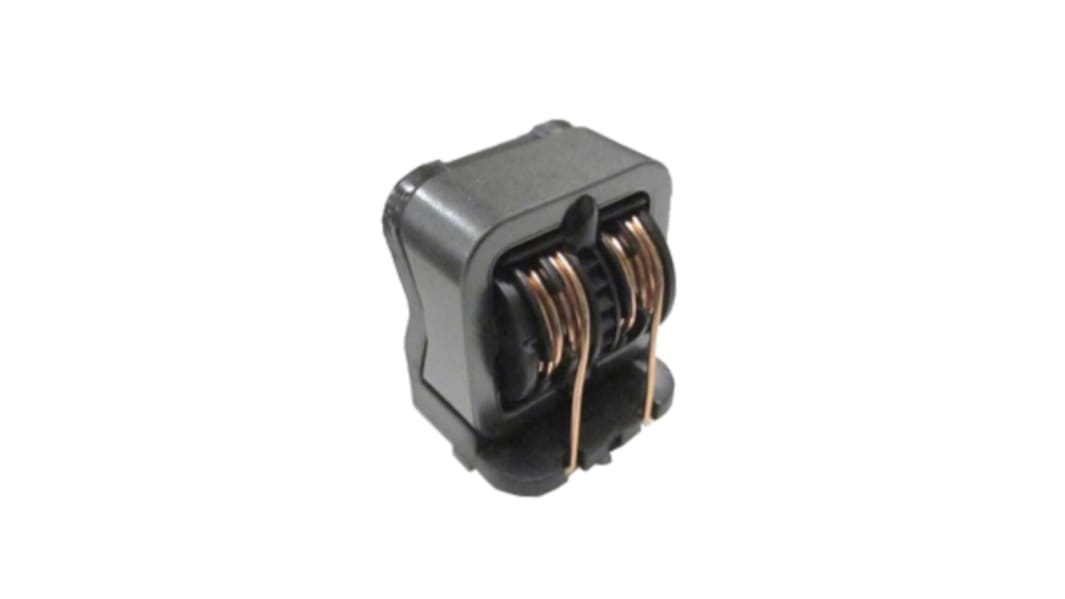

KEMET 5.9 mH 4 A Common Mode Choke 0.055 Ω 250 V ac
- RS Stock No.:
- 183-6909
- Mfr. Part No.:
- SSRH24NHS-40059
- Brand:
- KEMET
Bulk discount available
Subtotal (1 unit)*
£2.19
(exc. VAT)
£2.63
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £2.19 |
| 25 - 49 | £2.06 |
| 50 - 99 | £1.92 |
| 100 - 249 | £1.80 |
| 250 + | £1.62 |
*price indicative
- RS Stock No.:
- 183-6909
- Mfr. Part No.:
- SSRH24NHS-40059
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Common Mode Choke | |
| Inductance | 5.9 mH | |
| Series | SSRH | |
| Maximum DC Current | 4A | |
| Test Frequency | 10 kHz | |
| Packaging | Tray | |
| Maximum Operating Temperature | 120°C | |
| Minimum Operating Temperature | -25°C | |
| Number of Lines | 2 | |
| Automotive Standard | No | |
| Choke Voltage | 250 V ac | |
| Mount Type | Through Hole | |
| Height | 18mm | |
| Maximum DC Resistance | 0.055Ω | |
| Depth | 25.5mm | |
| Termination Style | Solder Pad | |
| Length | 25.5mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Common Mode Choke | ||
Inductance 5.9 mH | ||
Series SSRH | ||
Maximum DC Current 4A | ||
Test Frequency 10 kHz | ||
Packaging Tray | ||
Maximum Operating Temperature 120°C | ||
Minimum Operating Temperature -25°C | ||
Number of Lines 2 | ||
Automotive Standard No | ||
Choke Voltage 250 V ac | ||
Mount Type Through Hole | ||
Height 18mm | ||
Maximum DC Resistance 0.055Ω | ||
Depth 25.5mm | ||
Termination Style Solder Pad | ||
Length 25.5mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- VN
The KEMET SSRH24NV/NH coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S18H cores and are useful in various noise counter measurefields. The optimized core shape and product structure is ideal for demanding compact applications where large inductance is required.
Proprietary S18H ferrite material
High permeability
High impedance in wide frequency range due to divided bobbin
Expanded current range up to 5A
Compact size and light weight
Operating temperature range from −25°C to +120°C
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
