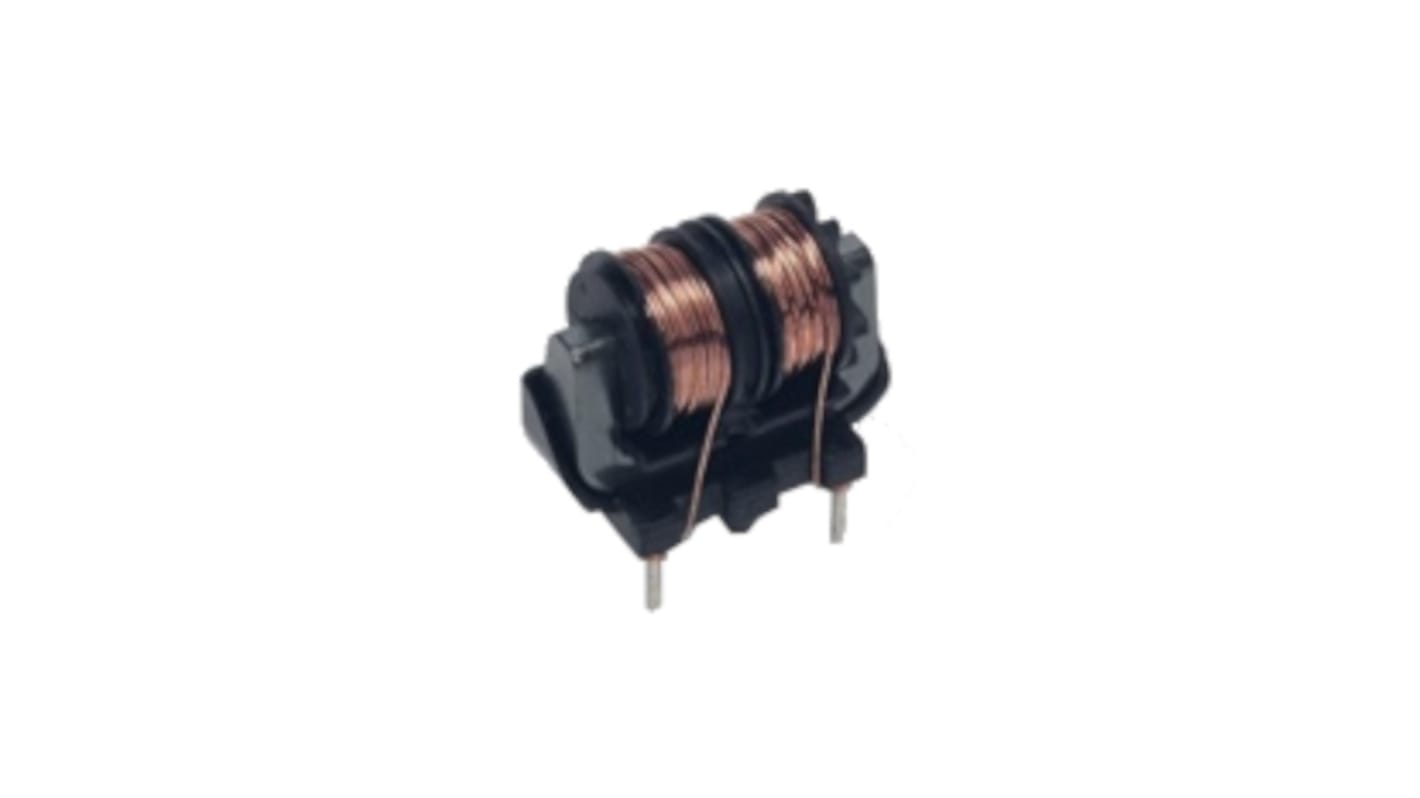

KEMET 5.8 mH 1.7 A Common Mode Choke 0.18 Ω 250 V ac
- RS Stock No.:
- 183-6641
- Mfr. Part No.:
- SSR10V-17058
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.55
(exc. VAT)
£9.05
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 May 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £1.51 | £7.55 |
| 25 - 45 | £1.356 | £6.78 |
| 50 + | £1.244 | £6.22 |
*price indicative
- RS Stock No.:
- 183-6641
- Mfr. Part No.:
- SSR10V-17058
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Inductance | 5.8 mH | |
| Product Type | Common Mode Choke | |
| Maximum DC Current | 1.7A | |
| Series | SSR10V | |
| Core Material | Manganese Zinc Ferrite | |
| Test Frequency | 10 kHz | |
| Packaging | Tray | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 120°C | |
| Number of Lines | 2 | |
| Automotive Standard | No | |
| Mount Type | Through Hole | |
| Choke Voltage | 250 V ac | |
| Depth | 13mm | |
| Height | 21mm | |
| Maximum DC Resistance | 0.18Ω | |
| Termination Style | Solder Pad | |
| Length | 23.5mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Inductance 5.8 mH | ||
Product Type Common Mode Choke | ||
Maximum DC Current 1.7A | ||
Series SSR10V | ||
Core Material Manganese Zinc Ferrite | ||
Test Frequency 10 kHz | ||
Packaging Tray | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 120°C | ||
Number of Lines 2 | ||
Automotive Standard No | ||
Mount Type Through Hole | ||
Choke Voltage 250 V ac | ||
Depth 13mm | ||
Height 21mm | ||
Maximum DC Resistance 0.18Ω | ||
Termination Style Solder Pad | ||
Length 23.5mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- VN
The KEMET SSR coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S15H cores and are useful in various noise countermeasure fields.
Proprietary S15H ferrite material
High permeability
High impedance in wide frequency range due to divided bobbin
Compact size, low profile, and lightweight
Operating temperature range from −25°C to +120°C
Flame retardant base and bobbin
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
